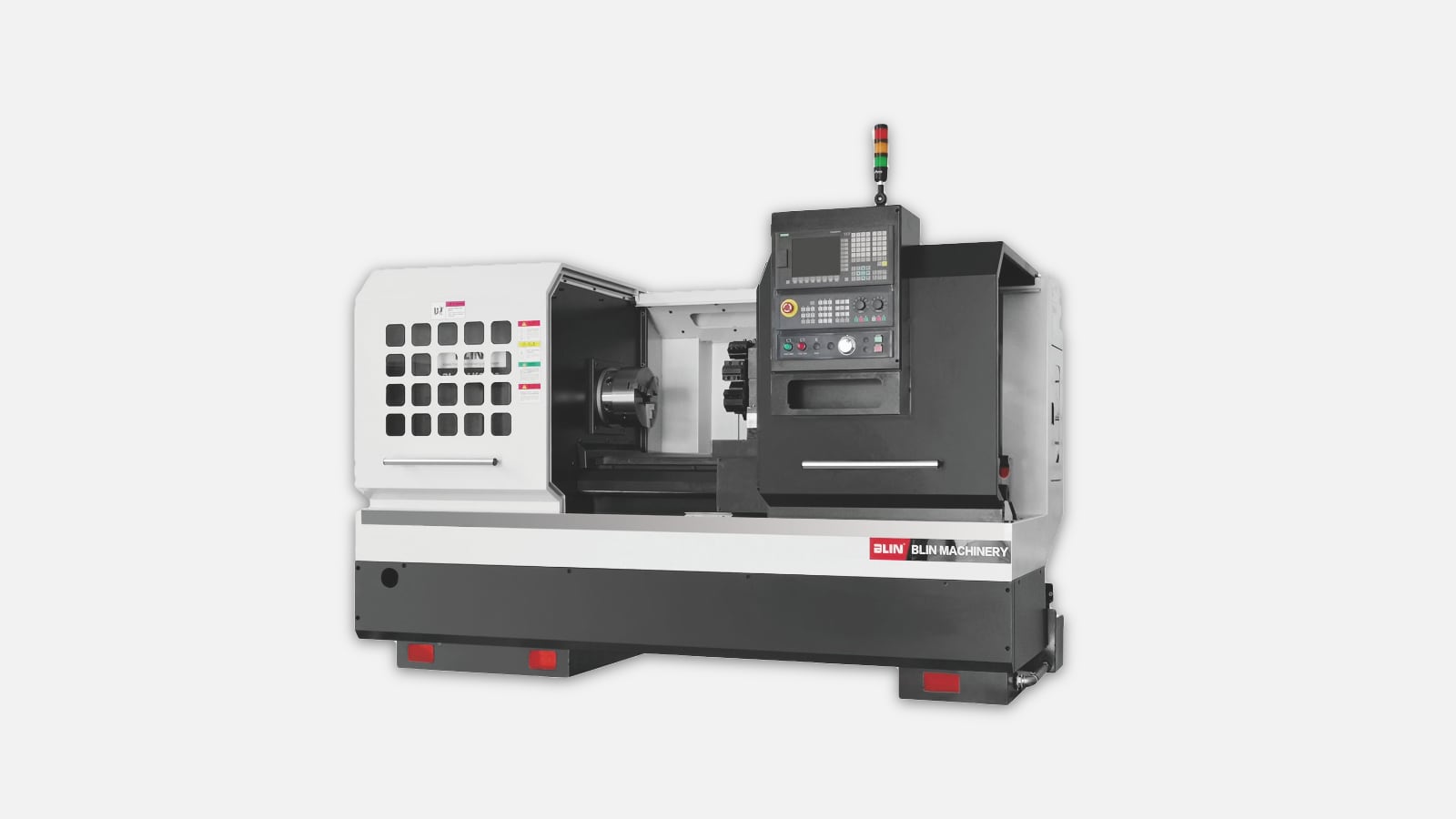

BLIN standard series BL-CAK lathes

BLIN lathes with a flat bed. Models: BL-CAK6140, BL-CAK6150, BL-CAK6161, BL-CAK6166, BL-CAK6180.

Width of bed CAK6140400 mm
Distance above the bed400 mm
Distance above the saddle210 mm
Maximum turning length750/1000/1500/2000/3000 mm
Maximum weight300 kg
Spindle speed100-1600 rpm
Spindle taper52(80/100 option) mm
Chuck8"/10"
Spindle motor power7.5 kW
Number of tools4/6.8*
Tool shank25×25 mm
TailstockMT5#
Finishing accuracy of EX-circleIT6
Roundness in finishing≤0.003 mm
Positioning accuracy (X/Z)0.008/0.008 mm
Repeatability of positioning accuracy (X/Z)0.004/0.004 mm
Surface roughness of finishingRa1.6 mm
Weight2100/2200/2300/2700/3500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-CAK lathe models from the manufacturer BLIN are an excellent solution for working with various materials. The machine features high precision and operational stability, which allows for the production of high-quality products.

The BL-CAK is equipped with a high-power spindle drive that ensures fast and accurate milling with minimal vibration. The machines have a large processing surface area, allowing for work with products of different sizes.

Equipped with a quick tool change system, the BL-CAK allows for rapid exchange of mills and other tooling equipment, significantly enhancing work efficiency. The machine also has a cooling system that helps prevent overheating and extends tool life.

The BL-CAK features a quality control system that provides easy access to various settings, enabling quick and simple adjustments of the machine for specific tasks. It offers user-friendly controls, making it easy to operate.

Overall, the BL-CAK model from BLIN is an excellent choice for those seeking a high-quality and reliable lathe. It possesses all the necessary features and characteristics to ensure effective work with various materials.

Width of bed CAK6140400 mm
Distance above the bed400 mm
Distance above the saddle210 mm
Maximum turning length750/1000/1500/2000/3000 mm
Maximum weight300 kg
Spindle speed100-1600 rpm
Spindle taper52(80/100 option) mm
Chuck8"/10"
Spindle motor power7.5 kW
Number of tools4/6.8*
Tool shank25×25 mm
TailstockMT5#
Finishing accuracy of EX-circleIT6
Roundness in finishing≤0.003 mm
Positioning accuracy (X/Z)0.008/0.008 mm
Repeatability of positioning accuracy (X/Z)0.004/0.004 mm
Surface roughness of finishingRa1.6 mm
Weight2100/2200/2300/2700/3500 kg
Design Features

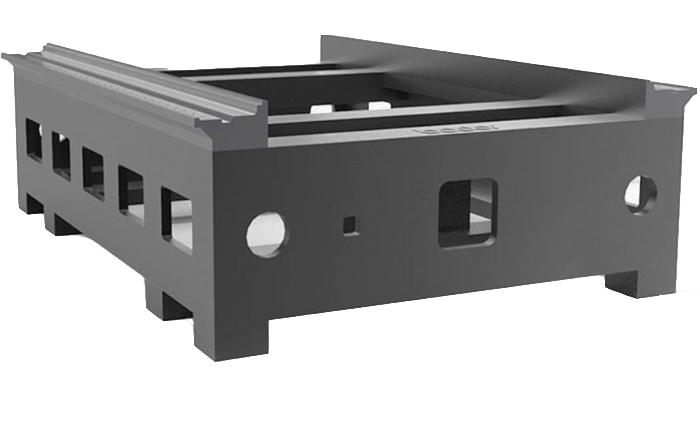

Monoblock bed
The machine has a monolithic bed that provides high rigidity of the machine's structure. Lathes with a straight bed for simple machining.

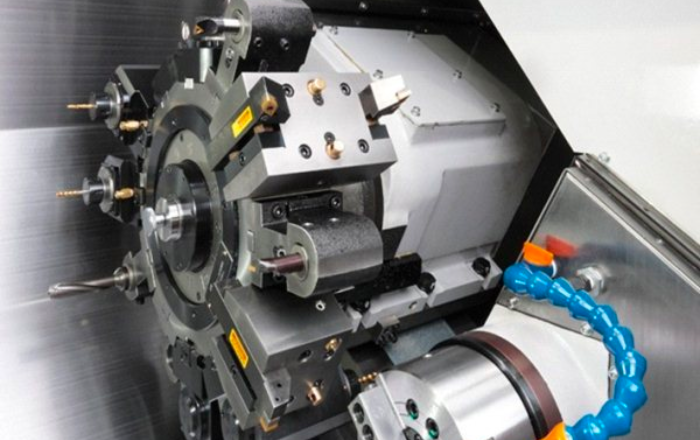

Turret head
4-position turret for quick processing of parts.
Basic equipment
CNC system Siemens
Additional options
Coolant supply system
Manual tailstock
Manual chuck
Automatic lubrication system
Working area lighting
Servo motors and drives on X/Z axes
Tool set
CNC system Fanuc/GSK
Hydraulic chuck and tailstock
Air conditioner for electrical cabinet
Increased spindle hole
Turret head for 6/8/12 tools
Door opening sensor
Bar feeder
Increased power
