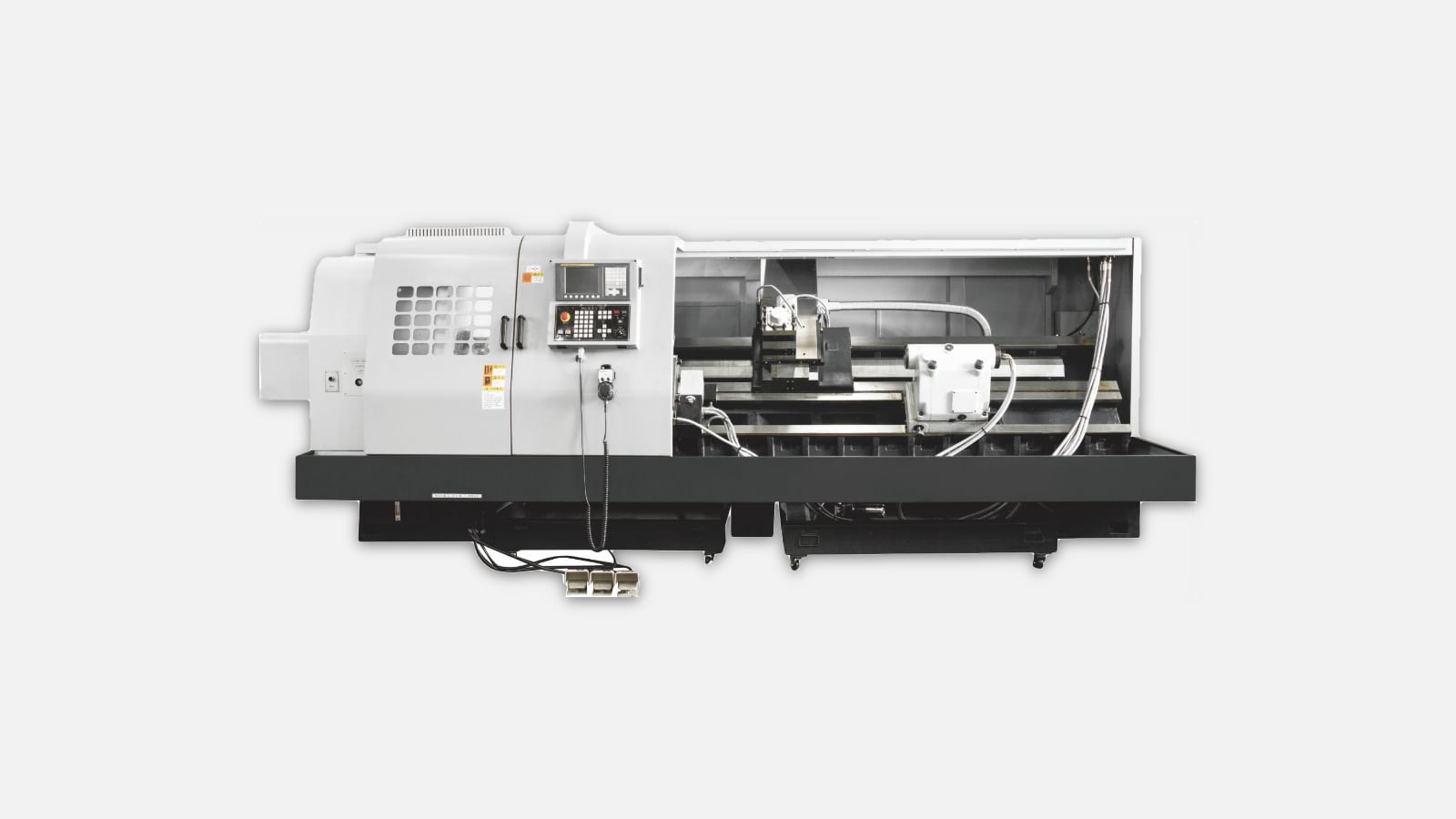

Lathe with Inclined Bed BLIN BL-CBK50CBK63

Lathe with inclined bed BLIN BL-CBK50CBK63.

Spindle hole diameter82 mm
Spindle taperA2-8
Spindle speedH:162~1620 RPM; M:66~660; L:21~210 RPM
Spindle motor7.5 kW
X-axis travel255 mm
Z-axis travel1000 mm
Outer diameter of ball screw for X/Z axesØ32/Ø40
Lead of ball screw for X/Z axes5/6 mm
Type of tailstockManual tailstock
Tailstock quill taperMT5
Quill travel of tailstock100 mm
Positioning accuracy for X/Z axes0.026/0.036 mm
Positioning repeatability for X/Z axes0.01/0.013 mm
Parameters3120x1900x1910 mm
Weight3800 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-CBK50 63 is a powerful lathe machine designed by the Chinese manufacturer BLIN for professional use across various industries. It features high precision and reliability, making it an ideal tool for machining a variety of materials, including metal, wood, plastic, and others.

One of the main advantages of the BL-CBK50 63 is its high spindle speed, which reaches up to 12,000 revolutions per minute. This allows for quick and efficient processing of large volumes of materials, reducing production time and increasing productivity.

The BL-CBK50 63 lathe has a large work table and high structural rigidity, ensuring stability and accuracy during material processing. It is also equipped with an automatic lubrication system, which reduces wear on components and extends the machine’s lifespan.

This series of lathes also features a user-friendly control system that allows for quick switching between different operating modes and processing programs. This simplifies the work process and enhances the efficiency of the machine’s use.

Overall, the BL-CBK50 63 lathe is a reliable and high-tech tool suitable for professional use in various industrial sectors. It boasts high performance, precision, and reliability, making it an excellent choice for any manufacturing enterprise.

Spindle hole diameter82 mm
Spindle taperA2-8
Spindle speedH:162~1620 RPM; M:66~660; L:21~210 RPM
Spindle motor7.5 kW
X-axis travel255 mm
Z-axis travel1000 mm
Outer diameter of ball screw for X/Z axesØ32/Ø40
Lead of ball screw for X/Z axes5/6 mm
Type of tailstockManual tailstock
Tailstock quill taperMT5
Quill travel of tailstock100 mm
Positioning accuracy for X/Z axes0.026/0.036 mm
Positioning repeatability for X/Z axes0.01/0.013 mm
Parameters3120x1900x1910 mm
Weight3800 kg
Design Features
Working area
Maximum processing Ø over the bed - 500 mm. Maximum Ø of the workpiece installed over the saddle - 350 mm. Angle of inclination 45°. Maximum processing length - 1050 mm. Maximum processing Ø - 420 mm. Maximum weight of the workpiece - 700 kg.

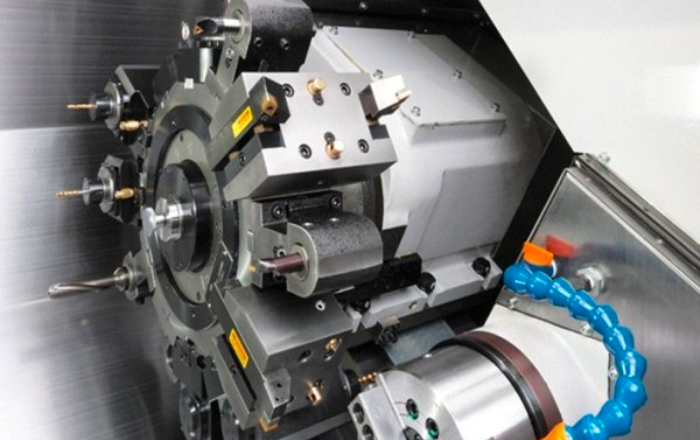

Turret head
The turret head has a vertical 4-position type. Holder section - 25x25 mm.
CNC System
In the standard configuration, the CNC system is represented by FANUC 0I TF.
Clamping Device
The clamping device is a 10" manual chuck.
