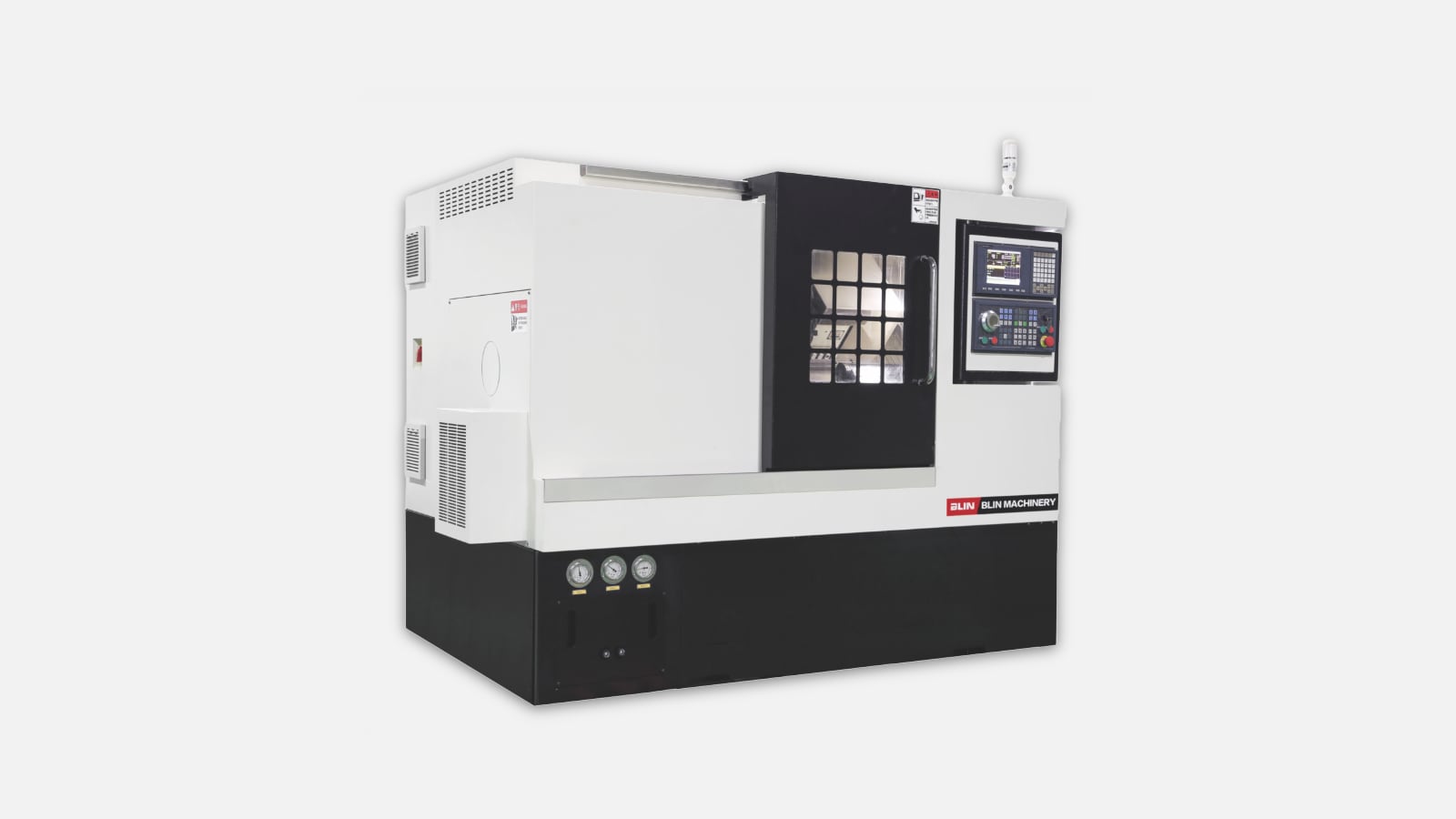

Lathe with Inclined Bed BL-H40L BLIN

Standard series BL-H40L lathe for heavy machining.

Chuck6"/8"
Distance above bed410 mm
Distance above carriage230 mm
Maximum turning length400 mm
Maximum turning diameter300 mm
Maximum rod diameter44 mm
Spindle speed4000 RPM
Spindle taperA2-5
Spindle holes56 mm
Spindle motor power7.5 kW
Rapid traverse in X/Z axes30/30 m/min
Movement in X/Z axes180/400 mm
Tool system type10-position turret
Tool holder25x25,32 mm
TaperMT4
Quill stroke350 mm
Positioning accuracy0.005 mm
Repeatability0.003 mm
Parameters2300x1500x1700 mm
Weight2800 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-H40L is a high-precision lathe machine developed by BLIN. It is equipped with advanced technology and is capable of machining various materials, including metals, plastics, and wood. This machine is ideal for use in many industries, including manufacturing, machining, and scientific research.

It features a rigid and durable construction that ensures high accuracy and stability during machining. With the use of high-quality components, such as guides, spindle, and motor, the machine provides a long service life and reliability in operation.

The BL-H40L has a large table size that allows for the machining of large parts. It is also equipped with various features, such as an automatic tool changer, cooling system, and temperature control sensors, which enhance efficiency and precision in operation.

This machine is easy to operate and set up using a control panel that allows users to select different operating modes and adjust machining parameters according to project requirements. With its performance and reliability, the BL-H40L is an excellent choice for professionals seeking a high-quality lathe machine.

Chuck6"/8"
Distance above bed410 mm
Distance above carriage230 mm
Maximum turning length400 mm
Maximum turning diameter300 mm
Maximum rod diameter44 mm
Spindle speed4000 RPM
Spindle taperA2-5
Spindle holes56 mm
Spindle motor power7.5 kW
Rapid traverse in X/Z axes30/30 m/min
Movement in X/Z axes180/400 mm
Tool system type10-position turret
Tool holder25x25,32 mm
TaperMT4
Quill stroke350 mm
Positioning accuracy0.005 mm
Repeatability0.003 mm
Parameters2300x1500x1700 mm
Weight2800 kg
Design Features
Configuration
H50L - standard machine configuration in basic equipment with an 8-position turret head with increased machining length. H50LC - machine with C-axis and driven tool turret head for 12 BMT tools. With increased machining length.

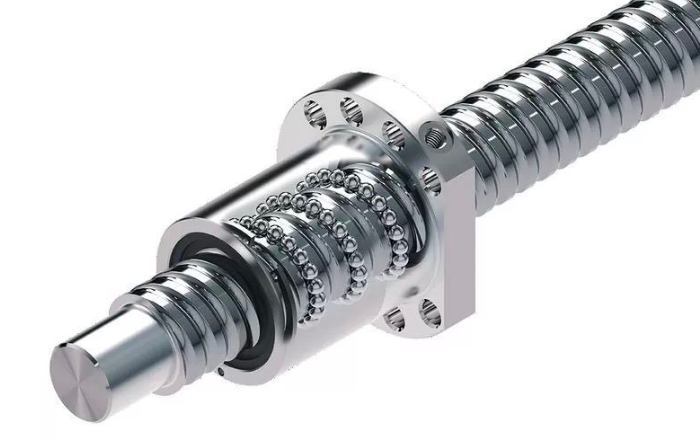

Ball Screw
The use of high-precision ball screws ensures good rigidity and high accuracy of the machine.
Standard equipment
Siemens CNC system. Hydraulic chuck. Tool turret head. Hydraulic tailstock. Automatic lubrication system. Working area lighting. Full cabinet protection.
Additional options
Fanuc/GSK CNC system. Increased power. Bar feeder. Door open sensor. Tool setup sensor. Chip conveyor.
