Precision Lathes Series BL-HK63B and 80B BLIN

Lathes with a straight bed of the precision series BL-HK. Models BL-HK63B, BL-HK80B, BL-HK80, BL-HK100.

Bed width560 mm
Distance over bed630 mm
Distance over carriage360 mm
Maximum turning length1000/1500/2000/3000 mm
Spindle speed20-1120/3-step manual switch rev/min
Spindle taperA1-11
Spindle bore105 mm
Chuck315 mm
Spindle motor power11 kW
Rapid travel on X/Z axes6/7 m/min
Travel on X axis370 mm
Travel on Z axis760/1310/1810/2810 mm
Tool holder32x32 mm
TailstockMT5#
Diameter of tailstock quill100 mm
Parameters3550/4000/4500/5600×2000×1850 mm
Weight4600/5100/5600/6100 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-HK63B (80, 80B, 100) is a high-tech lathe designed for use in various industrial sectors. It features a powerful motor and a sturdy construction, making it reliable and durable.

Additionally, this machine has a wide range of speeds and can work with various materials such as metal, wood, plastic, and more. It is ideal for machining large and complex parts due to its spacious work tables.

BL-HK63B (80, 80B, 100) also offers high precision and repeatability, allowing for quality results in part processing. Its user-friendly and intuitive controls make it easy to set the machine to the required parameters for each specific task.

These lathes are equipped with modern technologies and innovative features, such as automatic tool feed systems and depth control. This significantly enhances the productivity and efficiency of the machine’s operation.

Moreover, this machine is easy to maintain and has a high level of safety, making it an ideal choice for many businesses and manufacturing facilities. If you are looking for a high-tech and reliable lathe for your business, then the BL-HK63B (80, 80B, 100) is an excellent choice for you.

Bed width560 mm
Distance over bed630 mm
Distance over carriage360 mm
Maximum turning length1000/1500/2000/3000 mm
Spindle speed20-1120/3-step manual switch rev/min
Spindle taperA1-11
Spindle bore105 mm
Chuck315 mm
Spindle motor power11 kW
Rapid travel on X/Z axes6/7 m/min
Travel on X axis370 mm
Travel on Z axis760/1310/1810/2810 mm
Tool holder32x32 mm
TailstockMT5#
Diameter of tailstock quill100 mm
Parameters3550/4000/4500/5600×2000×1850 mm
Weight4600/5100/5600/6100 kg
Design Features

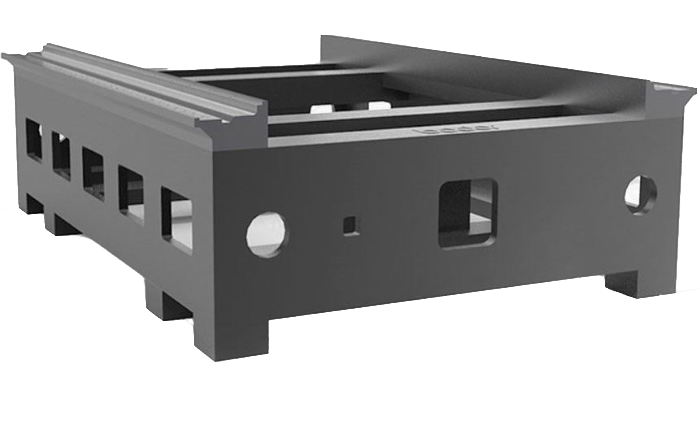

Base
In all models of the precision series BL-HK, there is a cast iron base, which has increased rigidity.

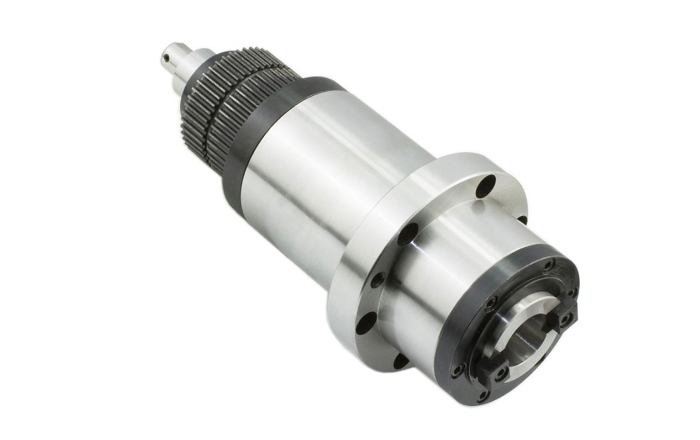

Spindles
Additionally, machines in this series feature built-in gearboxes on the spindles for heavier operating modes.
Standard configuration
Fanuc CNC system. Manual 3-jaw chuck. 4-position turret head. Manual tailstock. Automatic lubrication system. Coolant supply system. Work area lighting. Servo motors and drives on X/Z axes.
Additional options
Siemens CNC system. Increased power. Hydraulic chuck. 6-position turret head. Hydraulic tailstock. Movable steady rest. Fixed steady rest. Chip conveyor.
