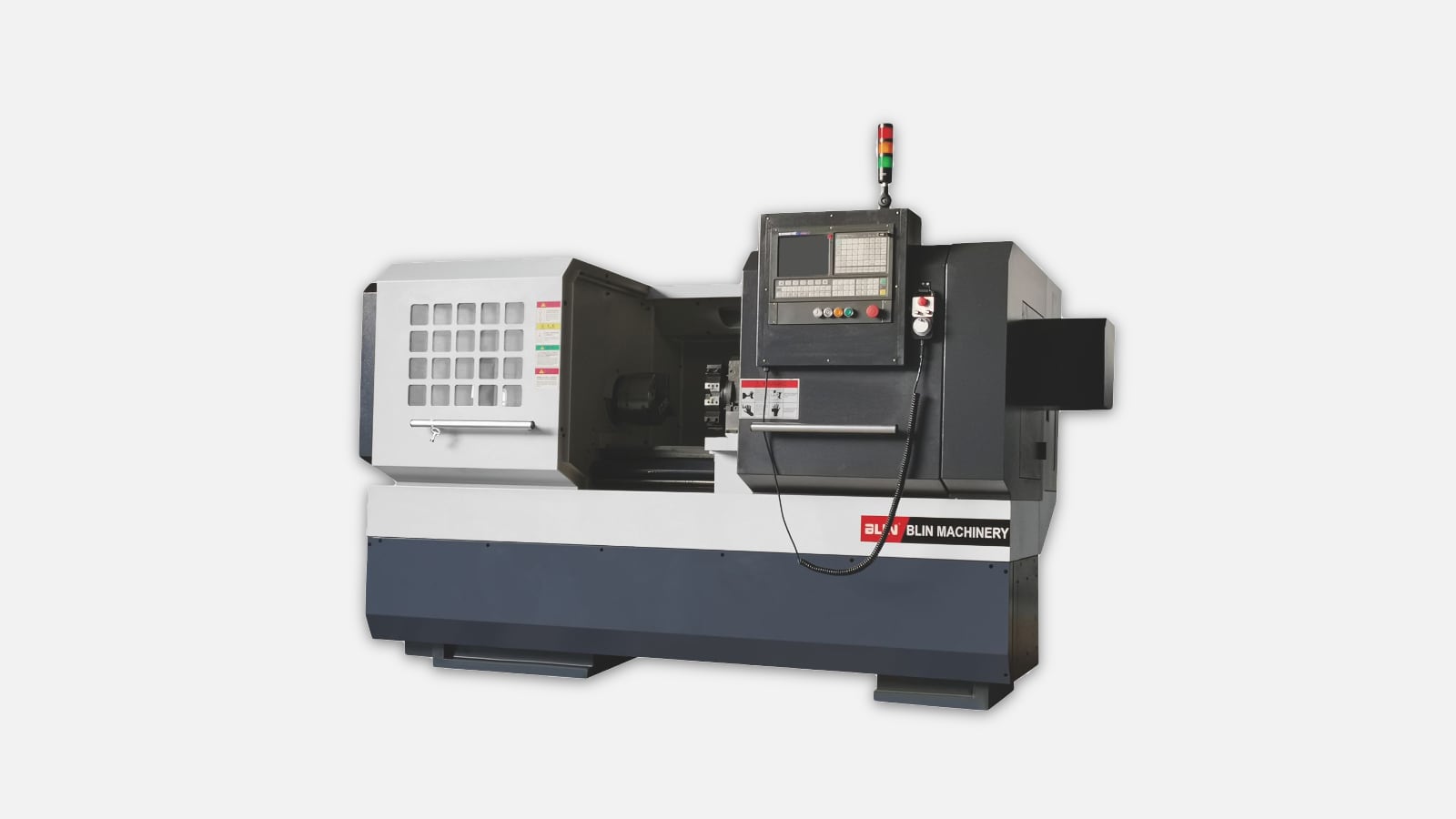

CNC Lathe BL-CK6136/6140 BLIN

Name: CNC Lathe BL-CK6136/6140 BLIN
Rating: 4.5 (1 reviews)

Light series lathe BL-CK6136/6140.

Width of bed312 mm
Maximum diameter of workpiece over bed360 mm
Maximum diameter of workpiece over saddle200 mm
Spindle hole diameter52 mm
Spindle taperMT6
Spindle nose typeC6
Spindle speed100 - 1,600 (optional 100-3,000) RPM
Spindle motor power5.5 kW
X-axis travel210 mm
Z-axis travel600/850 mm
Rapid travel speed on X/Z axes4/6 m/min
Diameter and pitch of ball screws on X/Z axes20/40 mm
Number of tool positions4 (optional 6/8) pcs
Rectangular section tool holder20x20 mm
Tailstock taperMT-4
Tailstock travel100 mm
Tailstock diameter60 mm
Finishing machining accuracy standardIT6-7
Surface roughness after finishingRa1.6
Parameters2100/2400x1350x1700 mm
Weight1300/1400 kg

All Specifications

Get a Consultation

+971 (56) 980-32-49

Get an Offer

Ask a Question

Description
Specifications
FAQ
Video

BL-CK6136/6140 is a high-tech lathe machine from the Chinese manufacturer BLIN. This model is designed for machining various materials, including metals, wood, plastic, and more.

The main advantages of the BL-CK6136/6140 machine are its high precision and productivity. By utilizing the latest technologies and high-quality materials, this machine ensures reliable and efficient operation for many years.

The BL-CK6136/6140 is equipped with a powerful electric motor that allows for fast and effective material processing. Additionally, this machine features numerous functions that make it convenient and easy to use.

Among the key characteristics of the BL-CK6136/6140 lathe, one can note its high machining accuracy, high spindle speed, wide range of feed speeds, and many others.

Overall, the BL-CK6136/6140 lathe is a reliable and efficient tool that can be used in various industrial sectors. If you are looking for a quality and dependable machine, this option from BLIN is an excellent choice.

Width of bed312 mm
Maximum diameter of workpiece over bed360 mm
Maximum diameter of workpiece over saddle200 mm
Spindle hole diameter52 mm
Spindle taperMT6
Spindle nose typeC6
Spindle speed100 - 1,600 (optional 100-3,000) RPM
Spindle motor power5.5 kW
X-axis travel210 mm
Z-axis travel600/850 mm
Rapid travel speed on X/Z axes4/6 m/min
Diameter and pitch of ball screws on X/Z axes20/40 mm
Number of tool positions4 (optional 6/8) pcs
Rectangular section tool holder20x20 mm
Tailstock taperMT-4
Tailstock travel100 mm
Tailstock diameter60 mm
Finishing machining accuracy standardIT6-7
Surface roughness after finishingRa1.6
Parameters2100/2400x1350x1700 mm
Weight1300/1400 kg

Design Features

Headstock

The design of the front headstock allows for improved heat dissipation and ensures the consistency of the spindle accuracy parameters during prolonged machining of parts.

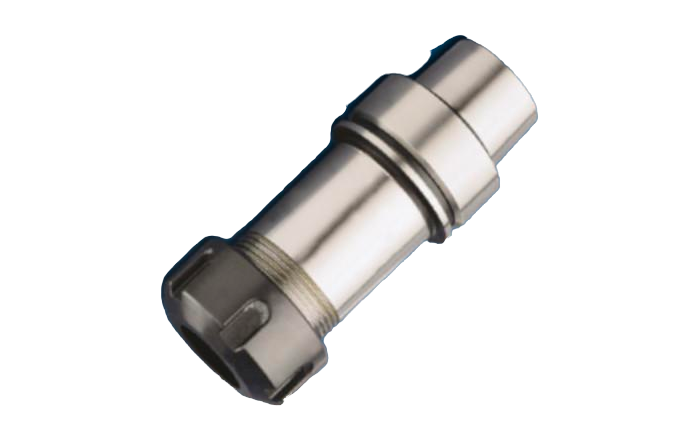

Spindle

A powerful spindle is mounted on precision bearings, thereby providing high accuracy and rigidity of the machine.

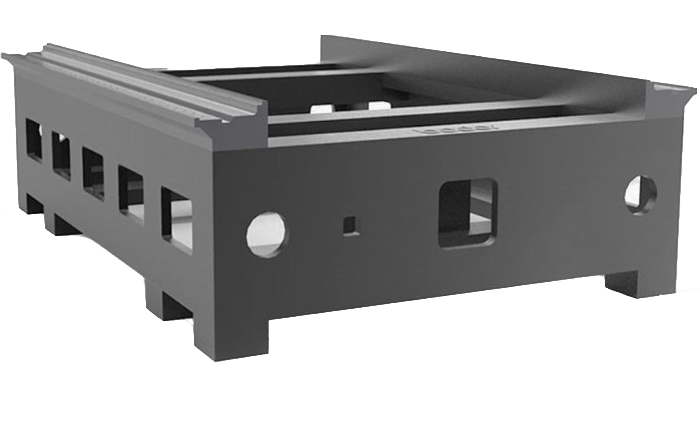

Bed

The machine features a monolithic base, which ensures high rigidity, with a base width of 312 mm.

Standard configuration

CNC control system Siemens. 4-position turret head. Manual chuck. Manual tailstock; working light. Automatic lubrication system. Coolant supply system. Thread cutting function.

Additional options

CNC system options: Fanuc or GSK. Turret head for 6-8 tools. Hydraulic chuck. Hydraulic tailstock. Cabinet air conditioner. Spindle hole enlargement. Door open sensor.
