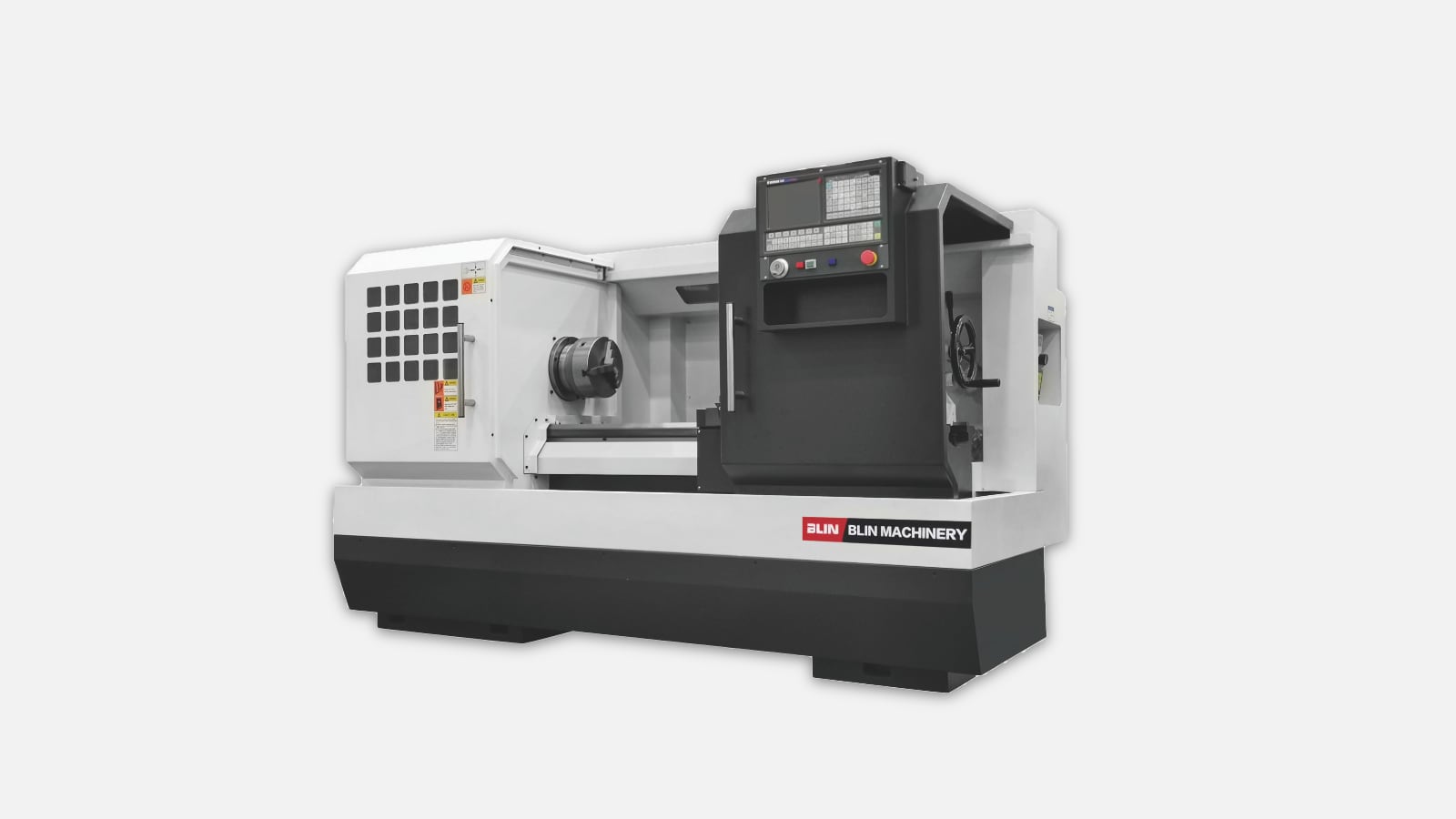

BLIN precision lathes of the BL-SK series

Lathes with an inclined bed, precision series BL-SK40S/50S/66Q.

Width of guides390 mm
Distance above the bed400 mm
Distance above the saddle200 mm
Maximum turning length500/750/1250/1750/2750 mm
Maximum weight550(8")/700(10") kg
Spindle speed162-1620 rpm
Spindle taperA2-8
Holes in spindle77/(82/105)* mm
Chuck8/10
Spindle motor power7.5 kW
Rapid movement on X/Z axes6/8 m/min
Movement on X axis275/235 mm
Movement on Z axis600/850/1350/1850/2850 mm
System4/6*
Tool shank25×25 mm
Positioning accuracy (X/Z)0.026(750)/0.036(1000) mm
Repeatability of positioning accuracy (X/Z)0.004 mm
Parameters2450/2700/3200 mm
Weight2050 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-SK40S 50S 66Q are lathe machines manufactured by the Chinese producer BLIN. These machines are designed for use in various industries, including metalworking, woodworking, and plastic processing. They represent high-quality equipment that ensures high precision and performance.

The BL-SK40S 50S 66Q has a multitude of features and capabilities. It is equipped with a high-precision spindle that allows for machining materials with great accuracy and speed. Additionally, the machine features an automatic tool changing system, making it more convenient and efficient to use.

This lathe machine comes in various sizes and modifications, including BL-SK40S, 50S, and 66Q. It also has a large working area and can process materials of different thicknesses and sizes. All of this makes the machine an ideal choice for any type of turning task.

BL-SK40S 50S 66Q also boasts a robust and reliable construction that ensures a long service life. It is made from high-quality materials and undergoes strict quality control, guaranteeing its reliability and durability.

Overall, the BL-SK40S 50S 66Q is an excellent choice for those seeking a high-quality lathe machine for industrial use. It provides high precision, performance, and reliability, making it the perfect option for any turning task.

Width of guides390 mm
Distance above the bed400 mm
Distance above the saddle200 mm
Maximum turning length500/750/1250/1750/2750 mm
Maximum weight550(8")/700(10") kg
Spindle speed162-1620 rpm
Spindle taperA2-8
Holes in spindle77/(82/105)* mm
Chuck8/10
Spindle motor power7.5 kW
Rapid movement on X/Z axes6/8 m/min
Movement on X axis275/235 mm
Movement on Z axis600/850/1350/1850/2850 mm
System4/6*
Tool shank25×25 mm
Positioning accuracy (X/Z)0.026(750)/0.036(1000) mm
Repeatability of positioning accuracy (X/Z)0.004 mm
Parameters2450/2700/3200 mm
Weight2050 kg
Design Features

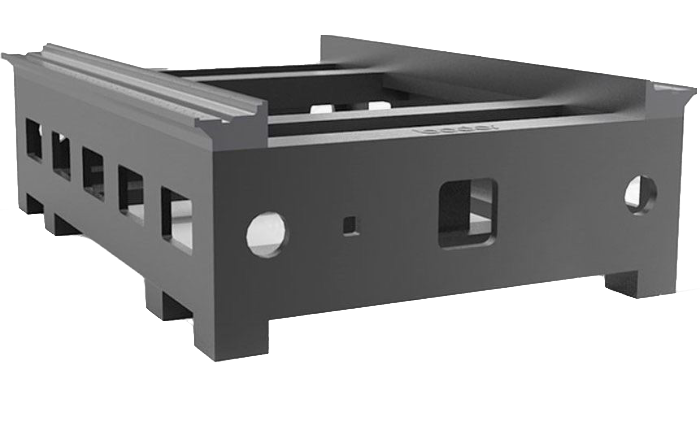

Monolithic bed
The machine has a monolithic bed that provides high rigidity of the machine structure. The bed undergoes a two-phase aging process
CNC system
In the standard configuration, the CNC system is Siemens, with Fanuc/GSK available as an option.
BL-SK Series
This series of machines features increased processing accuracy, thanks to modern design and the use of advanced technologies.
Spindle
The machine's spindle is equipped with high-precision bearings and a built-in gearbox.
