Lathe BLIN BL Z6TZ8T

Lathes of the economical series BL-Z6T Z8T.

Chuck Z6T6"/8"
Distance above the bed360 mm
Maximum turning length300 mm
Maximum rod diameter45 mm
Spindle speed4000 rpm
Spindle taperA2-5
Spindle holes56 mm
Spindle motor power5.5/7.5 kW
Rapid travels on X/Z axes20 m/min
Movement on X/Z axes200/330 mm
Tool system8-position hydraulic turret
Tool shank25x25/32 mm
TaperMT4
Quill travel80 mm
Parameters2220x1520x1670 mm
Weight2500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

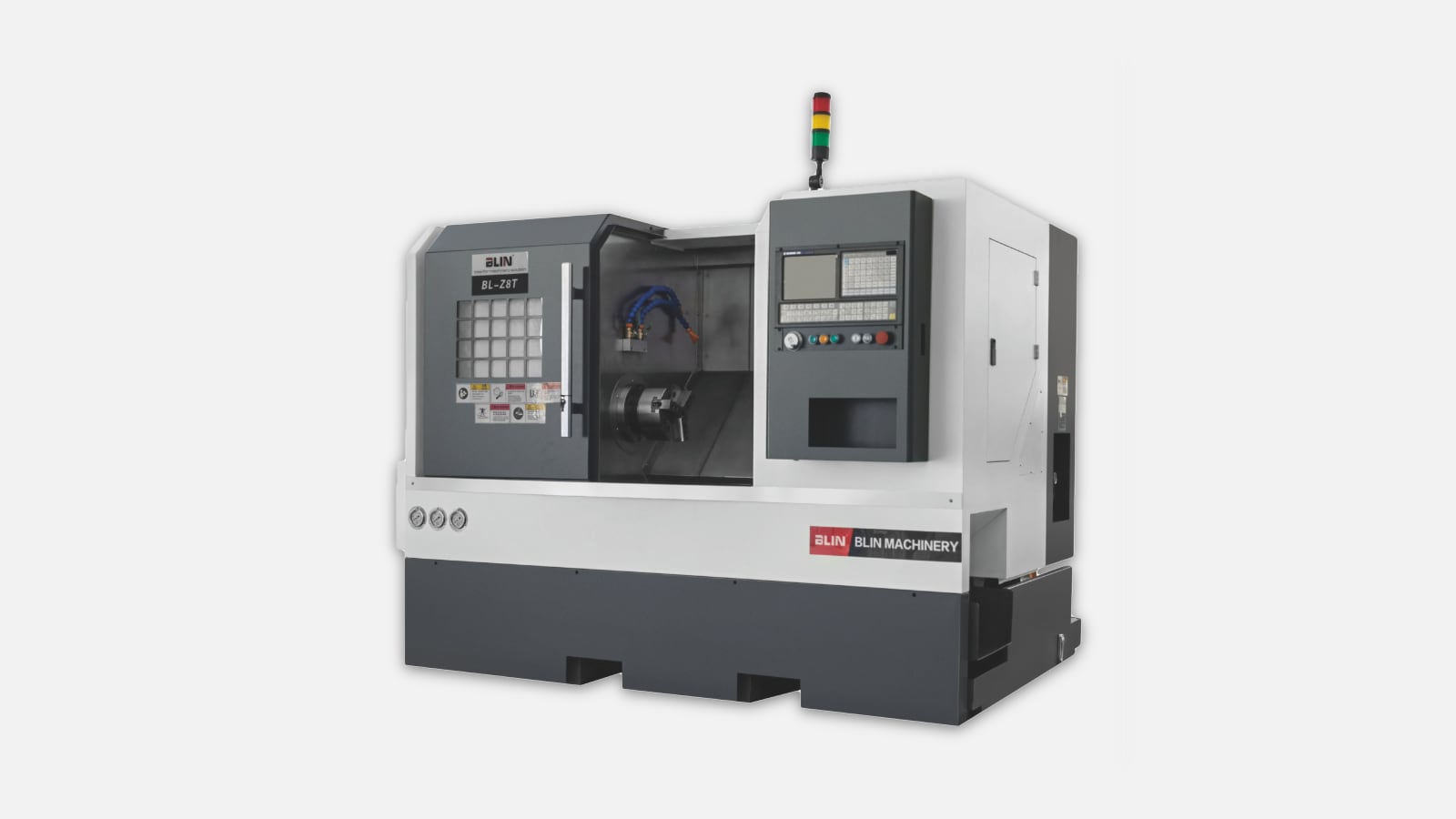

BL-Z6T Z8T are lathe machines produced by the Chinese company BLIN. These machines are quite versatile and can be used for machining various materials, including wood, metal, plastic, and others.

The BL-Z6T Z8T models feature high speed and precision, making them ideal for industrial and manufacturing purposes. Additionally, they come equipped with a powerful motor capable of handling large and thick materials.

BL-Z6T Z8T have many useful features that simplify the machining process and enhance accuracy. For example, these machines are fitted with special sensors that allow for the creation of more precise components.

It is also worth noting that these lathes offer convenient and straightforward control, making them accessible even for beginner users. Furthermore, they have a compact size and can easily fit into small workshops or garages.

Overall, the BL-Z6T Z8T models are an excellent choice for those seeking a versatile, precise, and user-friendly lathe machine. They can be used for machining various materials and come with numerous beneficial features that facilitate the working process.

Chuck Z6T6"/8"
Distance above the bed360 mm
Maximum turning length300 mm
Maximum rod diameter45 mm
Spindle speed4000 rpm
Spindle taperA2-5
Spindle holes56 mm
Spindle motor power5.5/7.5 kW
Rapid travels on X/Z axes20 m/min
Movement on X/Z axes200/330 mm
Tool system8-position hydraulic turret
Tool shank25x25/32 mm
TaperMT4
Quill travel80 mm
Parameters2220x1520x1670 mm
Weight2500 kg
Design Features

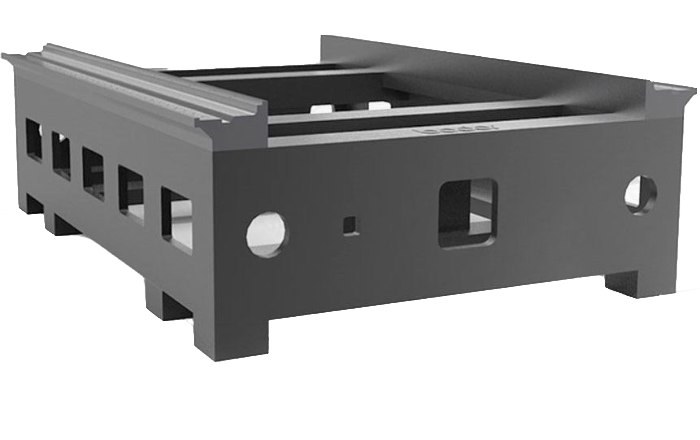

Monoblock bed
The machine has a monolithic bed, which provides high rigidity of the machine structure.

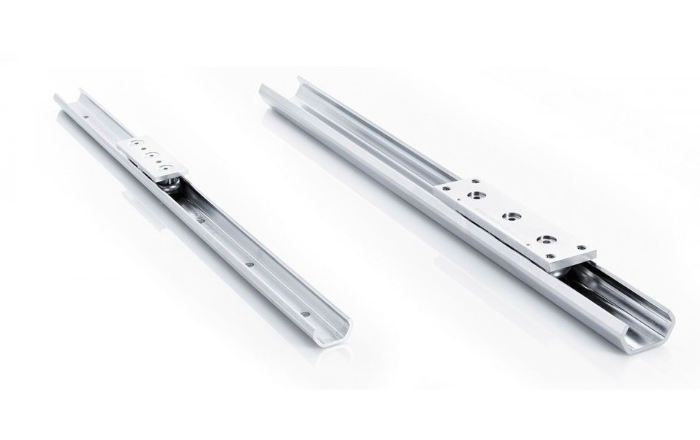

Linear guides
The machine is equipped with roller-type linear guides on the X/Z axes, featuring a low coefficient of friction and a long service life.
Basic configuration
10-position turret head. SCHNEIDER electrical cabinet. Heat exchanger for electrical cabinet. Hydraulic collet chuck. Automatic lubrication system. Splash protection. Tool set.
Additional options
Hydraulic chuck and tailstock available. Increased power. Chip conveyor. Door opening sensor. Bar feeder.
