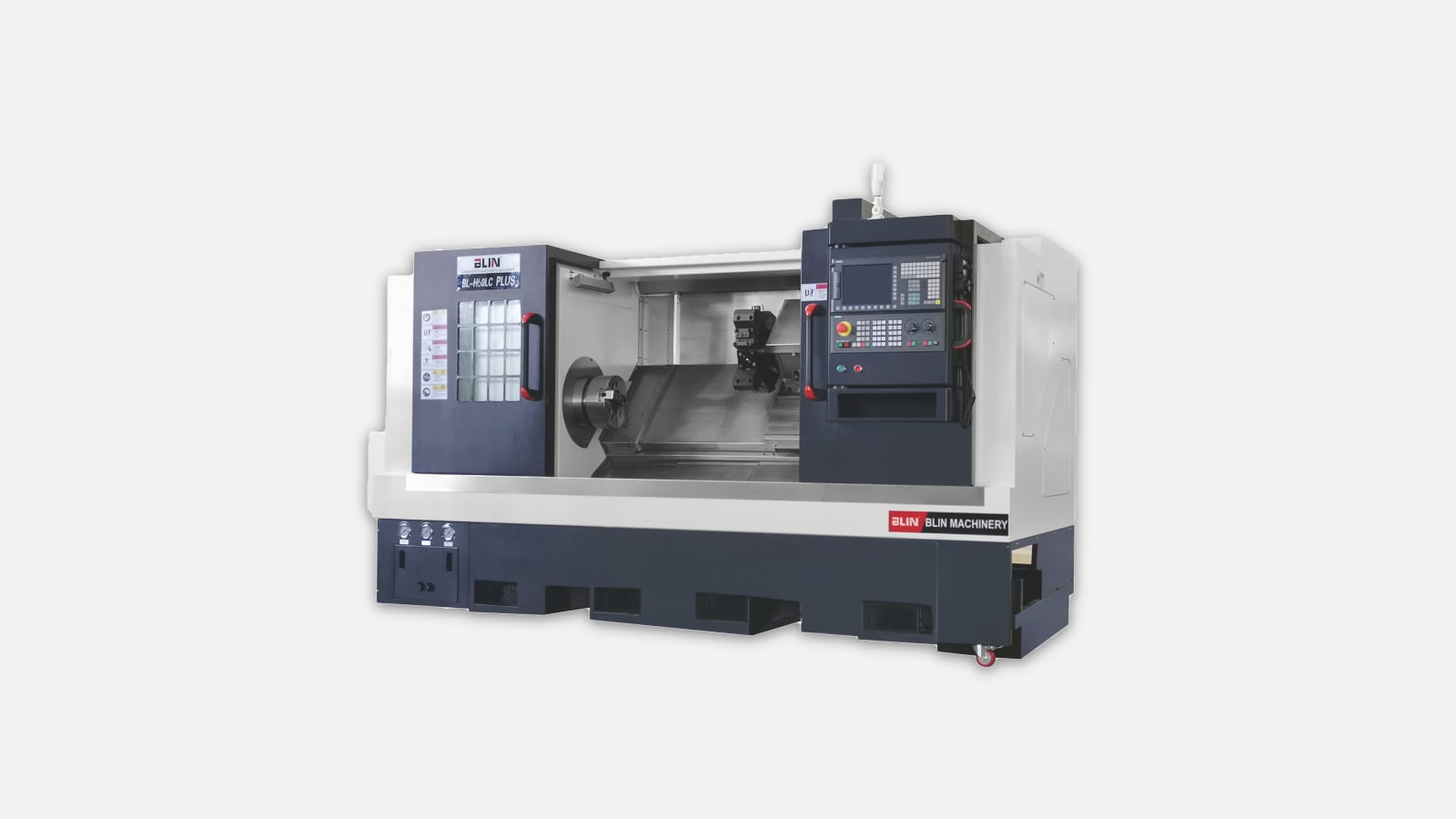

Lathe with Inclined Bed BL-H60L LC BLIN

Lathe with inclined bed of standard series BL-H. Models: BL-H40L, BL-H60L, BL-H60LC.

Chuck6"/8"
Distance above bed410 230 mm
saddle400 mm
Maximum turning length300 mm
Maximum turning diameter44 mm
Maximum rod diameter4000 RPM
Spindle speedA2-5
Spindle taper56 mm
Spindle hole7.5 kW
Spindle motor power3030 m/min
Rapid movements along X/Z axes180 140 mm
Movement along X/Z axes10-position turret
Tool system type25x25,32 mm
Tool shankMT4
Taper350 mm
Quill travel0.005 mm
Positioning accuracy0.003 mm
Repeatability2300x1500x1700 mm
Parameters2800 kg
Weight
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The lathes of models BL-H60L (BL-H40L, BL-H60LC) from the manufacturer BLIN are excellent equipment for processing various materials. They are characterized by high precision and performance, making them suitable for a wide range of manufacturing industries.

The main advantage of the machine is its reliability and durability. It is built on modern technologies and made from high-quality materials, ensuring stable operation over a long period.

The BL-H60L (40L, 60LC) models have a wide range of settings, allowing them to be adjusted for working with various materials such as metal, wood, plastic, and others. This versatility makes the lathes suitable for use in various industries, including machine engineering, furniture manufacturing, electronics production, and many more.

The machine boasts high processing accuracy, enabling it to produce quality results. It is equipped with a modern control and monitoring system, allowing for the processing of materials with high precision and repeatability.

Overall, the BL-H60L LC lathe from the manufacturer BLIN is excellent equipment that offers high quality, precision, and performance. It is suitable for use in various industries and allows for the processing of different materials with high accuracy and quality.

Chuck6"/8"
Distance above bed410 230 mm
saddle400 mm
Maximum turning length300 mm
Maximum turning diameter44 mm
Maximum rod diameter4000 RPM
Spindle speedA2-5
Spindle taper56 mm
Spindle hole7.5 kW
Spindle motor power3030 m/min
Rapid movements along X/Z axes180 140 mm
Movement along X/Z axes10-position turret
Tool system type25x25,32 mm
Tool shankMT4
Taper350 mm
Quill travel0.005 mm
Positioning accuracy0.003 mm
Repeatability2300x1500x1700 mm
Parameters2800 kg
Weight
Design Features

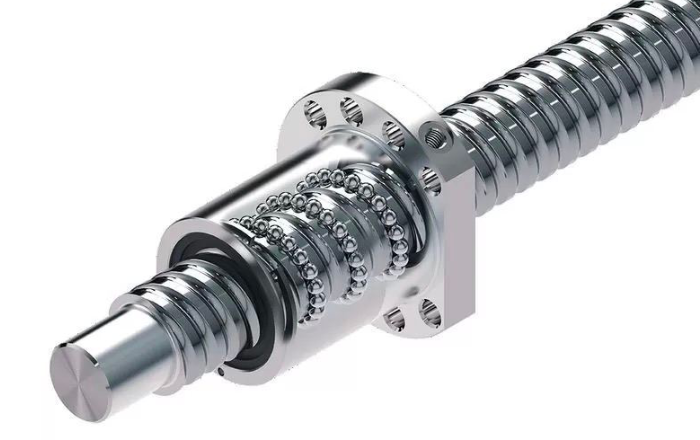

Ball screw
The use of high-precision ball screws allows for good rigidity and high accuracy of the machine.
Configuration
The modular design of the machine has extended functionality for automating processes for metalworking.

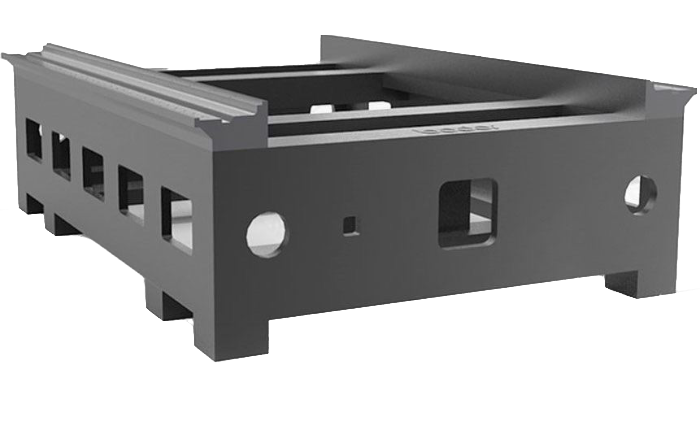

Base frame
H50L - standard machine configuration in the basic package with an 8-position turret with an extended machining length. H50LC - a machine with a C-axis and driven tool turret with 12 BMT tools. With an extended machining length.
A lathe with an inclined bed, made from a monolithic cast iron bed of "Mechanit" class.
Basic configuration
Siemens CNC system. Hydraulic chuck. Tool turret head. Hydraulic tailstock. Automatic lubrication system. Working area lighting. Full cabinet protection.
Additional options
Fanuc/GSK CNC system. Increased power. Bar feeder. Door opening sensor. Tool setup sensor. Chip conveyor.
