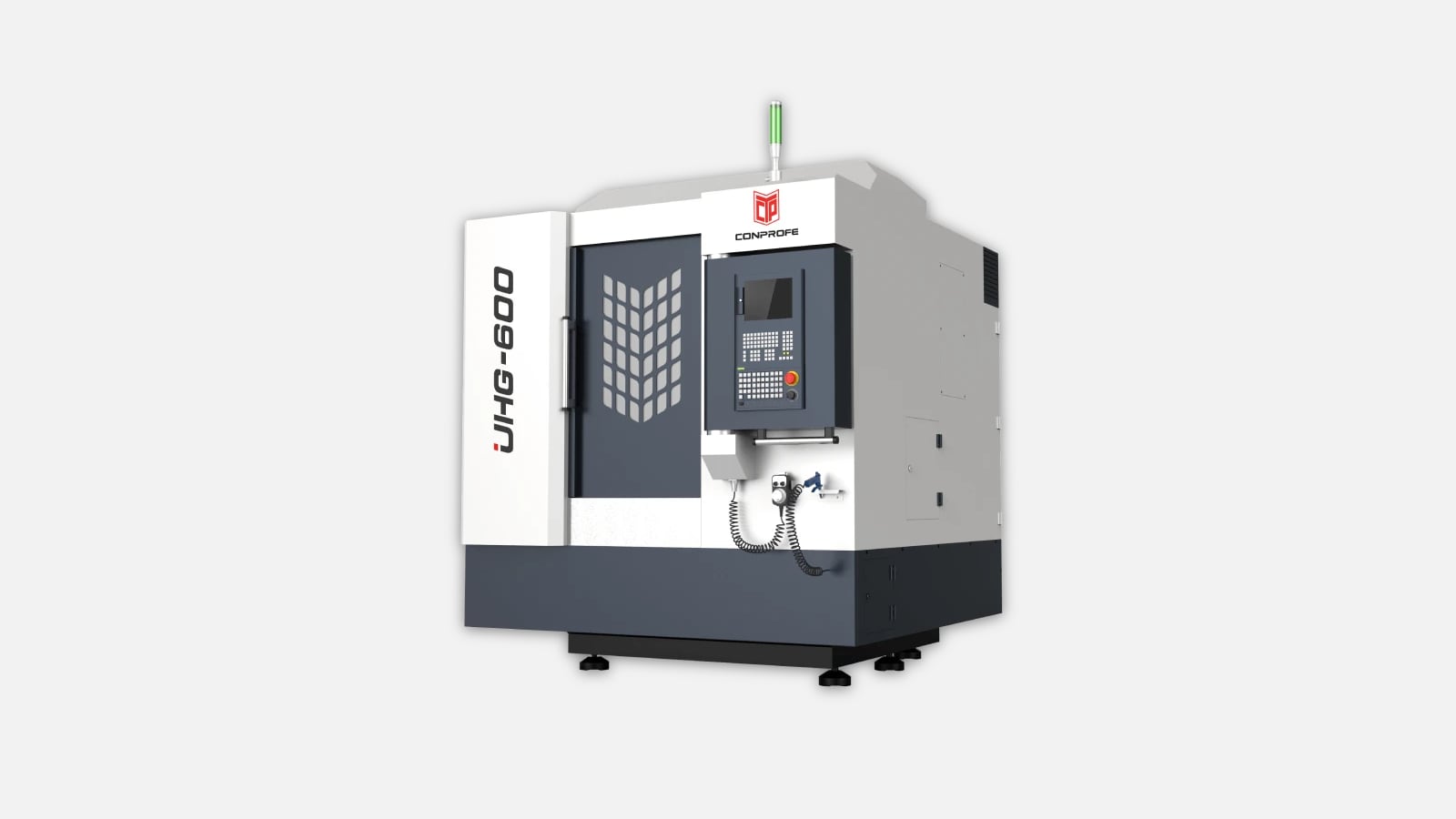

CNC Machining Center UHG-600 from COMPROFE

CNC Machining Center COMPROFE UHG-600 with 3 axes.

Travel X600 mm
Travel Y500 mm
Travel Z250 mm
Rotational speed40,000 RPM
Power6 kW, 7.5 kW
Feed rate on axes X and Y10,000 mm/min
Table load capacity200 kg
Positioning accuracy0.006 mm
Repeatability0.004 mm
Weight5,000 kg
Parameters1950x2100x2390 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The CONPROFE UHG-600 CNC machining center is a powerful and reliable milling machine specifically designed for heavy-duty tasks. It is equipped with a high-performance spindle that allows for the processing of a variety of materials, including metal, plastic, wood, and more.

This machine features a large table size, enabling it to handle large parts and components with significant dimensions. Additionally, due to the high precision and stability provided by the machine’s design and the use of quality components, the CONPROFE UHG-600 can deliver high performance and excellent machining quality.

A key feature of this model is the cooling system, which prevents the spindle from overheating and extends the machine’s lifespan. Furthermore, the machine includes a user-friendly control system that makes it easy to adjust the material processing and perform various operations.

The CONPROFE UHG-600 is the ideal solution for producing large batches of components, as well as for carrying out specialized tasks. It offers high reliability, precision, and productivity, making it an excellent choice for any production environment that requires a dependable and efficient milling machine.

Travel X600 mm
Travel Y500 mm
Travel Z250 mm
Rotational speed40,000 RPM
Power6 kW, 7.5 kW
Feed rate on axes X and Y10,000 mm/min
Table load capacity200 kg
Positioning accuracy0.006 mm
Repeatability0.004 mm
Weight5,000 kg
Parameters1950x2100x2390 mm
Design Features
Structure
The machine is equipped with a frame, a movable table, and a movable column.

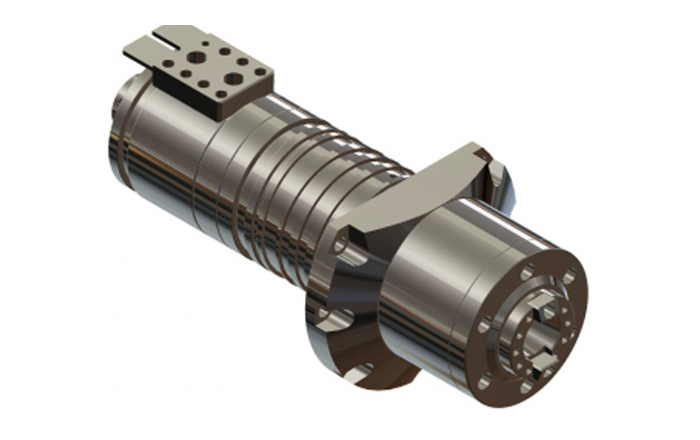

Front spindle end
The front end of the spindle HSK-E40, HSK-E32.

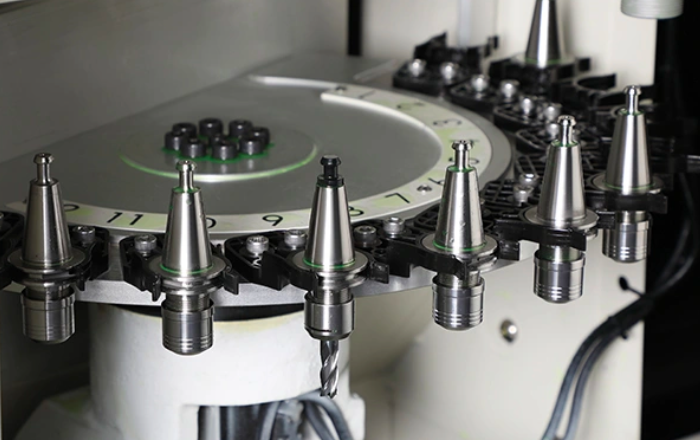

Number of tools
The machine has 13-15 removable tools, with a total weight not exceeding 3 kilograms.
Standard configuration:
Centralized automatic lubrication system
Additional configuration:
Flywheel controller
Electrical cabinet
Heat exchanger
Three-color signal lamp
Spindle cooler
Blowing gun
LED work light
Safety interlock
High-precision 3D probe
Vacuum cleaner

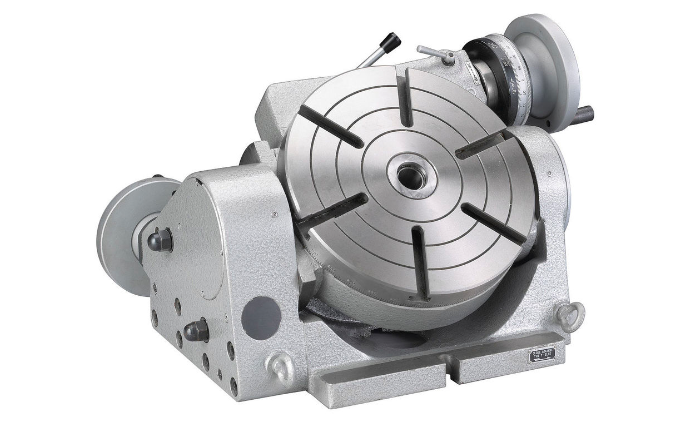

4/5-axis rotary table
Automatic door
Contact tool installation device
Laser tool installation device
Extended tool magazine (ETM-14).
