CNC Machining Center UHT-500 from COMPROFE

Processing vertical CNC center UHT-500 with 3 axes.

Travel X500 mm
Travel Y400 mm
Travel Z360 mm
Spindle speed24,000 RPM
Powermax 3.7 kW
Feed rate in X and Y axes48,000 mm/min
Table load capacity250 kg
Positioning accuracy0.006 mm
Repeatability0.004 mm
Weight2,300 kg
Parameters1600x2155x2565 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

CNC Machining Center CONPROFE UHT-500 is a reliable and high-performance machine designed for processing both metallic and non-metallic materials. It is equipped with a high-precision control system and a high-torque drive that ensures accuracy and stability during operation.

The UHT-500 model has a compact size and is easy to operate. The machine boasts high power and spindle speed, allowing for quick and high-quality processing of workpieces of varying complexity.

The machine is fitted with a multifunctional controller that provides convenience and simplicity in equipment management. The controller features an intuitive interface with a bright display that shows information about the current processing parameters.

The UHT-500 offers high productivity and can operate under heavy conditions. It is ideally suited for production shops and workshops where large volumes of material processing are required.

Additionally, the machine has a long service life, making it a cost-effective solution for businesses. With its high technical specifications, it guarantees excellent quality in part processing and increased production efficiency.

Travel X500 mm
Travel Y400 mm
Travel Z360 mm
Spindle speed24,000 RPM
Powermax 3.7 kW
Feed rate in X and Y axes48,000 mm/min
Table load capacity250 kg
Positioning accuracy0.006 mm
Repeatability0.004 mm
Weight2,300 kg
Parameters1600x2155x2565 mm
Design Features
Structure
Machine with a fixed frame, with a movable table, with a column

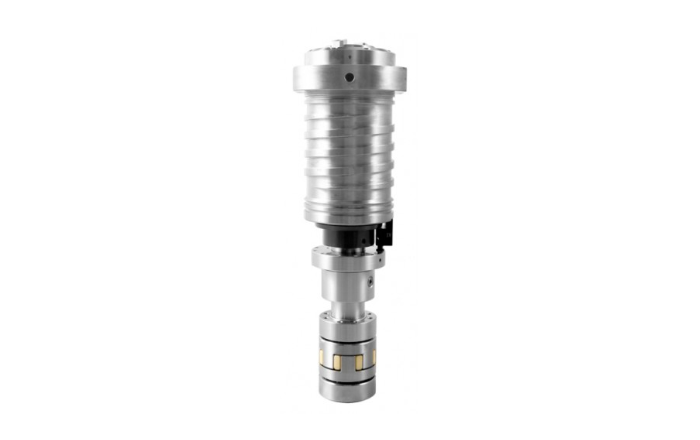

Front end of the spindle

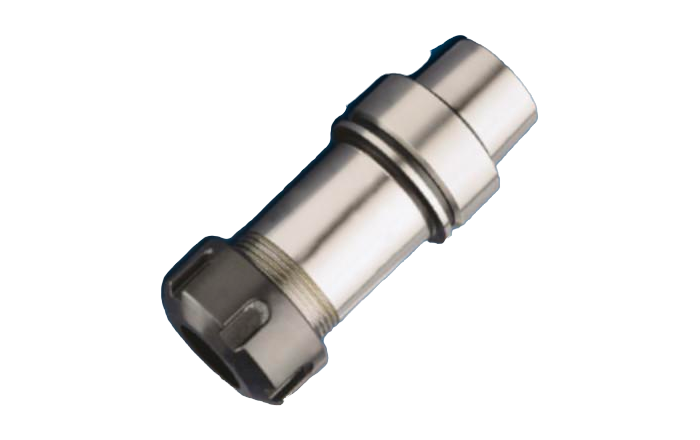

Front end of the spindle BT 30.
Direction of the spindle
The spindle has a vertical orientation, allowing for quick and convenient processing of parts of various sizes.
Standard configuration:
Centralized automatic lubrication system
Additional configuration:
Electrical cabinet heat exchanger
Cooling system
Ethernet interface
Flywheel controller
Blow gun
Chip flushing system
LED work lamp
Three-color signal lamp
Safety lock
Automatic door

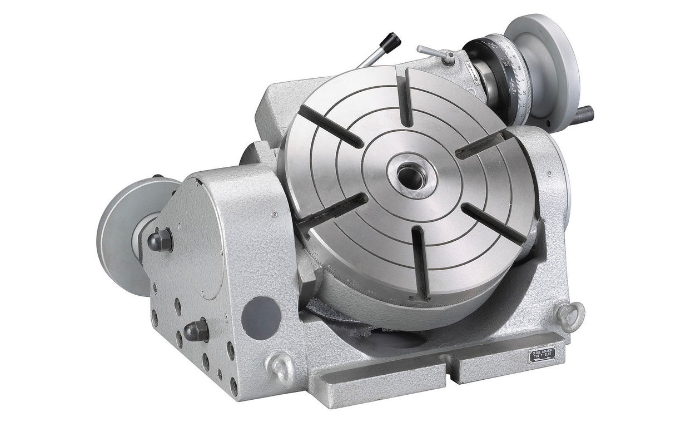

Rotary table with 4th/5th axes
Contact device for tool setting
Spindle cooler
Oil mist collector
High precision 3D sensor
Disc-type water and oil separator
Additional tool magazine (ATM-14).
