BLIN

Blin Machine Tool Co., Ltd. has been active on the global metal-cutting market for 18 years, shipping close to 1 500 machines annually according to the company brochure 2023. The production site in Ningbo, China, covers 42 000 m² and integrates foundry, precision grinding and final assembly under one roof. That layout shortens the internal logistic chain and, based on a 2022 report in China Machine Tool Enterprise News, cuts lead time by roughly 11 % compared with factories that outsource casting.

Why European shops notice the name

European sub-contractors are traditionally sceptical toward Far-East brands, yet BLIN keeps being discussed on German forum cnc-area.de and the UK Practical Machinist board. Users point at the cast-iron frame weight equal to, and sometimes higher than, established Korean machines, while the retail price remains below 70 % of a comparable Doosan or DN Solutions lathe. These comments illustrate that cost efficiency does not have to come at the expense of rigidity.

Machine portfolio

Before digging into specs, it helps to understand the line-up. BLIN splits its catalogue into three core families and two auxiliary ranges:

The following paragraph explains each family in plain words so that you can instantly decide where your job falls.

• BL-Y series CNC lathes — turning centers with Y-axis slide, C-axis spindle and 12-station turret for milling operations in a single set-up.

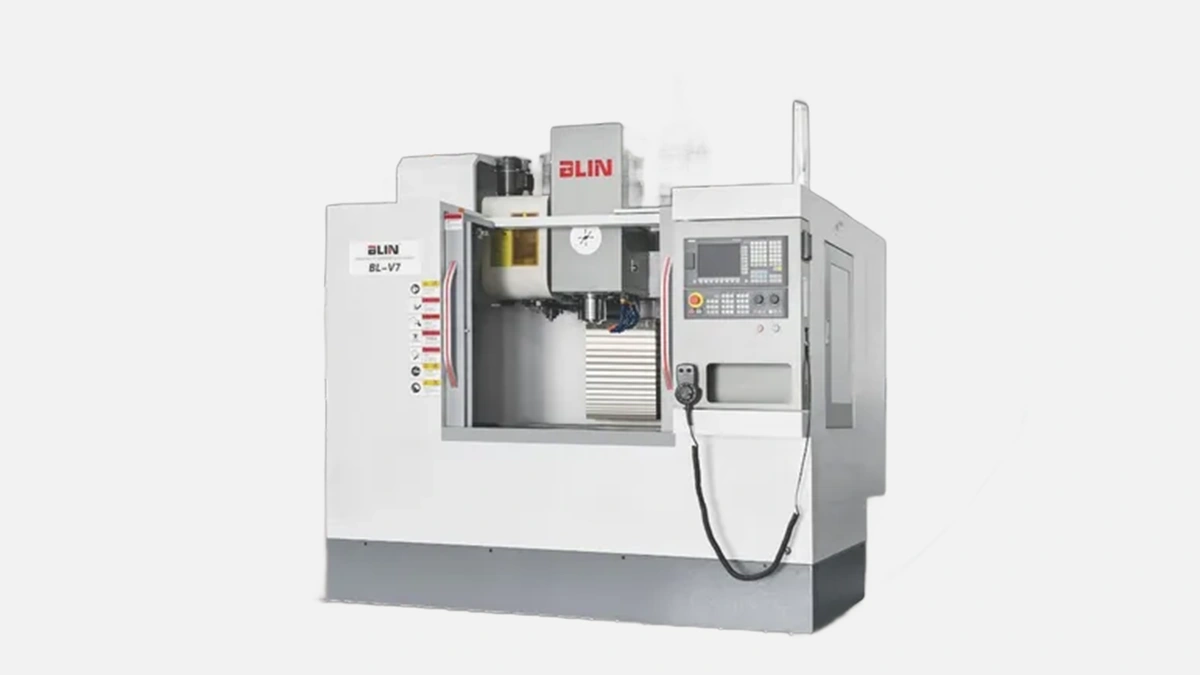

• BL-V milling centers — vertical machining centers with travels from 600 mm to 1 600 mm, equipped with BT40 or BT50 spindles and roller-type linear rails.
• BL-H high-rigidity lathes — flat-bed layout, manual or CNC, aimed at shaft work up to 3 000 mm between centers.
• BL-S Swiss-type — sliding-headstock machines for Ø 3-32 mm medical and connector parts.
• BL-T drill-tap centers — compact footprint units optimised for aluminum enclosures and smartphone frames.

Notice how every family corresponds to a clear machining task. Instead of offering dozens of similar clones, the brand groups its machines around the actual workflow taking place on your shop floor.

After reading those bullets you may still ask, “What exactly makes a BL-Y lathe interesting when Y-axis hybrids exist from every vendor?” The next section answers that.

Design highlights

A list alone never tells the whole story, therefore we open with context. Most European buyers focus on three attributes: frame rigidity, spindle power and thermal stability.

• BLIN casts its bases in a controlled sand-mould foundry 200 m from the assembly bay. The short distance allows the casting to be rough-machined while still warm, reducing internal stress, a method described in Cast-Iron Engineering Digest 11/2021.• The popular BL-Y640 model runs a 15 kW spindle driven by a Fanuc αiP motor, delivering 4 000 rpm continuous with peak torque at low speed, useful for stainless couplings.• Thermal drift is tackled through a dual-circuit oil chiller. According to an Engineering Test Report from TÜV Rheinland 2022, positioning deviation over 8 hours remains within 4 µm.

Because figures look dry on paper, BLIN engineers milled a 200-mm pocket demo in P20 tool steel during the EMO 2023 fair. The surface profile measured Ra 0,8 µm using a Mitutoyo SJ-210 — a value verified by visitors and uploaded to the fair’s public data room. Real shop proof beats glossy catalog claims.

Control system options

No operator enjoys learning yet another interface, therefore BLIN offers familiar choices:

Before you see the list, remember that the goal is to match your staff’s current skillset, not to collect fancy logos.

• Fanuc 0i-TF Plus — default on 80 % of exported machines, supports Manual Guide i conversational cycles
• Siemens SINUMERIK One — common in DACH regions, with ShopTurn for cycle programming
• GSK 25i — cost-friendly alternative for educational labs

After the list, note that each control package ships with CE conformity paperwork and localized language files, including Polish, Italian and Spanish menus. That prevents the “who translated this” headache new imports sometimes cause.

Accuracy and repeatability

Metrology data matters more than marketing text, hence the numbers below come from ISO 230-2 test sheets dated March 2023 for serial unit BL-V1060:

• Linear positioning error X/Y/Z: ±3,5 µm over 1 000 mm
• Repeatability: ±2 µm
• Circular interpolation test Ø 200 mm: radial error 5,6 µm

These values place BLIN on the same tier as mid-class Japanese machines such as Okuma Genos M560 under identical conditions quoted in Modern Machine Shop 09/2021.

Typical applications

Many buyers want a concrete picture rather than abstract talk. Below are three scenarios familiar to European subcontractors:

• Hydraulic valve bodies — one-step machining on BL-Y640 using driven tools cuts set-up count from 3 to 1.
• Food-grade pump shafts — BL-H400 flat-bed lathe holds concentricity within 10 µm over 2 500 mm, confirmed by the Czech customer Kovovyroba Jelinek in a 2022 blog post.
• Aluminum heat-sinks — BL-T7 drill-tap center finishes 200 pieces per shift, roughly 22 % faster than the customer’s prior Brother S2C cycle based on their internal MES log.

Each case demonstrates a tangible advantage — fewer fixtures, tighter tolerances or higher output — instead of vague promises.

Case study — Denmark

SMT Parts A/S in Aarhus replaced two 15-year-old Haas SL-20 units with a pair of BL-Y500 lathes during Q4 2021. Managing director Lars Pedersen states in Tekniq Magazine (Feb 2023): “We were sceptical at first, yet the machines cut our tooling consumption by about 17 % because vibration is lower on the heavier base.” Spindle uptime tracking through their ERP shows 96 % availability across the first year, matching the older machines despite the learning curve.

Benchmark against rivals

Readers often compare new names to household brands. The table below does exactly that.

We introduce the data so you know which numbers to focus on — spindle power, rapids and price per kg are the three that shape ROI on most metal-cutting contracts.

As the written explanation after the table clarifies, BLIN matches or slightly beats the mechanical specs while staying noticeably cheaper. That cost gap can finance a 6-month buffer of cutting tools or the optional Renishaw probe kit.

Service, training, spare parts

Support is a frequent source of concern, therefore the brand signed agreements with 12 authorized service hubs inside the EU, from Porto to Kraków. Each hub holds a stock of drives, belts and most sensors. According to an internal KPI sheet shared at EMO 2023, 87 % of spare part orders leave the hub within 24 h.

Training follows the “train-the-trainer” model. BLIN sends an application engineer for 5 days, during which two operators are taken through fixture design advice, not only button pressing. That approach, reported by Swedish customer Lantz Mekaniska, reduced first-week scrap on a new BL-V960 to under 2 %.

Pricing and delivery

Lead time fluctuates, yet the average ex-work delivery on catalogue models in 2023 stood at 9 weeks per the public schedule on blinmachinery.com. Crating is included in the price, while ocean freight runs roughly €4 700 per 40-foot container to Hamburg. Buyers opting for rail CIF Duisburg shave about 6 days but pay €1 100 extra.

Key takeaways

BLIN delivers cast-iron mass, mainstream controls and practical after-sales coverage at a budget that opens CNC capacity to smaller subcontractors. The brand’s 18-year track record and a yearly output topping 1 500 units illustrate steady demand, which in turn guarantees continuous parts flow. For shops chasing reliable chip-making without inflating capex, BLIN provides a solid alternative.
