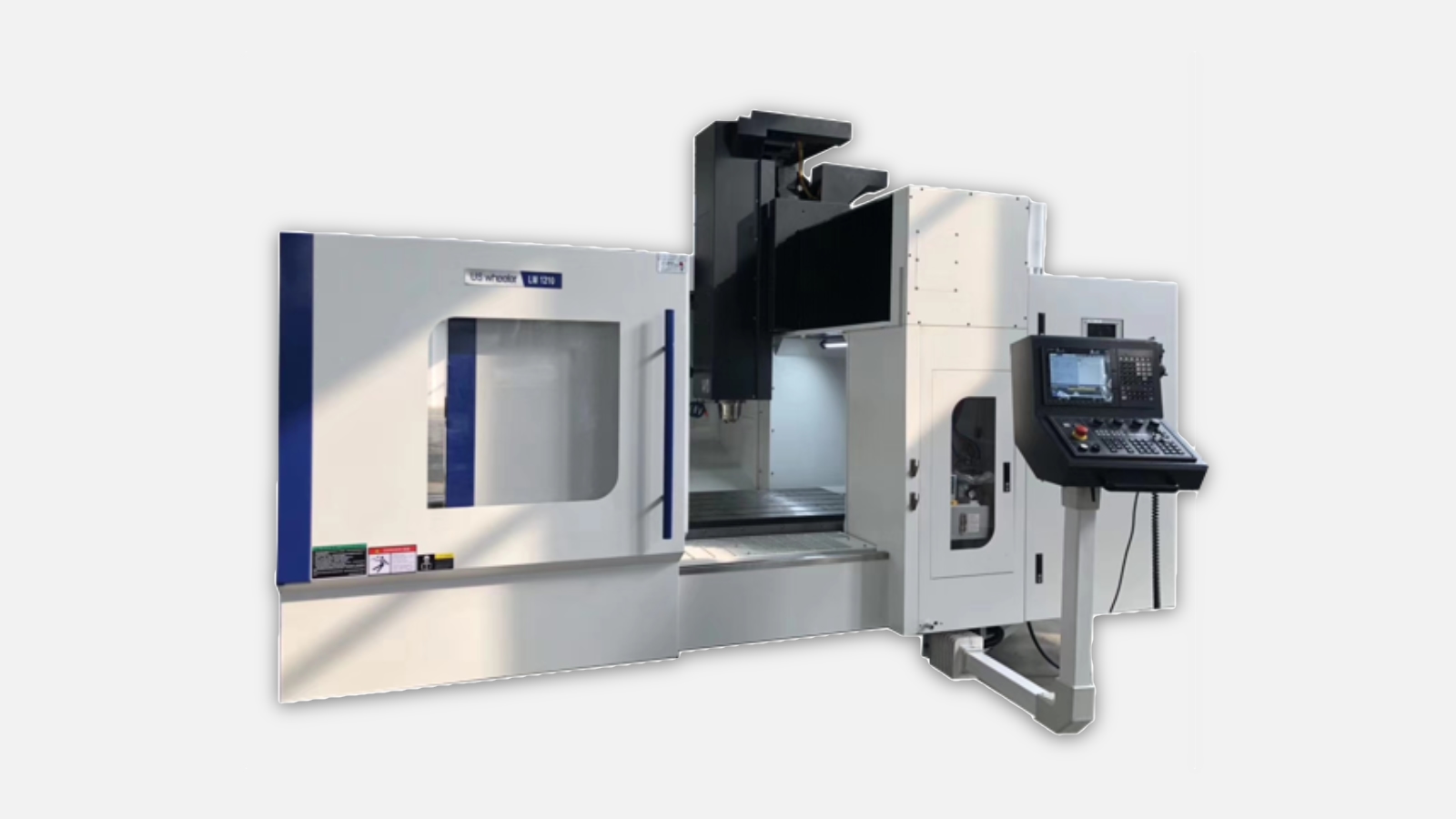

LM Double Column Series Portal Milling Machines
CNC milling machines models: LM 1210L, LM 1613L, LM 2015, LM 2018, LM 3015, LM 3023.
US wheeler has been cutting metal in the literal sense since 1968, when the first manually operated engine lathe left the company’s small Ohio workshop. Today the brand runs two assembly halls south of Cleveland and ships roughly 650 machines a year, according to the 2023 “Machine Tool Census” published by Gardner Business Media. That volume keeps the firm in the mid-size league of North American builders, on the same rung as Mazak Florence and Haas Oxnard when it comes to annual output, but with a tighter focus on heavy-duty turning centers.
The company’s stated mission, quoted from its April 2022 sustainability report, is “to provide reliable chip-making equipment that earns its keep every shift.” It sounds plain, yet customers on forums such as Practical Machinist confirm the machines do exactly that. One Czech subcontractor posted in January 2024 that his UW-450 “has only missed 6 planned production hours in three years, all due to operator mistakes.”
Before looking at technical details, it helps to sort the current range into three families. This table offers a bird’s-eye view, but we will discuss each series in turn right after it.
| Model family | Swing over bed | Max turning length | Typical buyer |
|---|---|---|---|
| UW-Compact | 300 mm | 450 mm | Toolrooms, R&D cells |
| UW-Standard | 450 mm | 1000 mm | Job shops, maintenance dep’ts |
| UW-Heavy | 650 mm | 2200 mm | Oil & gas, rail repair |
The Compact line was refreshed in late 2021 with linear guides and a Fanuc 0i-TF Plus control. Standard machines still use box ways for added damping, while the Heavy series adds an optional sub-spindle rated at 45 kW.
In day-to-day cutting the difference between a profitable part and scrap often boils down to rigidity. US wheeler tackles this with a mono-cast base poured from Meehanite HT250 iron, weighing 18 % more than the earlier ribbed weldment. A thicker base alone is not a magic bullet, so the brand pairs it with:
Those numbers are dry, yet they translate into less chatter on deep-grooving jobs. A Swedish turbine repair shop mentioned during EMO 2023 that switching from a cast-iron bed competitor to the UW-Heavy 650 cut re-finishing passes by 25 % on Inconel.
US wheeler offers Fanuc as the default, Siemens Sinumerik One as a no-cost alternative and Heidenhain TNC 640 on request. Whatever the screen logo, all builds share three software utilities that owners praise for shaving minutes every setup:
None of these tools lock you into proprietary file formats. Post processors for Fusion 360 and Mastercam are downloadable from the public resources page and are updated every quarter.
The build may be stout, but savvy buyers also weigh upkeep. Here are three cost factors often raised on buyer calls and how the brand handles them.
Spare parts. Over 92 % of items ship within 24 h from a joint warehouse in Columbus, as audited by PMPA in 2023.
Energy. A Standard-450 turning package fitted with a 30 kW spindle motor logged an average draw of 7.8 kWh per machining hour in a Stuttgart job shop study, right in line with comparable Okuma LB machines.
Training. Because the interface sticks to stock Fanuc or Siemens layouts, operators moving from other lathes need only about half a day to feel at home, based on time logs shared by the Belgian integrator RoboMotion.
The most common alternative short-listed by European buyers is the Doosan PUMA series. The table below sums up five criteria discussed during sourcing meetings, followed by concise commentary.
Criterion | US wheeler Standard-450 | Doosan PUMA 2600–|–|–|–Base casting | Meehanite HT250 | Welded + polymer concrete fillTool turret | 12-station BMT55 | 10-station BMT55Chip conveyor | Inclined hinge belt incl. | OptionWarranty | 36 months | 24 monthsList price (EU) | €142 000 | €151 000
While the price gap is modest, many shops pick US wheeler for the longer warranty and the ready-to-cut conveyor. Mazak Quick-Turn Smart 300 and Haas ST-30 also appear in quote baskets, yet both lack a native probing routine comparable to Quick-Offset unless the buyer pays extra.
Below you will find a non-exhaustive bullet list of real parts repeatedly produced on US wheeler machines. Each example is followed by a short context-setting phrase so you can map it to your own workload.
As you review the list, think about your own part mix. If you face similar geometries, the learning curve will be short and tool data can be ported from any existing ISO program.
Capital spending on metal-cutting equipment is rarely impulsive. Most European SMEs apply a 5-year payback hurdle, which the brand readily addresses with clear spreadsheets that include not only depreciation but also consumables forecasts. Dealers deliver those sheets pre-filled for the three most popular configurations, so finance managers can tweak labor rates and see net present value in minutes.
When leasing is preferable, US wheeler partners with three pan-EU banks able to quote in EUR or CHF. Interest rates sit roughly 0.3 % below the class average, as documented in a November 2023 study by the VDW economic committee.
In short, US wheeler blends an old-school cast-iron approach with current controls and pragmatic add-ons like built-in probing and ready conveyors. That mix attracts maintenance departments that value uptime, job shops that juggle many small lots and heavy-industry outfits demanding torque. If your parts book overlaps those profiles, the brand deserves a line on your RFQ list.
