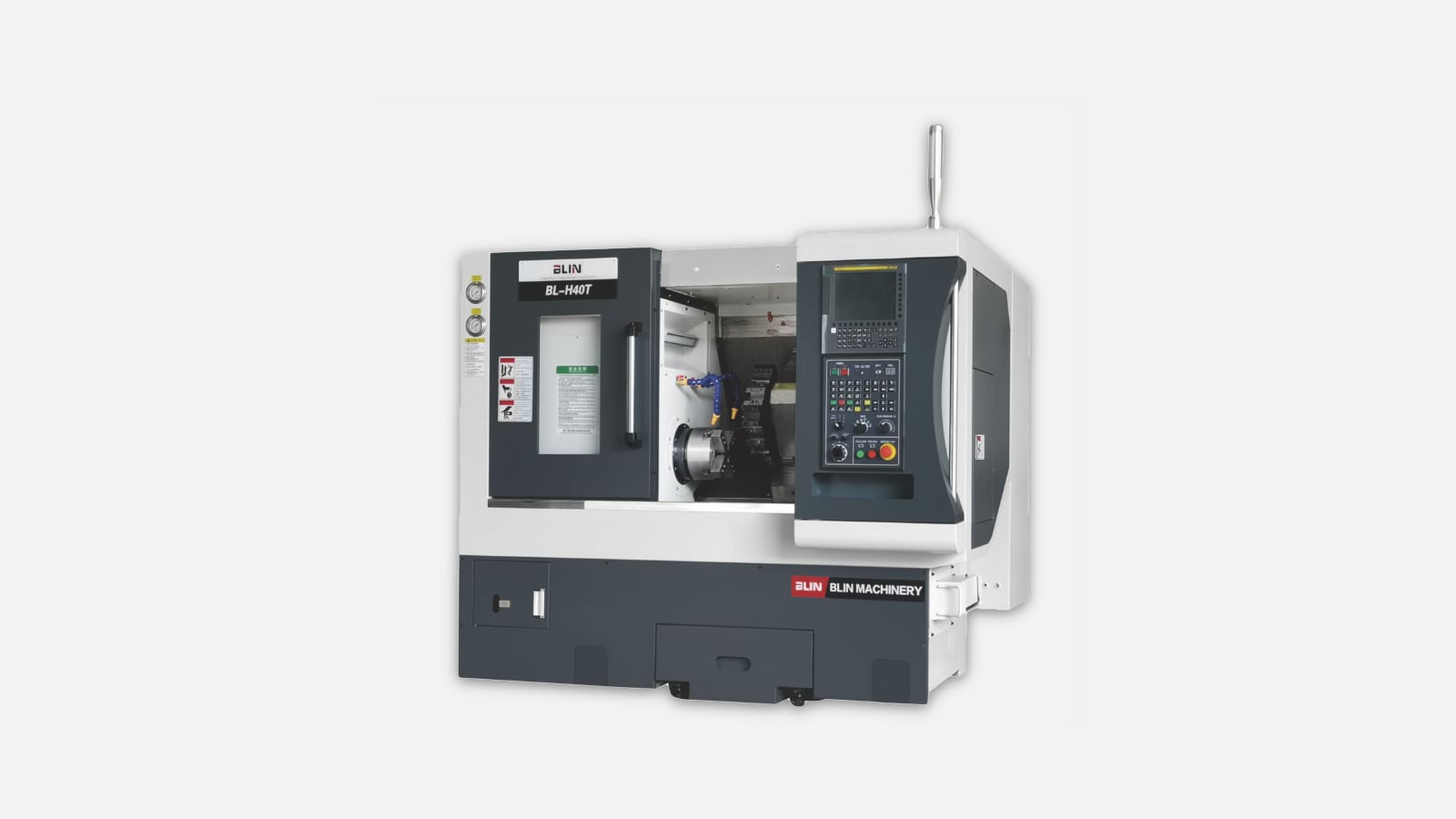

Lathe with Slant Bed BL-H40T (TCTY) BLIN

Standard series lathe BL-H40T. Models: BL-H40T, TC, TY.

Chuck6"/8"*
Distance above bed400 mm
Maximum turning length300/290* mm
Standard turning diameter150/200* mm
Maximum turning diameter310 mm
Maximum rod diameter44/51* mm
Spindle speed5000/4000* RPM
Spindle taperA2-5
Spindle bore56/66* mm
Spindle motor power11 kW
Rapid traverse in X/Z axes30 m/min
Movement in X/Z axis180/320 mm
Tool system type8/12-T positional turret head
Tool shank25x25 (20x20 12)* mm
TaperMT4
Quill travel70 mm
Quill diameter70 mm
Positioning accuracy0.01/1000 mm
Repeatability0.008/1000 mm
Parameters2180×1830×1710 mm
Weight3100 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-H40T (TCTY) is a high-precision lathe machine created by BLIN, one of the leading manufacturers in this segment. This model boasts high performance and accuracy, making it an ideal choice for industrial enterprises that require reliable and efficient machines.

This lathe machine has several advantages over other models, including a high spindle rotation speed, which ensures quick and precise turning operations. It is also equipped with a powerful and reliable motor that provides stability during operation and enhances the machine’s longevity.

The BL-H40T (TCTY) features a flexible configuration, allowing for easy adjustments to meet production needs. It is equipped with a high-precision control system, enabling operators to monitor every step of the machine’s work and control it through software.

Moreover, this machine includes reliable safety systems that ensure operator safety and prevent potential breakdowns. This makes it an excellent choice for industrial enterprises that require safe and dependable equipment.

Overall, the BL-H40T (TCTY) is a high-quality lathe machine that meets the highest standards of performance, reliability, and safety. It is a superb option for industrial enterprises that need effective and reliable equipment capable of operating for many years.

Chuck6"/8"*
Distance above bed400 mm
Maximum turning length300/290* mm
Standard turning diameter150/200* mm
Maximum turning diameter310 mm
Maximum rod diameter44/51* mm
Spindle speed5000/4000* RPM
Spindle taperA2-5
Spindle bore56/66* mm
Spindle motor power11 kW
Rapid traverse in X/Z axes30 m/min
Movement in X/Z axis180/320 mm
Tool system type8/12-T positional turret head
Tool shank25x25 (20x20 12)* mm
TaperMT4
Quill travel70 mm
Quill diameter70 mm
Positioning accuracy0.01/1000 mm
Repeatability0.008/1000 mm
Parameters2180×1830×1710 mm
Weight3100 kg
Design Features
Configuration
H40T - standard machine configuration in basic equipment with an 8-position turret head.
Bed
H40TC - machine with C-axis and driven tool turret head for 12 BMT tools.
H40TY - machine with C-axis and driven tool turret head for 12 BMT tools and Y-axis.

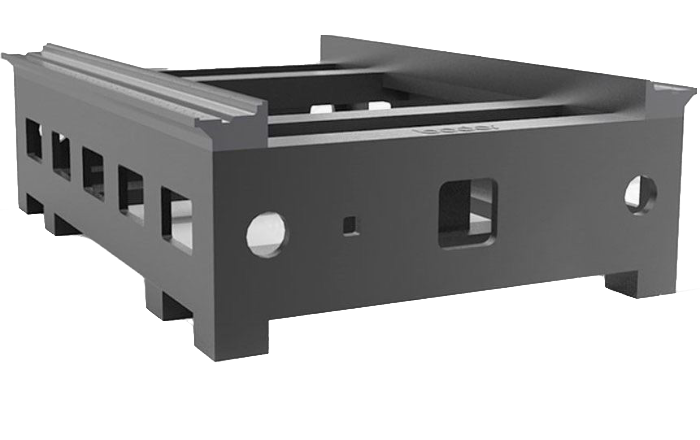

Slant bed lathe made from a monolithic cast iron bed of "Mechanit" class.
Basic configuration

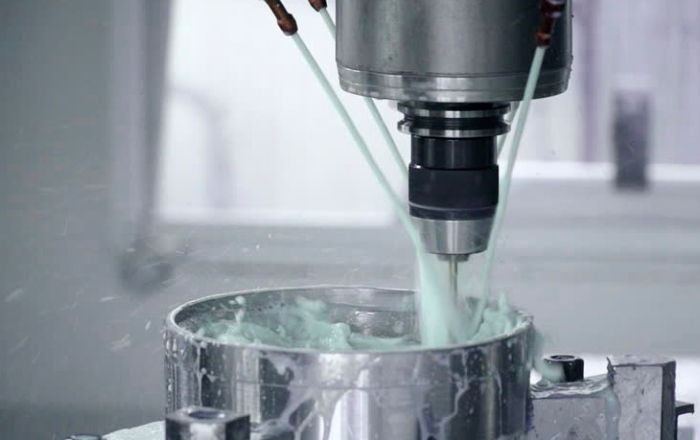

CNC system Siemens. Hydraulic tailstock. Hydraulic chuck. Tool turret. Coolant supply system. Automatic lubrication system. Work area lighting. Full cabinet protection.
Additional options
CNC system Fanuc/GSK. Increased power. Hydraulic chuck. Door open sensor. Tool setup sensor. Chip conveyor. Bar feeder.
