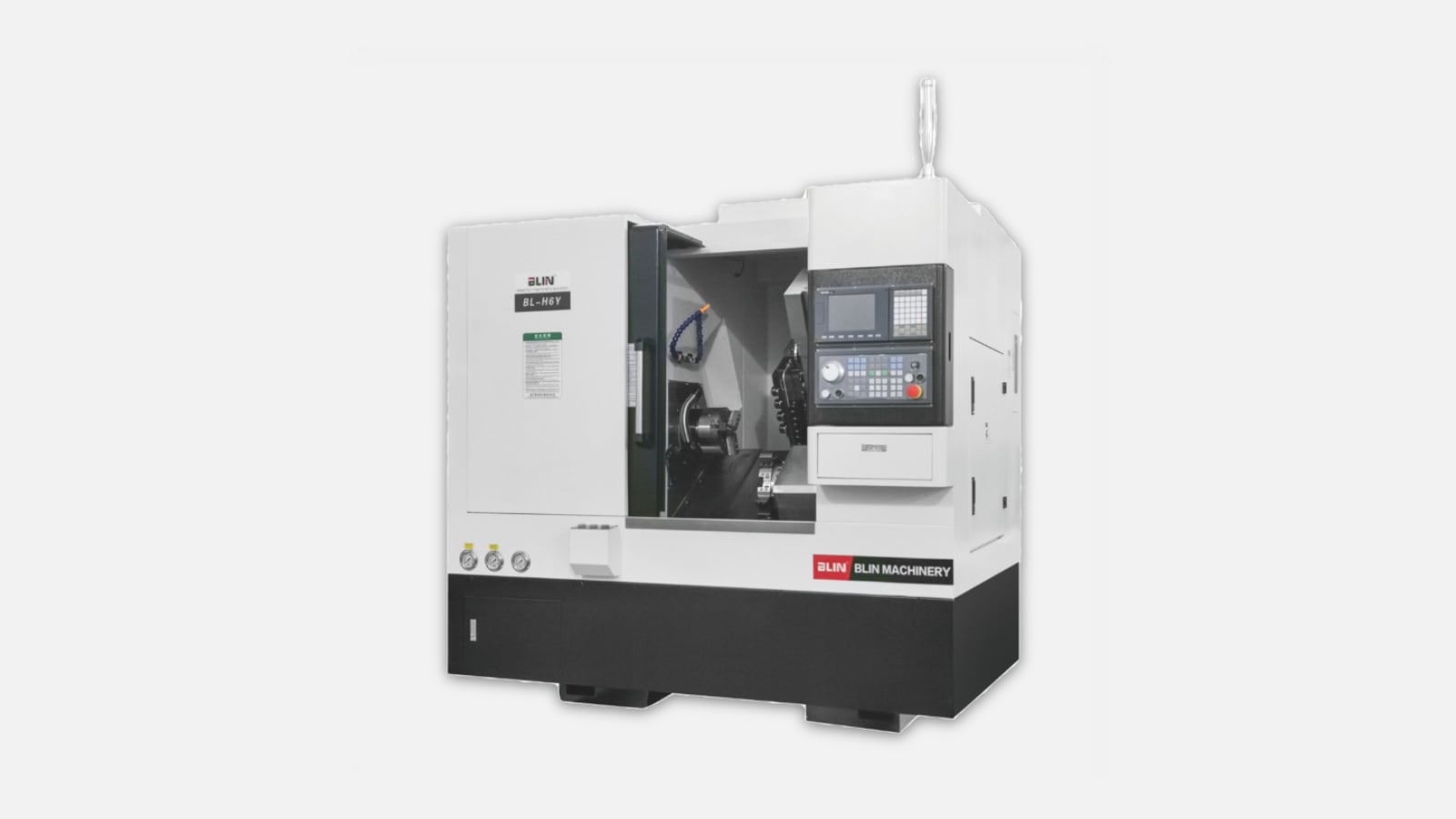

Lathe with an inclined bed BL-H6Y BLIN

Standard series BL-H6 lathe with Y-axis.

Chuck6"/8"*
Distance above bed500 mm
Maximum turning length250 mm
Maximum turning diameter150 mm
Maximum bar diameter44/51* mm
Spindle speed4000/3500* RPM
Spindle taperA2-5/A2-6*
Hole in spindle56/62*
Spindle motor power5.5/7.5(11)
Rapid movements in X/Y/Z axes20/10/20
Movement in X/Y/Z axes400(300*)200250 mm
Type of tool system8T turret head and 4+4 driven tool with Y-axis
Drive tool speed3000 RPM
Size of drive tool colletER25
Tool shank20x20, Ф25 mm
Positioning accuracy0.008
Parameters2100x1520x1940 mm
Weight2800 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-H6Y is a high-precision lathe machine that offers high speed and accuracy in machining. This machine is equipped with a powerful spindle that can operate at high speeds, ensuring fast and efficient material processing.

One of the main features of the BL-H6Y model from BLIN is its high precision. Thanks to the use of advanced technologies and innovative solutions, this machine ensures high machining accuracy, which allows for maximum productivity and quality.

The BL-H6Y also boasts high performance due to its powerful motor and control system. This enables the processing of large volumes of materials in a short time, which is a crucial factor for any production.

One of the key advantages of the BL-H6Y model is its versatility. This machine provides high precision and performance when machining various materials, including metals, wood, and plastics.

Finally, it is worth noting that the BL-H6Y model is reliable and durable. It is made from high-quality materials and equipped with advanced technologies, allowing it to be used for many years without a loss of quality and performance.

Chuck6"/8"*
Distance above bed500 mm
Maximum turning length250 mm
Maximum turning diameter150 mm
Maximum bar diameter44/51* mm
Spindle speed4000/3500* RPM
Spindle taperA2-5/A2-6*
Hole in spindle56/62*
Spindle motor power5.5/7.5(11)
Rapid movements in X/Y/Z axes20/10/20
Movement in X/Y/Z axes400(300*)200250 mm
Type of tool system8T turret head and 4+4 driven tool with Y-axis
Drive tool speed3000 RPM
Size of drive tool colletER25
Tool shank20x20, Ф25 mm
Positioning accuracy0.008
Parameters2100x1520x1940 mm
Weight2800 kg
Design Features
Y-axis in basic configuration
Machine with Y-axis, 8T electric-hydraulic turret head and independent drive tool 4+4 (4 radial tools, 4 axial tools) in basic configuration.

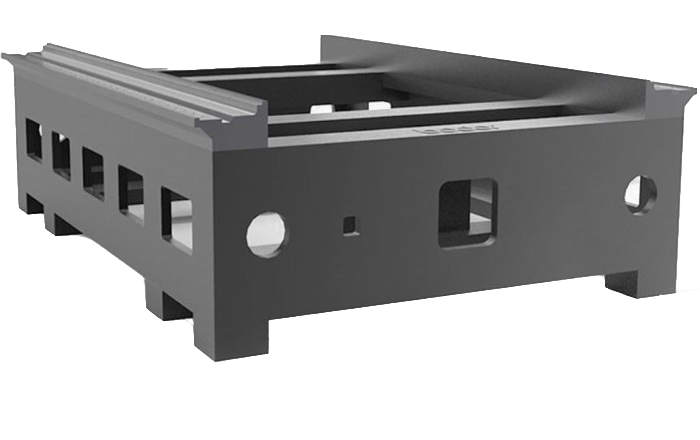

Bed
Slant bed lathe made of a monolithic cast iron bed of "Mechanit" class.
Base configuration
CNC System Syntec
Additional options
Hydraulic Chuck
Tool Turret Head
Coolant Supply System
Automatic Lubrication System
Working Area Lighting
Full Cabinet Protection
Power Increase
Door Opening Sensor
Chip Conveyor
Tool Setup Sensor
