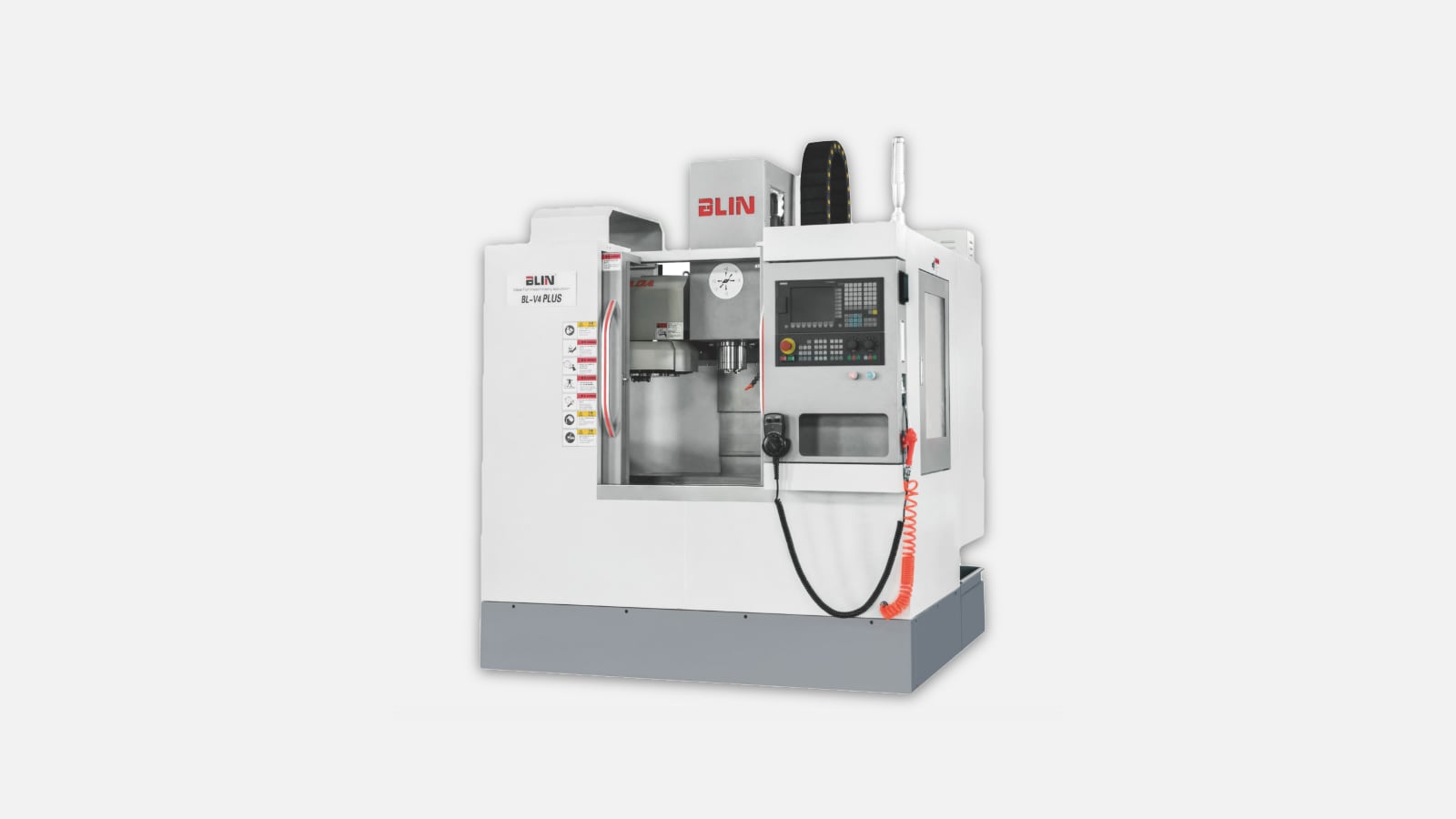

Milling Processing Center BL-V4 PLUS

BL-V4 PLUS: universal milling machine.

Table800×320 mm
T slot (quantity x width x distance)3x14x100 mm
Table load200 kg
Movement along X/Y/Z axes450/300/480 mm
Distance from spindle nose to table105-585 mm
Distance from spindle center to column375 mm
Spindle taperBT40
Spindle drive5.5 kW
Speed range8000 (10000/12000) rpm
Rapid traverse speed X/Y/Z36/36/24 m/min
Positioning accuracy±0.005 mm
Repeatability±0.003 mm
Tool magazine12 pcs
Parameters1830×1870×2120 mm
Weight2400 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-V4 PLUS is a high-performance milling machine designed by BLIN for professional users seeking reliable and efficient equipment for their projects. This machine features a powerful motor, high precision, and speed, as well as a wide range of settings.

The BL-V4 PLUS is equipped with an intelligent control system that ensures accuracy and reliability during operation. As a result, users can create high-quality products with great precision and speed. This makes the machine an ideal choice for production lines where performance and precision are required.

To ensure maximum productivity and efficiency, the BL-V4 PLUS is equipped with a powerful electric motor with high torque and rotation speed. This allows the machine to process various materials, including metals, plastics, and wood, with high speed and accuracy.

Additionally, the BL-V4 PLUS features a wide range of settings that allow the user to customize the machine according to their project requirements. This includes adjusting the speed, cutting depth, cutting angle, and other parameters that can be modified based on project needs.

Finally, the BL-V4 PLUS boasts a sturdy and reliable construction that ensures durability and dependability during operation. This makes it an ideal choice for heavy use in production environments. If you are looking for a high-performance and reliable milling machine, the BL-V4 PLUS is an excellent choice for you.

Table800×320 mm
T slot (quantity x width x distance)3x14x100 mm
Table load200 kg
Movement along X/Y/Z axes450/300/480 mm
Distance from spindle nose to table105-585 mm
Distance from spindle center to column375 mm
Spindle taperBT40
Spindle drive5.5 kW
Speed range8000 (10000/12000) rpm
Rapid traverse speed X/Y/Z36/36/24 m/min
Positioning accuracy±0.005 mm
Repeatability±0.003 mm
Tool magazine12 pcs
Parameters1830×1870×2120 mm
Weight2400 kg
Design Features
Ball Screw
The servo motor is connected to the ball screw directly via a spring coupling along the X/Y/Z axes. The high precision of the servo motors is executed without errors by the machine's ball screw.

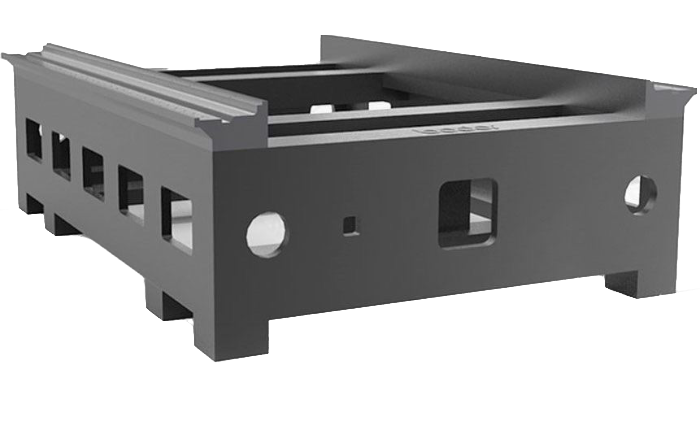

Bed Frame Design
The design of the machine bed is based on German technology and made of cast iron. This ensures minimal residual stresses in the bed and a reduced tendency to deform.
CNC System
Siemens CNC system in the basic configuration, with optional Fanuc CNC.
Model
The combination of a good basic configuration, functionality, and the possibility of retrofitting the machine for virtually any purpose makes this model one of the most sought-after in the manufacturers' lineup.
