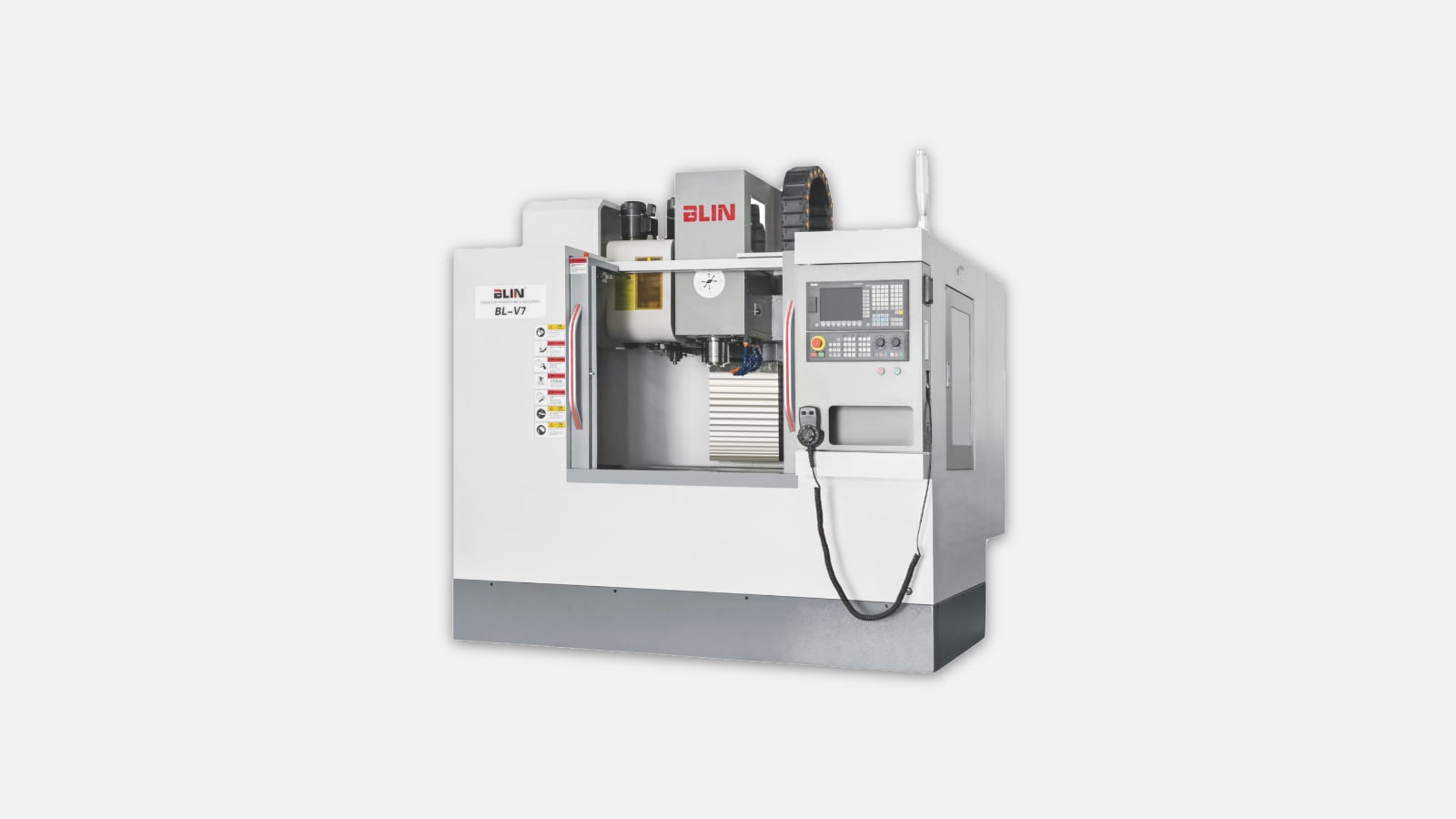

Milling Processing Center BLIN BL-V7

Milling Machining Center BLIN BL-V7.

Table900×400 mm
T slot(number x width x distance)3x14x100 mm
Load on table300 kg
Movement along X/Y/Z axis720/450/470 mm
Distance from spindle nose to table120-590 mm
Distance from spindle center to column440 mm
Spindle taperBT40
Spindle drive5.5 kW
Speed range8000 (10000/12000) rev/min
Rapid movement speed X/Y/Z36/36/30 m/min
Positioning accuracy±0.005 mm
Repeatability±0.003 mm
Tool magazine16 pcs
Parameters2200×2000×2160 mm
Weight3200 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-V7 is a next-generation universal milling machine from the renowned Chinese manufacturer BLIN. This model has been developed and manufactured using the most advanced technologies and materials, ensuring high precision and productivity.

The main feature of the BL-V7 machine is its versatility. It can be used for a wide range of tasks, including milling, drilling, cutting, and engraving. This makes it suitable for various industries, including mechanical engineering, furniture production, sign manufacturing, and more.

One of the key characteristics of the BL-V7 machine is its high precision. It is equipped with high-precision spindles and a CNC control system, allowing milling accuracy of up to 0.005 mm. This ensures high quality in surface treatment and finished products.

Another important feature of the BL-V7 machine is its high productivity. It is equipped with a powerful motor and fast axis movements, enabling quick and efficient execution of various tasks. Additionally, it can handle large volumes of material, allowing for effective processing of large workpieces.

The BL-V7 machine also boasts a high level of reliability and durability. It is made from quality materials and equipped with reliable components, which allows it to operate for many years without significant breakdowns or repairs.

Overall, the BL-V7 milling machine from BLIN is an excellent solution for those seeking a high-precision, versatile, and productive machine for working with various materials. It possesses all the necessary characteristics to ensure high quality and efficiency in operation.

Table900×400 mm
T slot(number x width x distance)3x14x100 mm
Load on table300 kg
Movement along X/Y/Z axis720/450/470 mm
Distance from spindle nose to table120-590 mm
Distance from spindle center to column440 mm
Spindle taperBT40
Spindle drive5.5 kW
Speed range8000 (10000/12000) rev/min
Rapid movement speed X/Y/Z36/36/30 m/min
Positioning accuracy±0.005 mm
Repeatability±0.003 mm
Tool magazine16 pcs
Parameters2200×2000×2160 mm
Weight3200 kg
Design Features

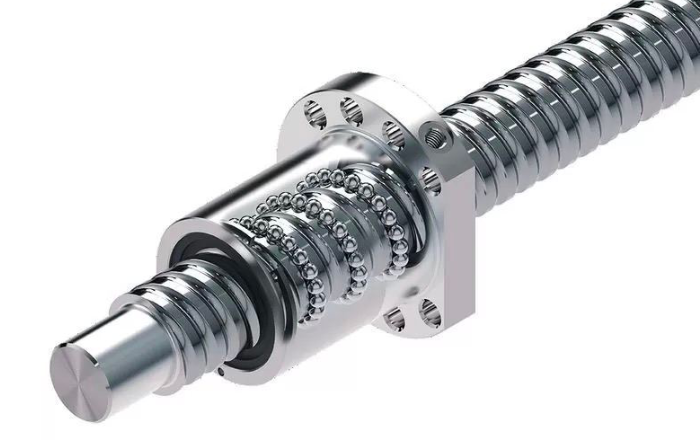

Ball screw
The servo motor on the X/Y/Z axes is connected to the ball screw directly via a spring coupling. This ensures a short transmission, low noise during high-speed and high-load movements, and minimal backlash during the reversible movements of the machine's actuators.

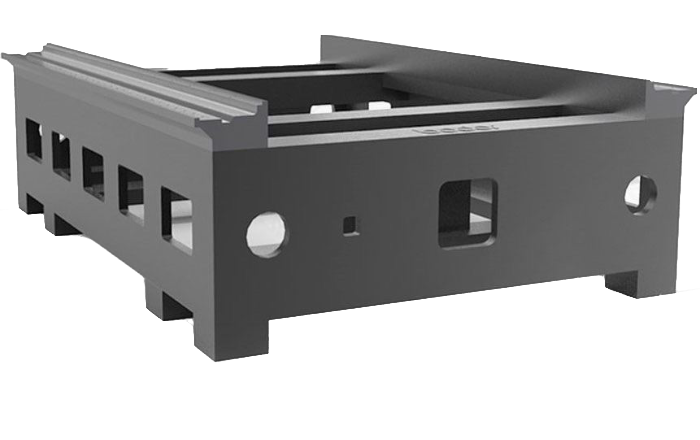

Bed construction
The machine's bed is designed according to German technology and made of cast iron. This ensures minimal residual stresses in the bed and reduces the tendency to deform.
CNC System
Siemens CNC system in the basic configuration, with an optional Fanuc CNC.
Model
The combination of a good basic configuration, functionality, and the ability to enhance the machine for almost any purpose makes this model one of the most sought-after in the lineup of manufacturers.
