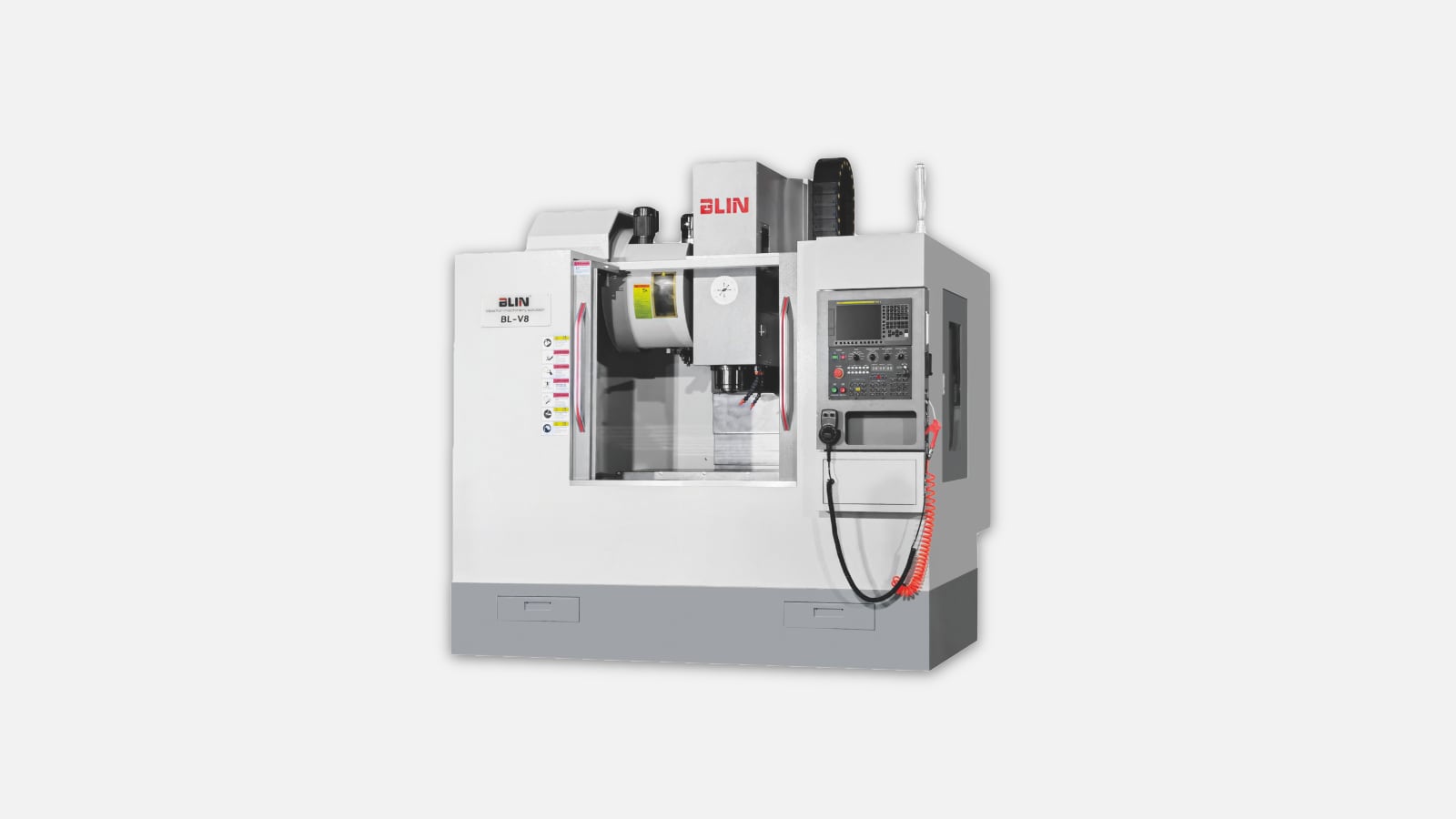

Milling Machining Center BLIN BL-V8

Milling processing center BLIN BL-V8.

Table950×500 mm
T slot(quantity x width x distance)4x18x100 mm
Load on table500 kg
Travel along X/Y/Z axis850/510/510 mm
Distance from spindle end to table150-660 mm
Distance from spindle center to column600 mm
Spindle taperBT40
Spindle drive5.5 kW
Speed range8000 (10000/12000) rpm
Rapid traverse speed X/Y/Z36/36/24 m/min
Positioning accuracy±0.005 mm
Repeatability±0.003 mm
Tool magazine24 pcs
Parameters2600×2750×3050 mm
Weight6000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-V8 is a next-generation milling machine designed to tackle a wide range of tasks in the metalworking industry. It is equipped with a powerful motor and a high-precision spindle, allowing it to handle the most demanding jobs.

This machine offers high accuracy and reliability, ensuring impeccable quality in the processing of parts. It features high-precision linear guides and ball screws, which contribute to achieving excellent precision and repeatability in machining.

The BL-V8 is easily adjustable for various types of materials and tasks, thanks to its wide range of speeds and feeds. It can process metal workpieces of varying complexity and sizes, as well as work with different types of mills and drills.

This machine boasts a simple and user-friendly control system, enabling quick adjustments for specific tasks. It also features a modern design and compact dimensions, making it convenient and ergonomic to use.

The BL-V8 is a reliable and powerful milling machine that is perfect for metalworking in production or workshop settings. It ensures high precision and repeatability in processing, as well as a wide range of settings and capabilities.

Table950×500 mm
T slot(quantity x width x distance)4x18x100 mm
Load on table500 kg
Travel along X/Y/Z axis850/510/510 mm
Distance from spindle end to table150-660 mm
Distance from spindle center to column600 mm
Spindle taperBT40
Spindle drive5.5 kW
Speed range8000 (10000/12000) rpm
Rapid traverse speed X/Y/Z36/36/24 m/min
Positioning accuracy±0.005 mm
Repeatability±0.003 mm
Tool magazine24 pcs
Parameters2600×2750×3050 mm
Weight6000 kg
Design Features

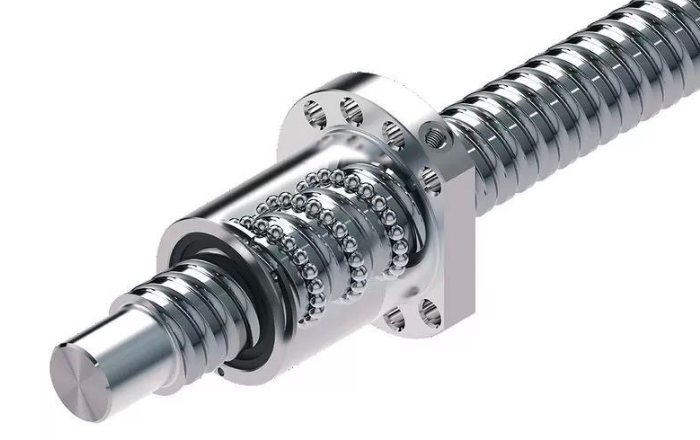

Ball screw
On the X/Y/Z axes, the servo motor is connected to the ball screw directly via a spring coupling. This ensures a short transmission, low noise during rapid and high-load movements, and minimal backlash during the reverse movements of the machine's actuators.
Bed design
The design of the machine's bed is engineered using German technology and made of cast iron. This ensures minimal residual stresses in the bed and a tendency to deformation.
CNC System
Siemens CNC system in the basic configuration, with an additional option - Fanuc CNC.
Model
The combination of good basic configuration, functionality, and the possibility of retrofitting the machine for virtually any purpose makes this model one of the most sought-after in the lineup of manufacturers.
