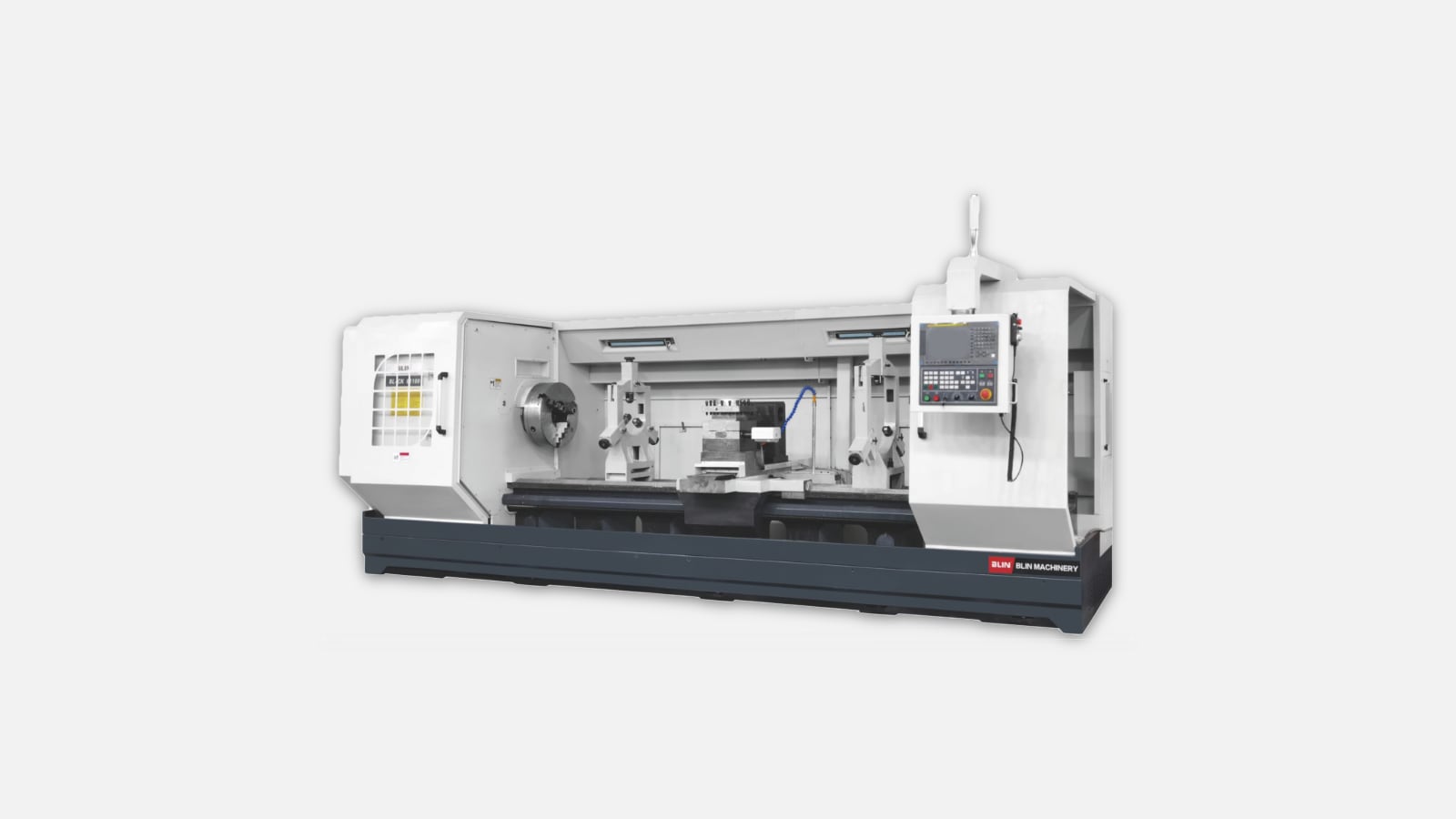

Heavy Series BL-CK Lathes from BLIN

Lathes with a straight bed of the heavy series BL-CK: BL-CK61100, BL-CK61125, BL-CK61140, BL-CK611160.

Width of bed BL-CK61100755 mm
Distance above bed1000 mm
Distance above carriage610 mm
Maximum turning length1500/3000/4000/5000/6000 mm
Maximum weight6000 kg
Spindle speed4-300 rpm
Spindle taperA2-15
Holes in spindle130 mm
Chuck1000 mm
Spindle motor power22 kW
Rapid movements along X/Z axes4/6 m/min
Movement along X axis520 mm
Movement along Z axis1350/2850/3850/4850/5850 mm
Number of tools4 pcs
Tool shank40x40 mm
Diameter of tailstock quill160 mm
Quill stroke300 mm
TaperMT6
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-CK is a line of high-precision lathes designed for machining parts from various materials, including metal, plastic, wood, and more. They are equipped with a modern control system and can operate in automatic mode.
Models: BL-CK61100, BL-CK61125, BL-CK61140, BL-CK611160.

One of the main features of this series is its high machining accuracy. Thanks to the use of quality materials and technologies, the machine can achieve machining precision of up to 0.01 mm. This allows for the production of parts with a high degree of accuracy and quality.

BL-CK also boasts high productivity. The spindle speed can reach up to 12,000 revolutions per minute, enabling quick and efficient processing of parts. A large working area and the option to install additional equipment allow for the realization of various projects.

For user convenience, the machine is equipped with a modern control system that provides a simple and user-friendly interface, as well as the ability to program and save settings. This allows for quick switching between tasks and enhances work efficiency.

BL-CK is a machine that combines high precision, performance, and ease of use. It is ideal for producing parts in small and medium-sized enterprises, as well as for custom orders.

Width of bed BL-CK61100755 mm
Distance above bed1000 mm
Distance above carriage610 mm
Maximum turning length1500/3000/4000/5000/6000 mm
Maximum weight6000 kg
Spindle speed4-300 rpm
Spindle taperA2-15
Holes in spindle130 mm
Chuck1000 mm
Spindle motor power22 kW
Rapid movements along X/Z axes4/6 m/min
Movement along X axis520 mm
Movement along Z axis1350/2850/3850/4850/5850 mm
Number of tools4 pcs
Tool shank40x40 mm
Diameter of tailstock quill160 mm
Quill stroke300 mm
TaperMT6
Design Features
Straight bed
Lathe with a straight bed for heavy-duty machining. Bed guide width 755 mm, spindle diameter 130.
Standard equipment
CNC system Siemens
Additional options
4-position turret
Coolant supply system
Manual tailstock
Manual chuck
Automatic lubrication system
Working area lighting
Servo motors and drives on X/Z axes
Fixed steady rest
CNC system Fanuc GSK
Increased power
Hydraulic chuck
Hydraulic tailstock
Air conditioner for electrical cabinet
Increased spindle hole
Turret head for 6/8 tools
Door opening sensor
Tooling kit for turret head
