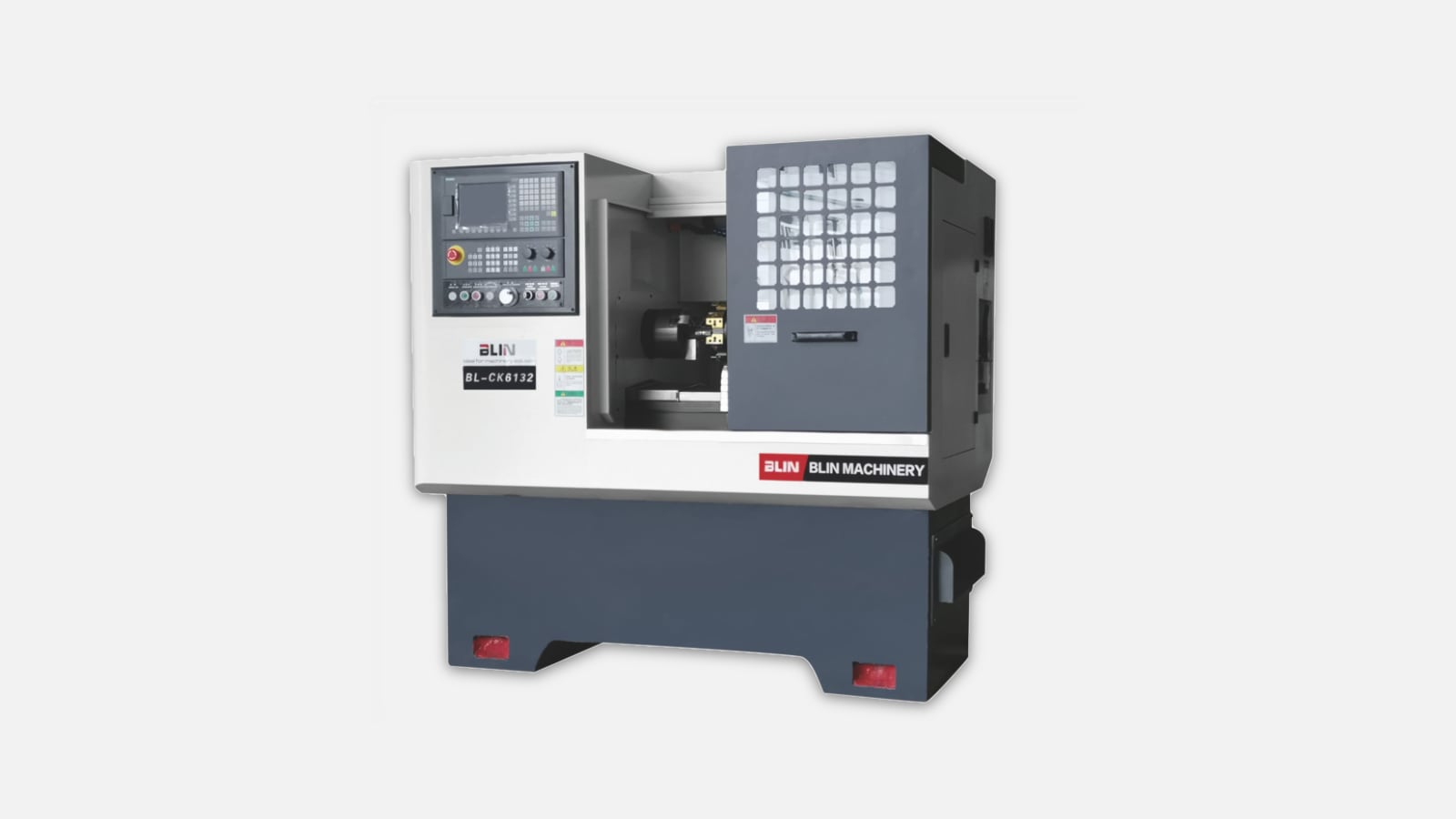

Small Batch Lathe BL-CK6132 BLIN

CNC Lathe Machine for Small Series BL-CK6132.

CNC TypeSIEMENS 808D
Distance Between Bed Rails350 mm
Maximum Diameter of Workpiece Over Bed320 mm
Maximum Diameter of Workpiece Over Tool Post160 mm
Spindle Hole Diameter50 mm
Spindle End DesignA2-5
Spindle Speed200-2500 RPM
Spindle Motor Power5.5 kW
X Axis Travel260 mm
Z Axis Travel450 mm
Rapid Movement Speed on X/Z Axes8.8 m/min
Diameter and Pitch of Ball Screw on X Axis25 / 4 mm
Diameter and Pitch of Ball Screw on Z Axis40 / 6 mm
Number of Tool Positions4 (opt. 6/8)
Rectangular Cross-Section Tool Holder24x24 mm
Taper of TailstockMT-4
Tailstock Travel130 mm
Diameter of Tailstock Quill58 mm
Dimensions1810x1160x1600 mm
Weight1600 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-CK6132 is a high-precision turning machine with a flat bed that can be used for machining both metallic and non-metallic materials. It is designed to perform various operations, such as boring and turning.

This machine is equipped with a high-quality control system that allows for easy adjustments to perform different tasks. It features simple and intuitive controls, enabling operators to quickly learn how to operate it.

The BL-CK6132 offers high precision in detail machining due to its rigid structure and high-quality spindle system. It can process parts with high accuracy and repeatability, making it an ideal choice for producing high-precision components.

With this machine, you can machine parts of various shapes and sizes. It has a wide range of speeds and feeds, allowing you to select the most effective processing mode for each specific part.

The BL-CK6132 is characterized by high productivity and reliability, making it suitable for intensive industrial production. It provides high processing speeds without compromising quality and accuracy, which increases production efficiency and reduces machining costs.

Overall, the BL-CK6132 is a reliable and productive lathe that can deliver high precision and repeatability in part machining. It is perfectly suited for use in an intensive industrial environment and can be utilized for machining various materials.

CNC TypeSIEMENS 808D
Distance Between Bed Rails350 mm
Maximum Diameter of Workpiece Over Bed320 mm
Maximum Diameter of Workpiece Over Tool Post160 mm
Spindle Hole Diameter50 mm
Spindle End DesignA2-5
Spindle Speed200-2500 RPM
Spindle Motor Power5.5 kW
X Axis Travel260 mm
Z Axis Travel450 mm
Rapid Movement Speed on X/Z Axes8.8 m/min
Diameter and Pitch of Ball Screw on X Axis25 / 4 mm
Diameter and Pitch of Ball Screw on Z Axis40 / 6 mm
Number of Tool Positions4 (opt. 6/8)
Rectangular Cross-Section Tool Holder24x24 mm
Taper of TailstockMT-4
Tailstock Travel130 mm
Diameter of Tailstock Quill58 mm
Dimensions1810x1160x1600 mm
Weight1600 kg
Design Features

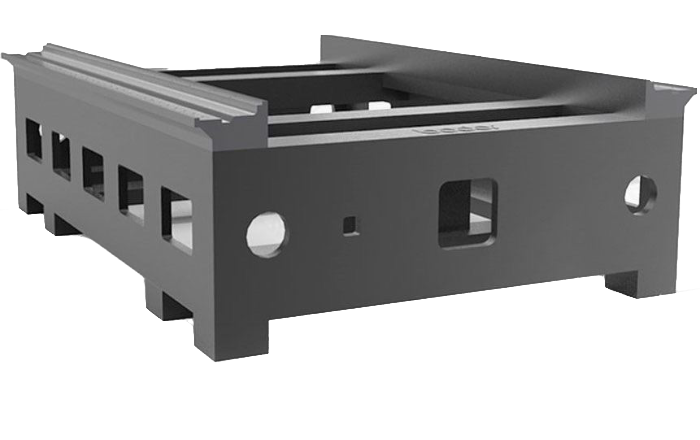

Monoblock bed
The machine has a solid cast iron base, which ensures high rigidity of the machine structure and, consequently, its 100% stability
Ball screw
High accuracy of movements along the axes is achieved using ball screw drives (BSU). The servomotor on the X/Z axes is connected to the BSU directly via a spring coupling. This provides a short transmission, low noise during accelerated and heavily loaded movements, and minimal backlash during reversible movements of the machine's actuators. The high accuracy of the servomotors is precisely compensated by the BSU of the machine.

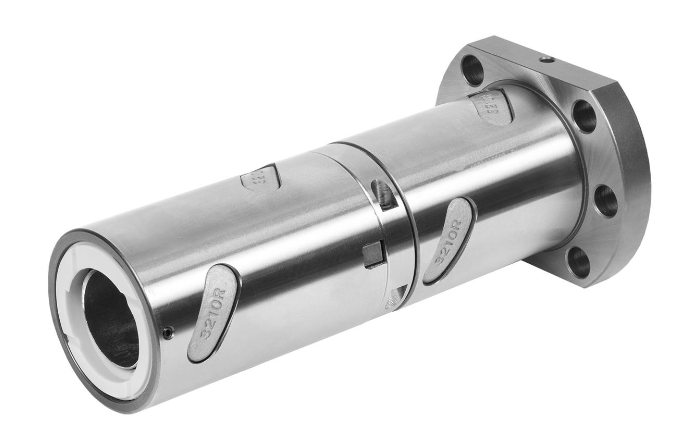

Extended-length ball screw nut
The ball screw nut, which is twice the standard length and pre-tensioned, allows for, on one hand, rigidity and instant response to the servomotor movement, and on the other hand, ensures minimal temperature changes since the increased number of balls in the nut provides uniform thermal expansion during accelerated movements of the machine's components.
Accuracy
Provides high machining accuracy for parts, which is especially important in production.
Working at speed
The machine has stability and reliability at high speeds, which increases productivity.
Wide speed adjustment range
Allows the machine to be used for various tasks, making it versatile.
