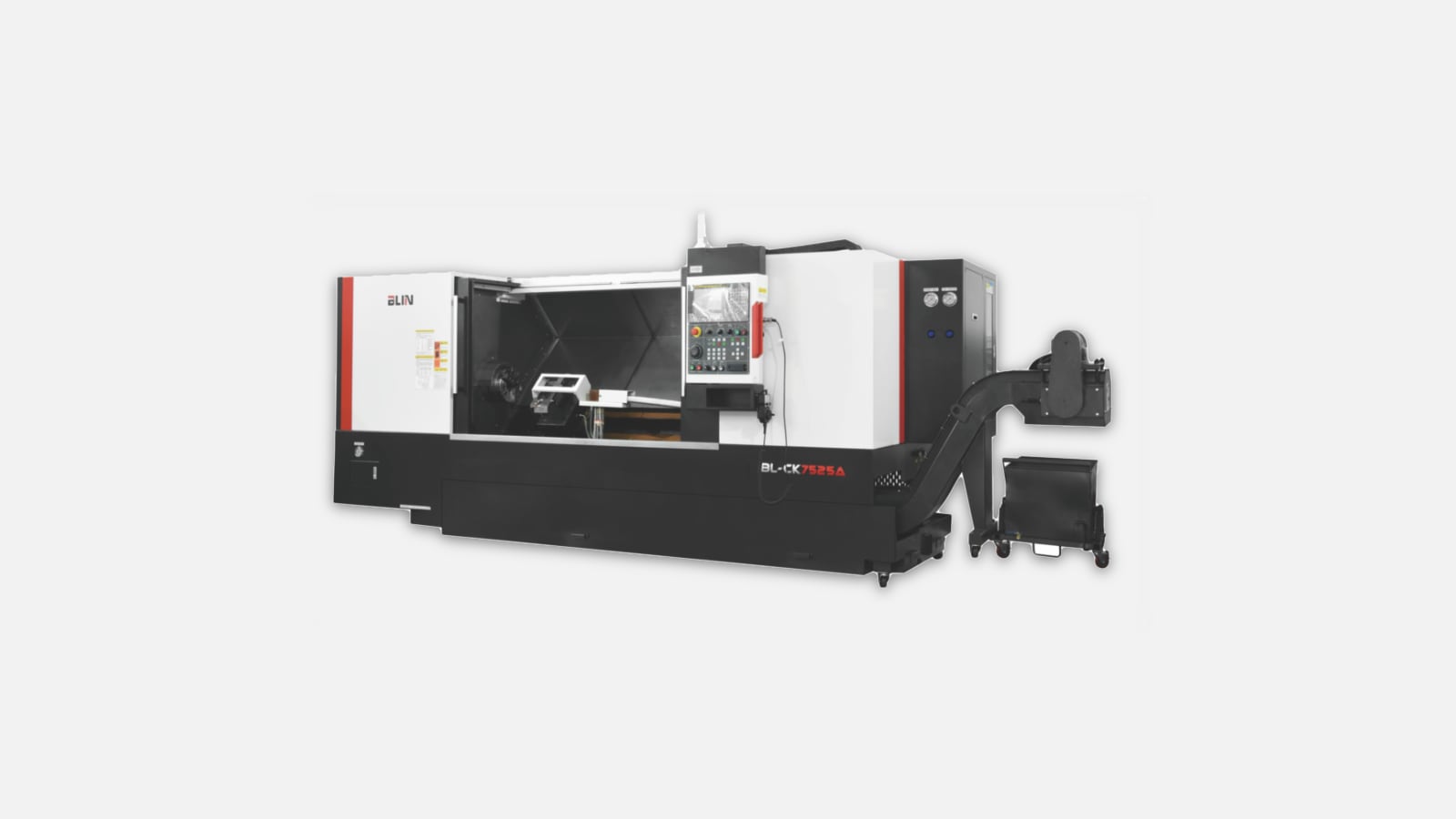

BL-CK75 BLIN Series Lathe for Heavy Machining

Lathes with inclined bed series BL-CK. Models: CK7516A, CK7520A, CK7525A, CK7530, CK7550.

Max workpiece diameter over bed400 mm
Max workpiece diameter over carriage260 mm
Max workpiece length1000 mm
Maximum load on table360(6")/550(8") kg
Chuck6/8*
Spindle taperA2-5
Diameter of spindle hole57 mm
Spindle speed80-3500 rpm
Spindle drive power11 kW
Cutter cross-section size20x20/32 mm
Diameter of tailstock spindle70 mm
Tailstock spindle travel80 mm
Center taperNo.4
Positioning along X/Z axes0.009/0.013 mm
Repeatability of positioning along X/Z axes0.004/0.006 mm
Parameters2370/3200x1700x1850 mm
Weight3000/4500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-CK75 lathe is a high-precision machine designed for processing various materials. The machine is equipped with high-quality components and modern control systems, ensuring stable and accurate operation.

Models CK7516A, CK7520A, CK7525A, CK7530, and CK7550 feature a powerful spindle that allows for high-speed and precise material processing. The built-in cooling system maintains a stable temperature on the working surface, further enhancing the quality of the machining.

The BL-CK75 is equipped with an advanced control system that makes it easy to set up and monitor the machining process. Control is achieved through specialized software, which enables high-precision and high-speed processing of materials.

The BL-CK75 is ideally suited for machining metal and non-metal materials, such as aluminum, steel, wood, and plastic. It can be used in various industries, including machine engineering, electronics manufacturing, parts processing, and many others.

Overall, the BL-CK75 series of machines represents reliable and high-tech equipment that allows for high-precision and high-speed material processing. It is perfectly suited for use in various industries and can become an indispensable assistant in your production activities.

Max workpiece diameter over bed400 mm
Max workpiece diameter over carriage260 mm
Max workpiece length1000 mm
Maximum load on table360(6")/550(8") kg
Chuck6/8*
Spindle taperA2-5
Diameter of spindle hole57 mm
Spindle speed80-3500 rpm
Spindle drive power11 kW
Cutter cross-section size20x20/32 mm
Diameter of tailstock spindle70 mm
Tailstock spindle travel80 mm
Center taperNo.4
Positioning along X/Z axes0.009/0.013 mm
Repeatability of positioning along X/Z axes0.004/0.006 mm
Parameters2370/3200x1700x1850 mm
Weight3000/4500 kg
Design Features
Base
Inclined bed lathe made of a solid cast iron bed. This model of lathe features components from leading global manufacturers.
Standard equipment
CNC system Siemens
Additional options
Automatic lubrication system
8-position turret head
Hydraulic chuck
Set of auxiliary tooling
Chip removal system
Hydraulic tailstock
Work lighting
CE standards
Three-color signal lamp
Hydraulic foot switch
Tool set
CNC system Fanuc/GSK
Increased power
Air conditioner for electrical cabinet
12-tool turret head by Sauter
Door open sensor
Air conditioner for electrical cabinet
Chip conveyor
