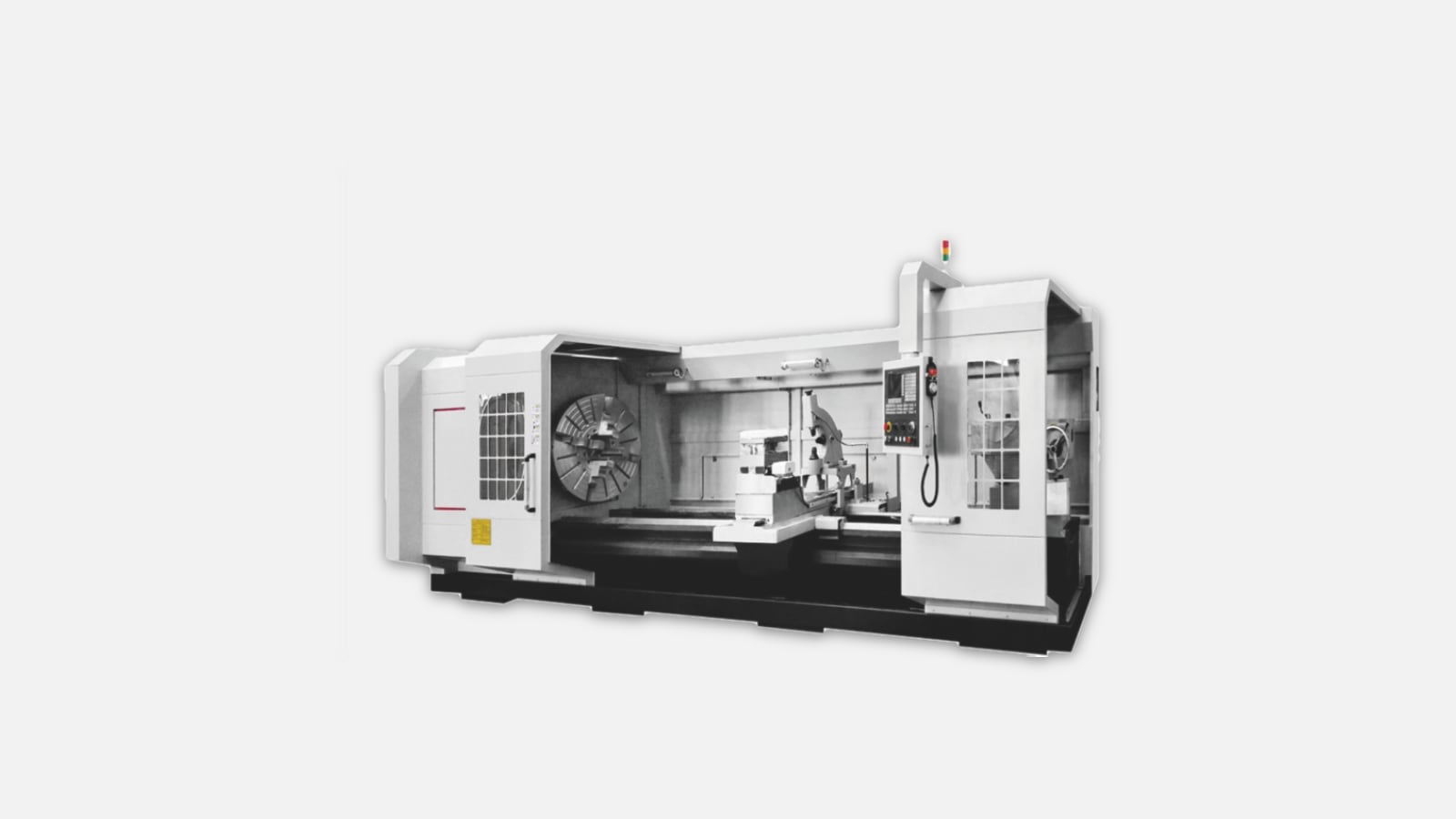

Heavy Series BL-CKW BLIN Lathes

Lathes with a flat bed of the BL-CKW series. Models: BL-CKW61125, BL-CKW61140, BL-CKW61160, BL-CKW61180, BL-CKW61200.

Width of bed1100 mm
Distance over bed1250 mm
Distance over carriage710 mm
Maximum turning length3000-10000 mm
Maximum weight10000/20000/30000 kg
Spindle speed10-300 rpm
Spindle taperA2-15
Spindle hole100 mm
Chuck1250 mm
Spindle motor power37 kW
Rapid movements along X/Z axes4/6 m/min
Movement along X axis700 mm
Movement along Z axis2850-9850 mm
Tool quantity4 pcs
Tool shank50x50 mm
Diameter of quill220 mm
Quill stroke300
Parameters6700-13700x2550x2350 mm
Weight22600-28900 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-CKW models from the manufacturer BLIN are compact and powerful devices designed for professional metal processing tasks. The machine offers high precision and reliability, making it an ideal choice for use in small to medium-sized production environments.

The main advantages of the BL-CKW machine are its high speed and processing accuracy, as well as the wide range of capabilities it provides. With this machine, various materials such as steel, aluminum, copper, brass, and other metals can be easily processed.

One of the key features of the BL-CKW model is its compact size. The compactness allows for easy mobility of the machine within production workshops, simplifying its use and saving space in the production area.

The BL-CKW machine also boasts significant power, enabling it to work with challenging materials like steel. As a result, it allows for the processing of large volumes of material in a short period.

An important aspect of the BL-CKW machine is its ease of use and maintenance. This enables users to quickly master its operation and utilize it in their tasks without significant difficulty.

Overall, the BL-CKW61125, BL-CKW61140, BL-CKW61160, BL-CKW61180, and BL-CKW61200 models from the manufacturer BLIN are an excellent choice for professionals seeking a high-tech device with high precision and reliability. It has all the necessary features for effective metalworking and can be utilized across various industrial sectors.

Width of bed1100 mm
Distance over bed1250 mm
Distance over carriage710 mm
Maximum turning length3000-10000 mm
Maximum weight10000/20000/30000 kg
Spindle speed10-300 rpm
Spindle taperA2-15
Spindle hole100 mm
Chuck1250 mm
Spindle motor power37 kW
Rapid movements along X/Z axes4/6 m/min
Movement along X axis700 mm
Movement along Z axis2850-9850 mm
Tool quantity4 pcs
Tool shank50x50 mm
Diameter of quill220 mm
Quill stroke300
Parameters6700-13700x2550x2350 mm
Weight22600-28900 kg
Design Features
Ball screw
On the X, Z, and Y axes, the servo motor is directly connected to the ball screw via a spring coupling. This ensures a short transmission, low noise during rapid and heavily loaded movements, and minimal backlash during the reversing movements of the machine's actuators.
Bed
The machine has a monolithic bed, which provides high rigidity of the machine's structure.
Basic equipment
CNC System Siemens
Additional options
Coolant Supply System
Manual Tailstock
4-Jaw Chuck
Spindle Power 37kW
Automatic Lubrication System
Work Area Lighting
Servo Motors and Drives on X/Z Axes
Tool Set
Machine Manual
CE Standards
Fixed Steady Rest
CNC System Fanuc/GSK
Power Increase
Hydraulic Chuck
Hydraulic Tailstock
Control Cabinet Air Conditioner
Increased Spindle Hole
Turret Head for 6/8/12 Tools
Door Opening Sensor
Tooling Kit for Turret Head
