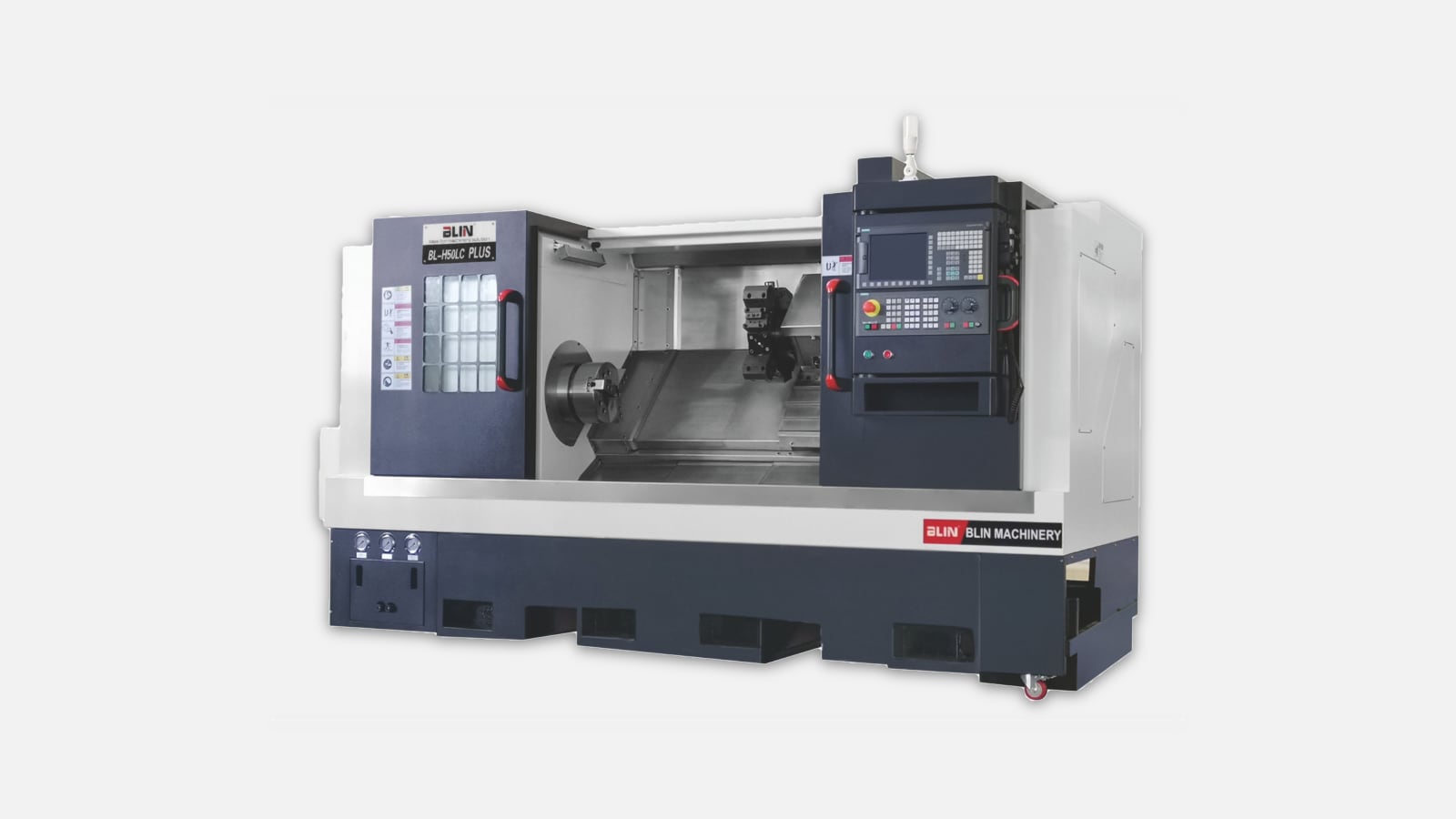

Standard Series Lathe BL-H50L LC PLUS BLIN

CNC lathe of the standard series BL-H50L / LC PLUS with a slant bed.

Maximum turning diameter H50L PLUSF400
Maximum turning length1000/1500/2000/3000 mm
Spindle typeA2-6(A2-8*)
Spindle rotation speed4000(2500*) rpm
Spindle drive motor11(15*) kW
X-axis travel220 mm
Z-axis travel1000/1500/2000/3000 mm
Rapid traverse speed on X/Z axes24/20 m/min
Positioning accuracy on X/Z axes±0.005 mm
Repeatability of positioning accuracy on X/Z axes±0.003
Parameters3300/3800/4300/5300 x 1700×1800 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-H50L / LC PLUS is a high-performance lathe machine developed by the Chinese manufacturer BLIN. It is designed for use in various industries such as machinery, automotive, electronics, and many others.

The machine is equipped with a powerful spindle that provides high rotational speed and precision in machining. As a result, the BL-H50L / LC PLUS allows for fast and high-quality processing of materials with varying hardness. Additionally, the machine boasts high productivity and reliability in operation, which is an important indicator for many industrial enterprises.

The BL-H50L / LC PLUS features a large table size, enabling the processing of larger components. Furthermore, the machine is equipped with a cooling system that helps maintain optimal temperature during material processing. This is crucial for ensuring high-quality machining and longevity of the tools.

One of the unique advantages of the BL-H50L / LC PLUS is the automatic tool change system. This allows for quick and efficient changeover of attachments when processing different materials, saving time and increasing the machine’s productivity.

Overall, the BL-H50L / LC PLUS is a high-tech and reliable lathe machine that ensures high precision in machining and productivity. It is ideally suited for use in industries where high accuracy and efficiency in material processing are required.

Maximum turning diameter H50L PLUSF400
Maximum turning length1000/1500/2000/3000 mm
Spindle typeA2-6(A2-8*)
Spindle rotation speed4000(2500*) rpm
Spindle drive motor11(15*) kW
X-axis travel220 mm
Z-axis travel1000/1500/2000/3000 mm
Rapid traverse speed on X/Z axes24/20 m/min
Positioning accuracy on X/Z axes±0.005 mm
Repeatability of positioning accuracy on X/Z axes±0.003
Parameters3300/3800/4300/5300 x 1700×1800 mm
Design Features
Guides
The models feature roller linear guides.
Cast bed
A cast machine base with a 45° angle, which has a low center of gravity, providing additional vibration resistance and precision during machining.
Basic configuration
SIEMENS 808D Advanced CNC Controller. Hydraulic clamping chuck. Hydraulic tool drive servo for turret. Hydraulic system tailstock.
Additional options
SYNTEC/SIEMENS 828D/Operational portable control panel for CNC. C-axis based on turret Y-axis. Automatic chip conveyor. Tool for setting the sensor.
