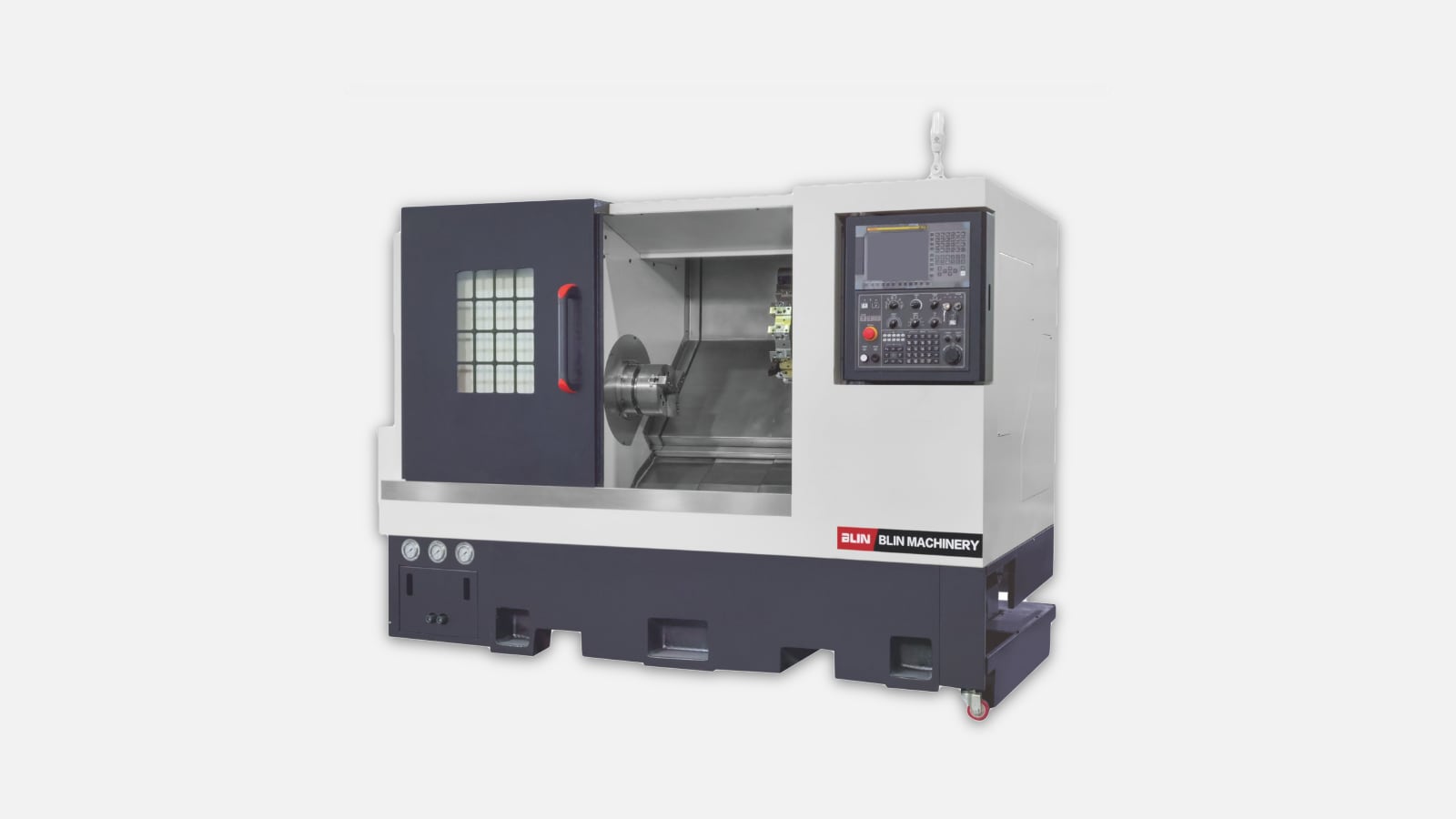

Lathe with Slant Bed BL-H50Q BLIN

Lathe with inclined bed of the standard series BL-H. Models: BBL-H50Q, BL-H50M, BL-H50Y.

Chuck8"/10*
Distance over bed500 mm
Max turning length500 mm
Max turning diameter400 mm
Max bar diameter51 mm
Spindle speed4000/3500 rpm
Spindle taperA2-6
Spindle hole62 mm
Spindle motor power11/15 kW
Rapid movements in X/Z axes30 m/min
Movement in X/Z axis225/500 mm
Tool system type10T turret head
Tool shank25x25.32
TaperMT5
Tailstock movement450 mm
Positioning accuracy0.006 mm
Repeatability0.005 mm
Parameters2500x1500x1700 mm
Weight3800 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-H50Q model is a high-precision lathe machine developed by the Chinese manufacturer BLIN. It is designed for use in manufacturing shops and workshops where high accuracy in material processing is required.

The main advantage of this model is its high precision and processing speed. The machine is equipped with a modern control system that allows for easy management of all processes and delivers high-quality results. As a result, the BL-H50Q is an indispensable tool for machining metal, wood, and other materials.

The BL-H50Q features a robust design made of high-quality materials. It is equipped with a powerful electric motor that enables it to operate at high speeds. Additionally, the machine has a wide range of settings, allowing it to be adjusted for various tasks.

Attention to detail and quality of assembly are other characteristics that make the BL-H50Q an essential tool for manufacturing shops and workshops. It comes with all the necessary equipment to ensure precise and efficient operation.

Overall, the BL-H50Q model is an excellent choice for those seeking a high-precision lathe machine for use in manufacturing shops and workshops. With its power, accuracy, and reliability, this machine will enable quick and effective processing of various materials, significantly enhancing productivity and quality in production.

Chuck8"/10*
Distance over bed500 mm
Max turning length500 mm
Max turning diameter400 mm
Max bar diameter51 mm
Spindle speed4000/3500 rpm
Spindle taperA2-6
Spindle hole62 mm
Spindle motor power11/15 kW
Rapid movements in X/Z axes30 m/min
Movement in X/Z axis225/500 mm
Tool system type10T turret head
Tool shank25x25.32
TaperMT5
Tailstock movement450 mm
Positioning accuracy0.006 mm
Repeatability0.005 mm
Parameters2500x1500x1700 mm
Weight3800 kg
Design Features
Bed
Lathe machine with an inclined bed, made of solid cast iron base of "Mechanit" class. The modular design of the machine has enhanced functionality for automating processes for metalworking.
Configuration
H50T - standard configuration of the machine in basic equipment with an 8-position turret head. H50TC - machine with C-axis and driven tool turret head with 12 BMT tools. H50TY - machine with C-axis, driven tool turret head with 12 BMT tools, and Y-axis.
Basic configuration
CNC system Siemens. Hydraulic tailstock. Hydraulic chuck. Tool turret head. Coolant supply system. Automatic lubrication system. Working area lighting. Full cabinet protection.
Additional options
CNC system Fanuc/GSK. Increased power. Hydraulic chuck. Door open sensor. Tool setup sensor. Chip conveyor. Bar feeder.
