Drilling and Tapping Center BLIN BL-S450

Drilling and Tapping Center BL-S450

Table550x320 mm
Maximum drilling diameter20 mm
T slot (quantity x width x distance)3/14/92 mm
Load on table180 kg
Movement along X/Y/Z axis435/280/330 mm
Distance from spindle tip to table130-460 mm
Spindle coneER32
Spindle drive3.7 kW
Speed range6000 rpm
Rapid movement speed X/Y/Z32/32/32 m/mm
Positioning accuracy±0.008 mm
Parameters1400×1500×2300 mm
Weight1850 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-S450 is a high-performance drilling machine designed for processing various materials. It is equipped with a powerful electric motor and is capable of performing high-precision milling, cutting, and drilling operations.

One of the main features of the BL-S450 model is its high accuracy. The milling machine has a high degree of precision and is capable of processing materials with a high level of complexity. As a result, it can be used in various industries, including automotive, furniture, and electronics manufacturing.

Additionally, the BL-S450 model boasts a reliable design and a high level of safety. It is equipped with a protective system that ensures safety while working with materials. The construction of the milling machine also provides a high degree of stability and durability, allowing for long-term use.

The BL-S450 machine has a compact design and user-friendly control interface, making it easy to operate and quickly adjust for different tasks. It is also equipped with special sensors that provide automatic adjustment of speed and processing depth, enabling high precision and quality in processing.

Overall, the BL-S450 model is a reliable and high-performance tool that can be used in various industries to perform high-precision milling, cutting, and drilling operations.

Table550x320 mm
Maximum drilling diameter20 mm
T slot (quantity x width x distance)3/14/92 mm
Load on table180 kg
Movement along X/Y/Z axis435/280/330 mm
Distance from spindle tip to table130-460 mm
Spindle coneER32
Spindle drive3.7 kW
Speed range6000 rpm
Rapid movement speed X/Y/Z32/32/32 m/mm
Positioning accuracy±0.008 mm
Parameters1400×1500×2300 mm
Weight1850 kg
Design Features
Tool Magazine 8T
Patented tool change system, features high-speed tool change. Can be used as: drilling, milling, and threading machine. Equipped with servo motors.

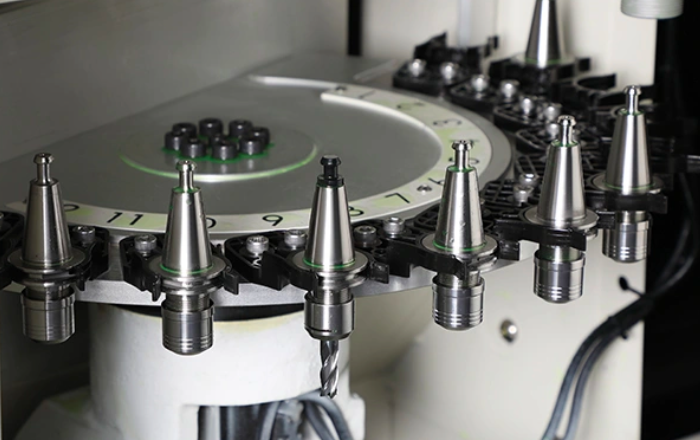

Tool Magazine 16T
Disc magazine with servo drive. High rigidity, performance exceeds that of conventional drilling and threading machines.
CNC System
In the basic configuration, the CNC system is represented by Syntec 6MD, Syntec 22MA. Additionally, a Siemens system can be installed.
Additional Equipment
As an additional option, the processing speed of the products can be increased, and a 4th axis can be added.
