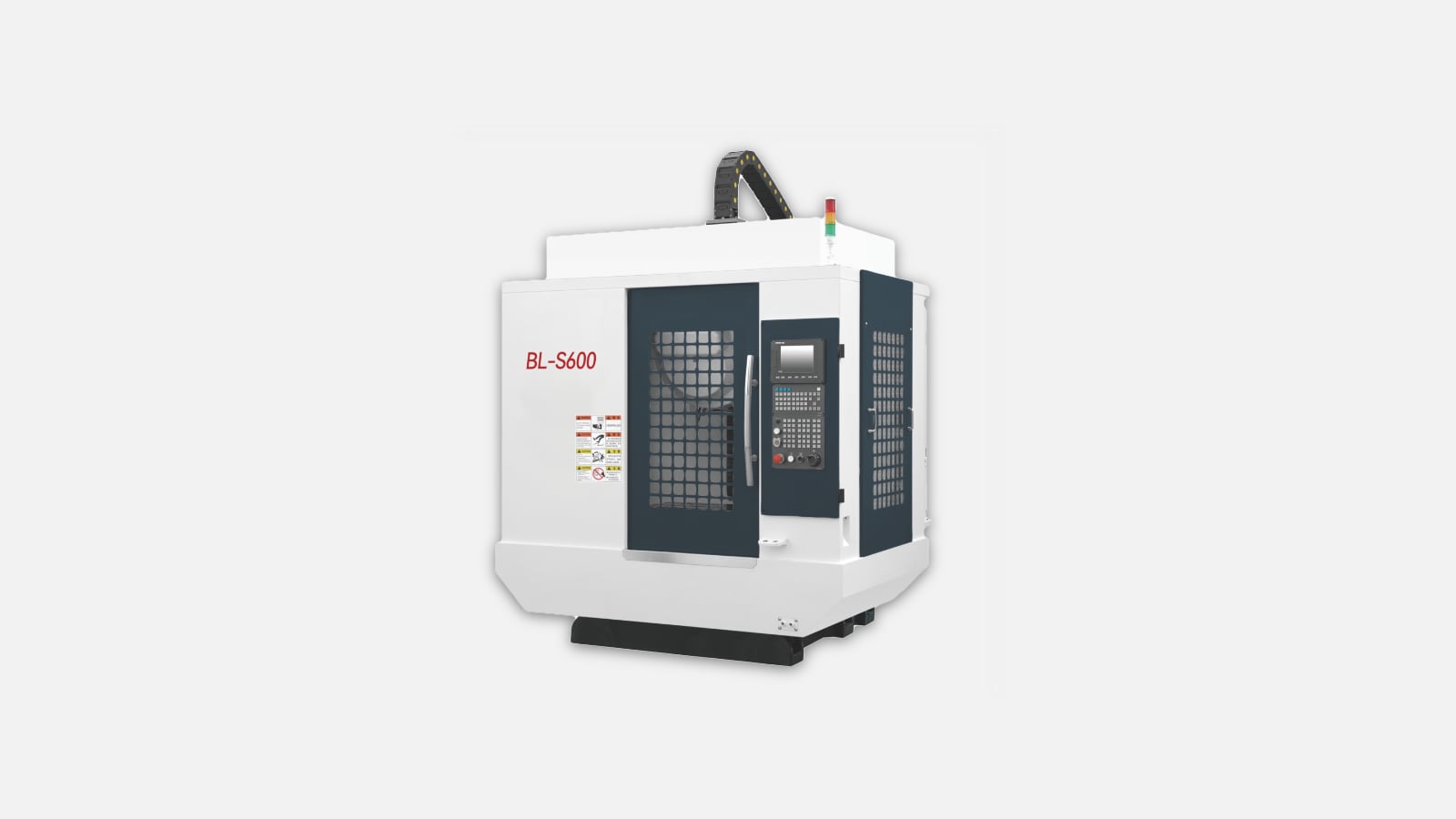

Drilling and Tapping Center BLIN BL-S600

Drilling and Tapping Center BL-S600 BLIN.

Table700x420
Maximum drilling diameter18 mm
T slot (quantity x width x distance)3/14/125 mm
Load on table300
Axes X/Y/Z600/400/350 mm
Distance from spindle nose to table135-485 mm
Spindle taperBT-30
Spindle drive7.5 kW
Speed range12000 rpm
Rapid feed rate X/Y/Z48/48/48 m/min
Positioning accuracy±0.003 mm
Parameters1900×2100×2200 mm
Weight3000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-S600 is one of the most popular threading centers from the Chinese manufacturer BLIN. This machine boasts high precision and productivity, making it an excellent choice for manufacturing various components.

The BL-S600 is equipped with a powerful motor that provides high spindle rotation speeds. This allows for more efficient and precise processing of materials. Additionally, the machine has a large working area, enabling it to handle larger-sized parts.

The BL-S600 also features high accuracy and reliability. It is equipped with a special control system that ensures precision and stability during the processing of parts. As a result, you can be confident in the high quality of the products produced by this machine.

One of the key features of the BL-S600 is its user-friendliness. It has a simple and intuitive interface, making it suitable for both professionals and beginners. Furthermore, it comes with various functions that allow it to be adjusted for working with different materials and components.

Overall, the BL-S600 is a reliable and efficient machine that is suitable for producing various parts. It offers high precision, ease of use, and a powerful motor, making it an ideal choice for manufacturing components of any size and complexity.

Table700x420
Maximum drilling diameter18 mm
T slot (quantity x width x distance)3/14/125 mm
Load on table300
Axes X/Y/Z600/400/350 mm
Distance from spindle nose to table135-485 mm
Spindle taperBT-30
Spindle drive7.5 kW
Speed range12000 rpm
Rapid feed rate X/Y/Z48/48/48 m/min
Positioning accuracy±0.003 mm
Parameters1900×2100×2200 mm
Weight3000 kg
Design Features
Tool Magazine 8T
Patented tool change system, features high-speed tool change. Can be used as: drilling, milling, and tapping machine. Equipped with servo motors.
Tool Magazine 16T
Disc magazine with servo drive. High rigidity, performance indicators are higher than those of conventional drilling and tapping machines.
CNC System
In the basic configuration, the CNC system is represented by Syntec 6MD, Syntec 22MA. Additionally, a Siemens system can be installed.
Additional Equipment
As an additional option, the processing speed of products can be increased, and a 4th axis can be added.
