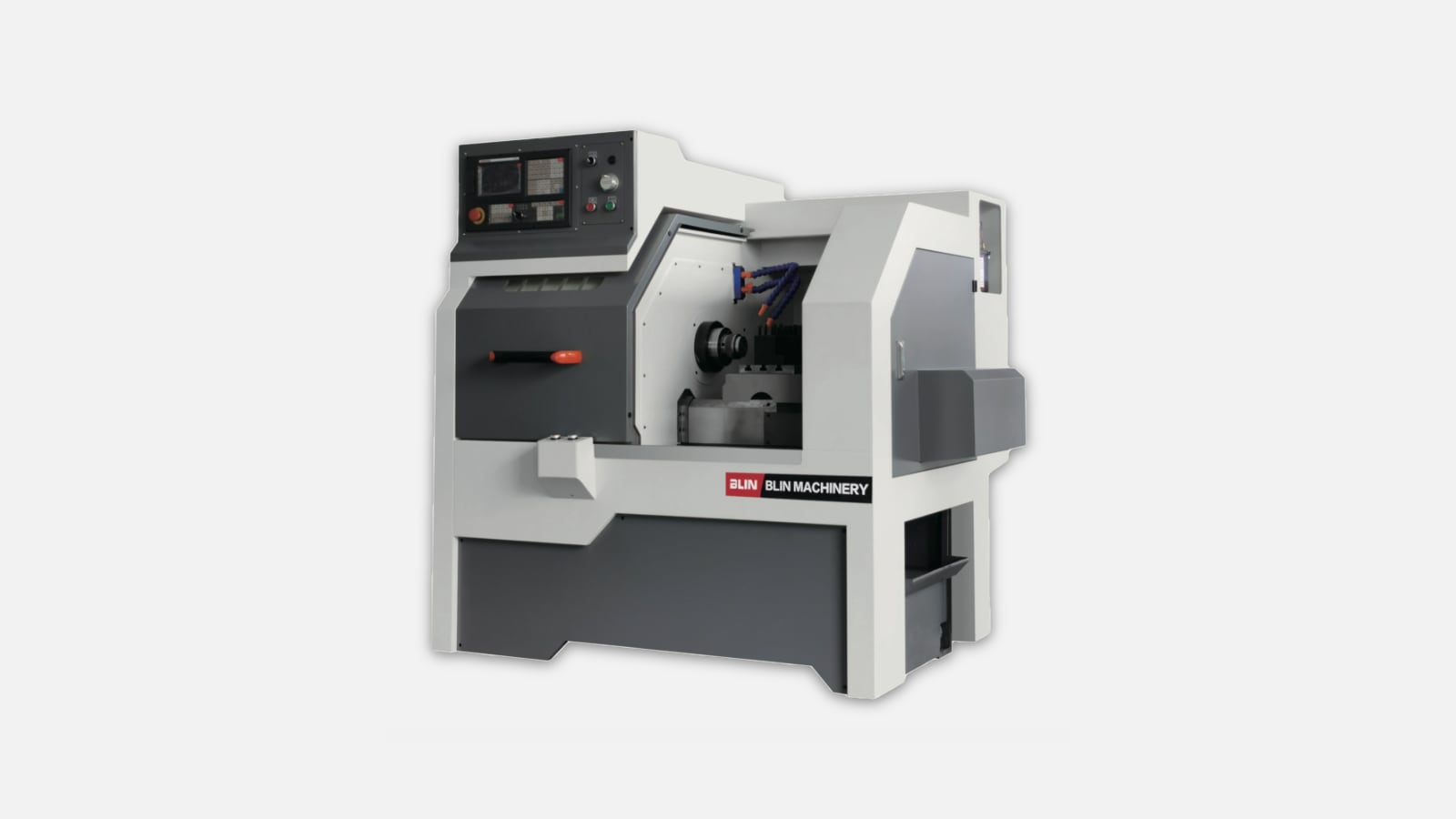

Economical Series Lathe BLIN BL-Z0632

Lathe of the economical series BLIN BL-Z0632

Maximum processing length200 mm
Maximum diameter of the workpiece over the bed300 mm
Maximum diameter of the workpiece over the saddle80 mm
Spindle nose configurationA2-5
Spindle speed3500 RPM
Spindle motor power3 kW
Travel along X/Z axis240/260
Tooling system type4-position turret
Diameter deviation after finishing±0.006 mm
Repeatability accuracy in X/Z axes0.003/0.005 mm
Parameters1560x1280x1750 mm
Weight1200 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-Z0632 is a high-quality lathe machine produced by BLIN. This machine is ideally suited for a wide range of tasks, from simple to complex, and can be used in various industries, including metalworking, woodworking, and the plastics industry.

One of the main advantages of the BL-Z0632 model is its accuracy and reliability. The machine is equipped with a high-precision spindle that provides high rotational speed and allows for precise machining of parts. Additionally, the machine features a stable construction that ensures steady operation and minimizes vibrations.

The BL-Z0632 also includes numerous features and capabilities that make it very flexible and user-friendly. The model is equipped with a high-quality numerical control system that allows programming the machine for various tasks. Moreover, the machine has built-in automatic lubrication and cooling functions, which ensure a long service life and high performance.

The BL-Z0632 also offers many benefits in terms of safety and ease of use. The model is equipped with an emergency stop system that allows the machine to be quickly halted in case of an emergency. Furthermore, the model has a convenient clamping system for workpieces and easy access to the working area, which simplifies operation and enhances safety.

The BL-Z0632 is the perfect choice for those seeking a high-quality, precise, and reliable lathe machine. With its help, a wide range of tasks can be accomplished, various materials can be processed, and high quality and productivity can be achieved.

Maximum processing length200 mm
Maximum diameter of the workpiece over the bed300 mm
Maximum diameter of the workpiece over the saddle80 mm
Spindle nose configurationA2-5
Spindle speed3500 RPM
Spindle motor power3 kW
Travel along X/Z axis240/260
Tooling system type4-position turret
Diameter deviation after finishing±0.006 mm
Repeatability accuracy in X/Z axes0.003/0.005 mm
Parameters1560x1280x1750 mm
Weight1200 kg
Design Features
Monoblock bed
The machine has a monolithic base, which ensures high rigidity of the machine; compact dimensions of the equipment; spindle motor power of 3 kW, spindle speed of 3500 rpm.
Ball screw
Using a spring coupling, the servo motor is connected to the ball screw along the X/Z axes, ensuring minimal play during reverse movements, short transmission, and low noise levels under high and rapid loads.
Standard Equipment
CNC control system Siemens
Additional Options
servo motor and servo drives on axes
3 kW electric motor
rolling guides
tool set
machine operation manual
4-position turret head
hydraulic chuck with 3 jaws
collet chuck
hydraulic chuck with through hole
door opening sensor.
