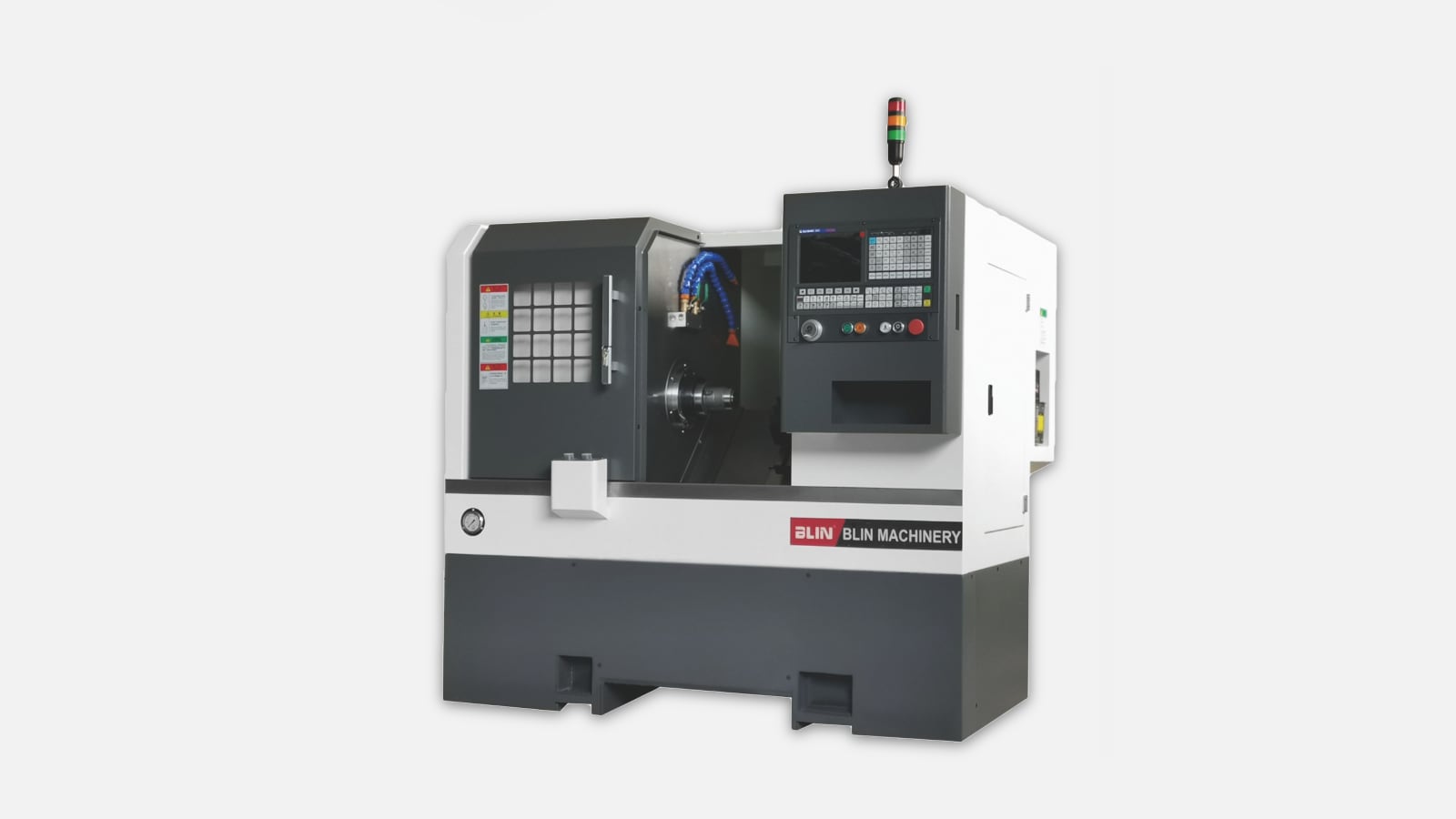

Lathe with Slant Bed BLIN BL-Z5 Z6

Turning machines of the economical series BL-Z5 Z6.

CNC SystemGSK
ChuckCollet/5(6)" chuck(option)
Distance above bed400 mm
Maximum turning length160 mm
Maximum bar diameter35 mm
Spindle speed4500 RPM
Spindle taperA2-4
Spindle bore45 mm
Spindle motor power5.5 kW
Rapid traverse on X/Z axes20 m/min
Travel on X/Z axis300/250 mm
Tool systemArm
Tool holder16x16/25
Tailstock taperno
Quill strokeno
Parameters1720x1200x1500 mm
Weight1500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The BL-Z5 Z6 is a lathe machine that is perfect for processing various materials, including metal, wood, and plastic. It is equipped with a powerful motor and has a high spindle speed, allowing for quick and efficient turning tasks.

One of the features of the BL-Z5 Z6 model is its sturdy and reliable construction. The machine is made from high-quality materials, ensuring its durability and stability during operation.

Another important advantage of the BL-Z5 Z6 lathe is its ease of use. It features an intuitive and user-friendly interface, allowing operators to quickly learn how to operate it and achieve high-quality results.

The BL-Z5 Z6 also has a large work surface area, which enables the processing of large parts. This makes it an ideal solution for manufacturing enterprises that need to work with sizable workpieces.

Overall, the BL-Z5 Z6 lathe machine is reliable, user-friendly, and efficient equipment that will help you perform milling and cutting tasks with high precision and quality.

CNC SystemGSK
ChuckCollet/5(6)" chuck(option)
Distance above bed400 mm
Maximum turning length160 mm
Maximum bar diameter35 mm
Spindle speed4500 RPM
Spindle taperA2-4
Spindle bore45 mm
Spindle motor power5.5 kW
Rapid traverse on X/Z axes20 m/min
Travel on X/Z axis300/250 mm
Tool systemArm
Tool holder16x16/25
Tailstock taperno
Quill strokeno
Parameters1720x1200x1500 mm
Weight1500 kg
Design Features
Monoblock bed
The machine has a monolithic bed that provides high rigidity of the machine's structure.
Linear guides
The machine is equipped with linear roller-type guideways on the X/Z axes, which have a low friction coefficient and a long service life.
Basic configuration
10-position turret head. SCHNEIDER electrical cabinet. Heat exchanger for electrical cabinet. Hydraulic collet chuck. Automatic lubrication system. Splash protection. Tool set.
Additional options
For machines with the T designation, a hydraulic chuck and tailstock are available. Increased power. Chip conveyor. Door opening sensor. Bar feeder.
