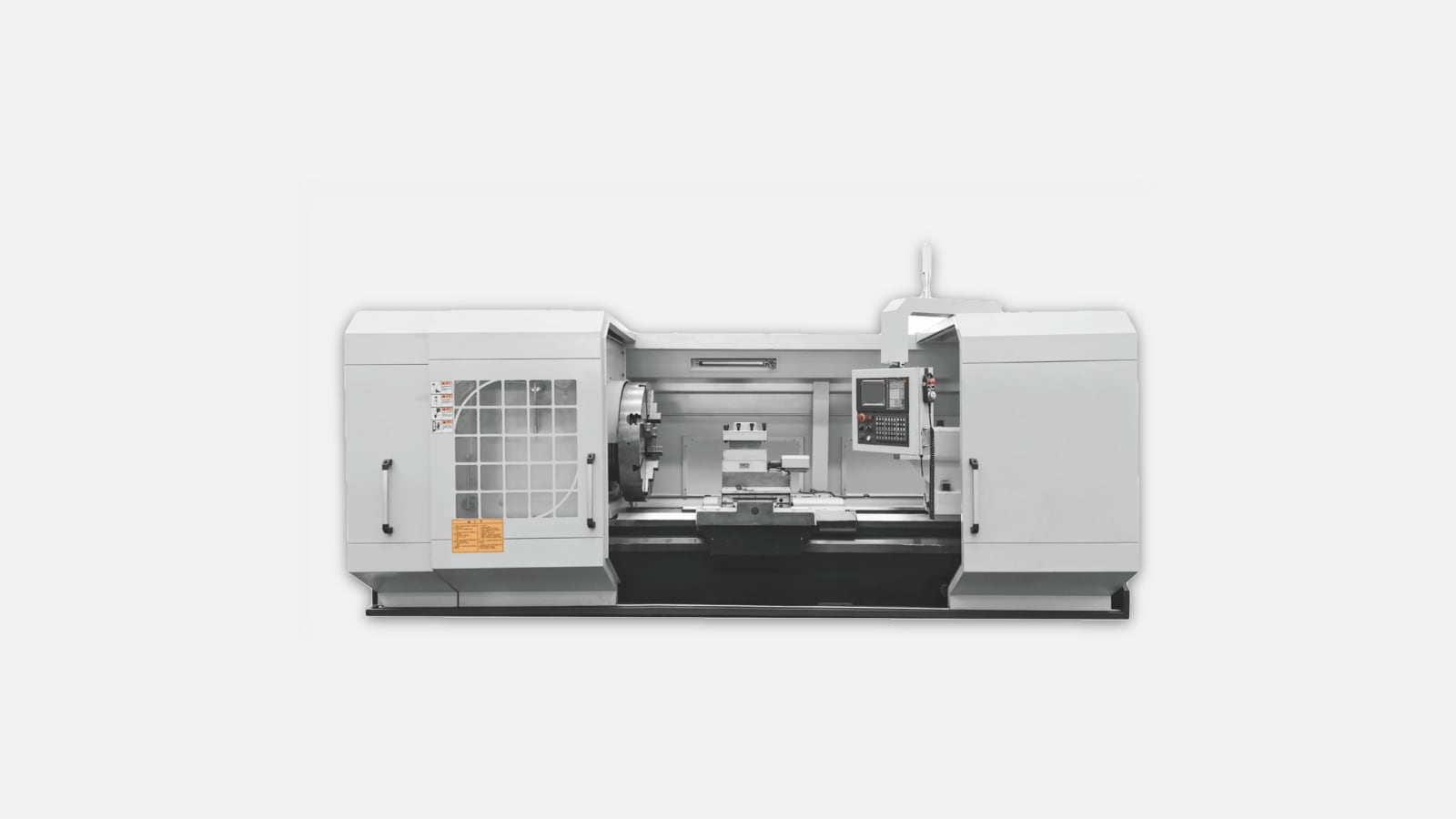

Heavy Series QK BLIN Pipe Turning and Threading Machine

Heavy series with CNC. Models: BL-QK1327B, BL-QK1332, BL-QK1338, BL-QK1343, BL-QK1350, BL-QK1363.

Width of guides BL-QK1327B755 mm
Distance above bed1000 mm
Distance above carriage610 mm
Maximum pipe diameter130-270 mm
Maximum turning length1500/3000 mm custom machine length possible
Maximum weight6000 kg
Spindle hole280 mm
Spindle speed10-320, 4 stages
Chuck800 mm
Spindle motor power22 kW
Rapid movements along X/Z axes4/4 m/min
Movement along X axis520 mm
Movement along Z axis1250/2750* mm
Tool holder40x40 mm
Tool4 pcs
TailstockMT6#
Diameter of tailstock quill160 mm
Parameters4950/6450x2050x2050
Weight10500/12200
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

Models: BL-QK1327B, BL-QK1332, BL-QK1338, BL-QK1343, BL-QK1350, BL-QK1363 – these are high-precision tube cutting machines designed for machining metal and non-metal parts. They are equipped with modern CNC systems that ensure accuracy and processing speed.

These machines offer numerous advantages, including a powerful spindle that allows working with various materials and achieving high precision. They also feature high processing speeds, which increases productivity and saves time.

The model has a large working surface, allowing for the machining of large-sized parts. It is also equipped with an automatic lubrication system, which extends its service life and reduces maintenance costs.

These machines have a simple and user-friendly design, allowing operators to quickly learn how to operate them. They also have high reliability and durability, making them ideal for industrial-level production.

BL-QK1327B, BL-QK1332, BL-QK1338, BL-QK1343, BL-QK1350, BL-QK1363 – these are reliable and powerful machines that provide high precision and processing speed. They are perfect for industrial-level production and can be used in various industries, including machine engineering, electronics, and metalworking.

Width of guides BL-QK1327B755 mm
Distance above bed1000 mm
Distance above carriage610 mm
Maximum pipe diameter130-270 mm
Maximum turning length1500/3000 mm custom machine length possible
Maximum weight6000 kg
Spindle hole280 mm
Spindle speed10-320, 4 stages
Chuck800 mm
Spindle motor power22 kW
Rapid movements along X/Z axes4/4 m/min
Movement along X axis520 mm
Movement along Z axis1250/2750* mm
Tool holder40x40 mm
Tool4 pcs
TailstockMT6#
Diameter of tailstock quill160 mm
Parameters4950/6450x2050x2050
Weight10500/12200
Design Features

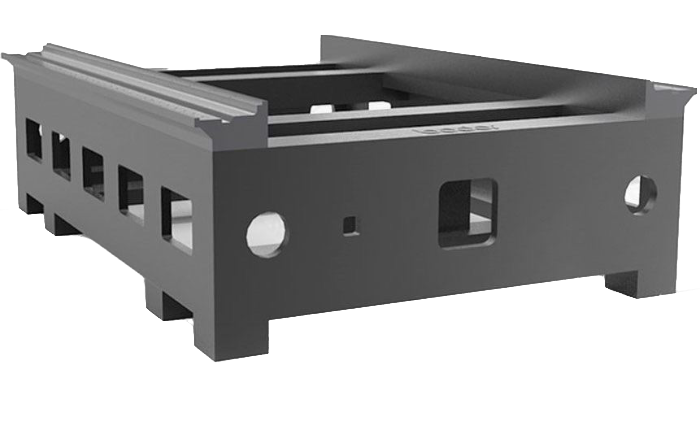

Bed
The bed width in this series of pipe threading machines is 755/1100 mm.
Heavy Series QK
Machines in this series are designed for turning operations with large material removal, including rough machining of cast iron parts. Its main purpose is rough and finish turning of large components. This series of machines is well-suited for internal and external machining of pipes.
Basic configuration
Siemens CNC system. Double manual chuck. 4-position turret. Manual tailstock. Coolant supply system. Manual chuck. Automatic lubrication system. Work area lighting. Servo motors and drives on X/Z axes.
Additional options
Fanuc CNC system. GSK CNC system. 6/8-position turret. Power increase.
