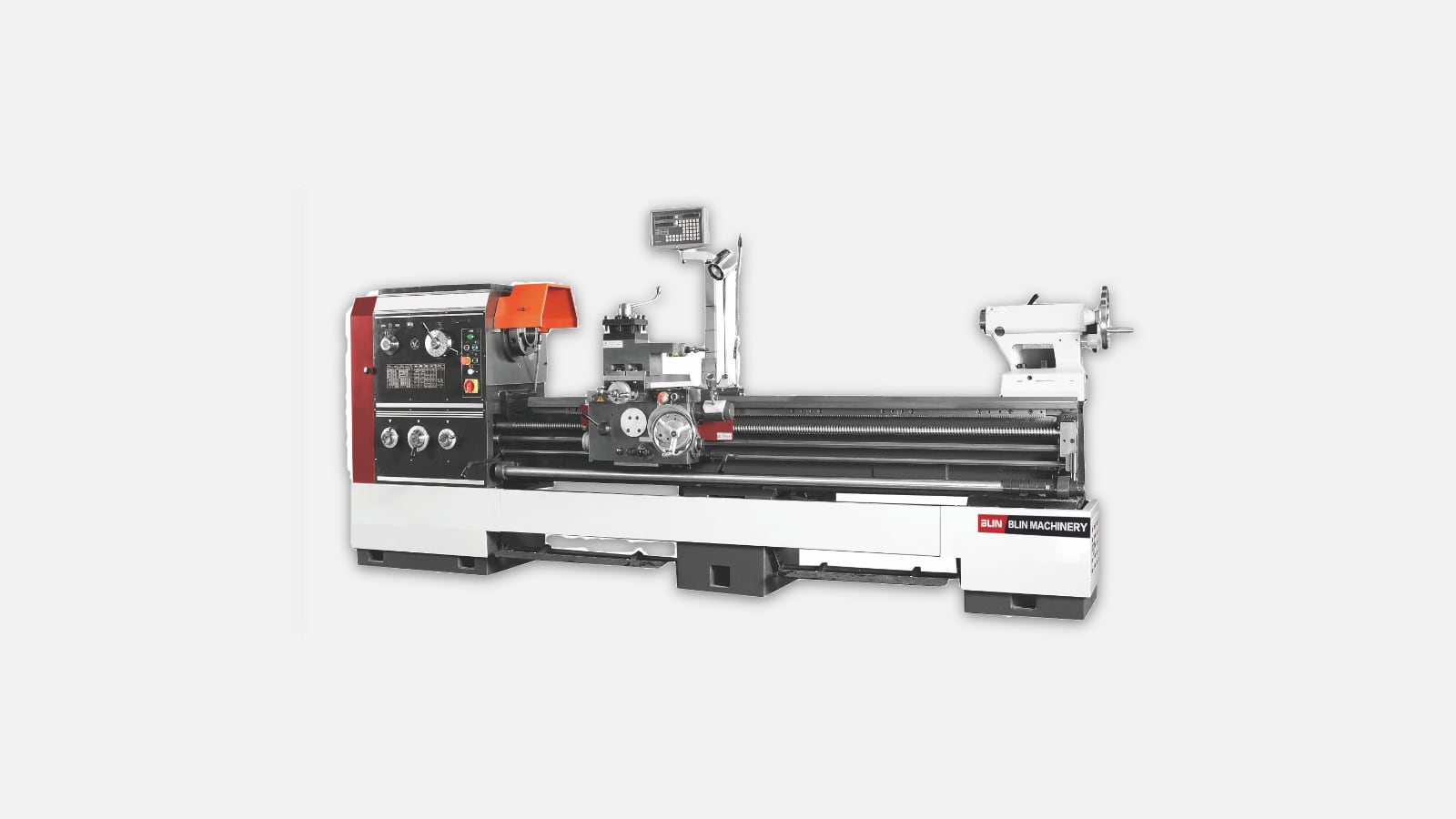

Lathe BL-HL-B40 BLIN

Horizontal lathe BL-HL-B40 with 2 axes.

Width of guide390 mm
Maximum swing diameter over bedФ400
Maximum swing diameter over cross slideФ220
Center distance750 mm
Maximum turning length700 mm
Maximum feed force3500 Nm
Spindle hole coneΦ52
Spindle hole diameterΦ52 (Option: Φ82, Φ105)
Spindle speed9 ~ 1600 RPM
Longitudinal feed rate4.5 - 5.4 m/min
Cross feed rate1.9 - 2.3 m/min
Spindle torque1400 Nm
Longitudinal main feed0.063 ~ 2.52 mm/g
Cross main feed0.027 ~ 1.07 mm/g
Power / speed of spindle motor (kW)7.5 / 1450 (50 Hz); 1750 (60 Hz) RPM
Coolant pump power1.15 kW
Coolant pump flow rate25 l/min
Parameters2380 / 2630 / 3130 / 3630 / 4630 x 975 x 1230 mm
Weight1975 / 2050 / 2250 / 2450 / 2850 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-HL-B40 is a high-quality lathe designed for the production of precision parts from various materials, such as metal, wood, plastic, and others. The machine features a compact body and high performance, making it ideal for use in small and medium-sized production facilities.

One of the main features of the BL-HL-B40 lathe is its accuracy. It is equipped with high-precision spindles that ensure stability and accuracy during operation. This makes the machine suitable for producing parts with high precision, such as metal gears.

Additionally, the BL-HL-B40 lathe has a high rotation speed, allowing for fast and efficient production of parts. The maximum spindle speed can reach up to 12,000 revolutions per minute, enabling rapid manufacturing of components from hard materials.

The machine is equipped with a control system that allows it to be adjusted to meet production needs. The control system enables changes to spindle speed and depth of milling. This flexibility makes the lathe suitable for producing parts of various shapes and sizes.

Finally, the BL-HL-B40 lathe is user-friendly and easy to maintain. It has a simple design and can be easily assembled, allowing for trouble-free operation. Additionally, the machine requires minimal maintenance and is easy to clean. All of this makes it an excellent choice for the production of high-precision parts in small and medium-sized manufacturing environments.

Width of guide390 mm
Maximum swing diameter over bedФ400
Maximum swing diameter over cross slideФ220
Center distance750 mm
Maximum turning length700 mm
Maximum feed force3500 Nm
Spindle hole coneΦ52
Spindle hole diameterΦ52 (Option: Φ82, Φ105)
Spindle speed9 ~ 1600 RPM
Longitudinal feed rate4.5 - 5.4 m/min
Cross feed rate1.9 - 2.3 m/min
Spindle torque1400 Nm
Longitudinal main feed0.063 ~ 2.52 mm/g
Cross main feed0.027 ~ 1.07 mm/g
Power / speed of spindle motor (kW)7.5 / 1450 (50 Hz); 1750 (60 Hz) RPM
Coolant pump power1.15 kW
Coolant pump flow rate25 l/min
Parameters2380 / 2630 / 3130 / 3630 / 4630 x 975 x 1230 mm
Weight1975 / 2050 / 2250 / 2450 / 2850 kg
Design Features
Bed
Upon request, it can be equipped with a horizontal gap lathe bed, meaning it can be retractable, allowing the bed to be moved a short distance from the headstock.
Spindle
Can be increased to a diameter of 105 mm, allowing for the placement of long or thicker cylindrical objects. The enlarged spindle hole will enable the chuck to hold larger diameter workpieces, providing clearance for the rotating spindle and cutting tool to reach the workpiece during machining operations.
Advantages
Consist of lower operating costs, smaller footprint, and reduced capital expenditures.
