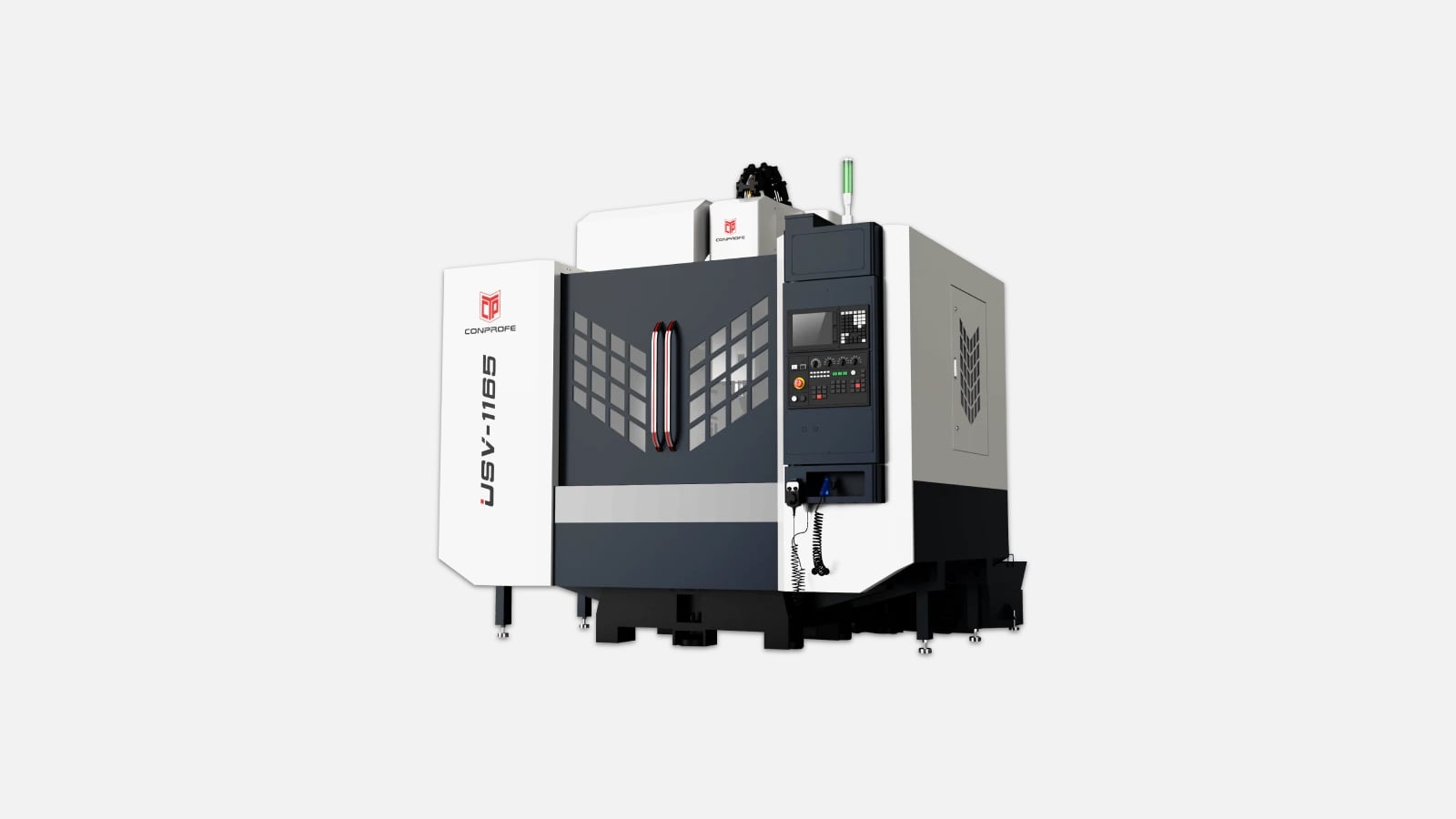

Ultrasonic CNC Machining Center USV1165

Ultrasonic CNC Machining Center USV1165 with 3 axes.

Travel X1 100 mm
Travel Y650 mm
Travel Z600 mm
Spindle Speed12 000 rpm
Power11 kW, 15 kW
Feed Rate on X and Y Axes36 000 mm/min
Table Load Capacity800 kg
Weight of Tools (max)8 kg
Positioning Accuracy0.01 mm
Repeatability0.007 mm
Tool Change Time1.6 s
Mass7 200 kg
Parameters2760x3000x3100 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The CONPROFE USV1165 Ultrasonic Machining Center is a high-precision piece of equipment designed for processing various materials, including metals, plastics, and wood. The machine boasts high productivity and accuracy, making it an ideal choice for the production of mechanical parts, industrial products, and automotive components.

One of the main features of the USV1165 model is its stability and precision. This is achieved through the use of high-quality components and advanced technologies. The machine is equipped with a high-speed spindle, which ensures fast and precise material processing.

Another important feature of the CONPROFE USV1165 is its versatility. The machine can perform various milling, drilling, cutting, and turning operations. As a result, it can be used to manufacture a wide range of parts and products.

The CONPROFE USV1165 is also characterized by its ease of use and setup. It features an intuitive interface that allows operators to quickly adapt to working with it. Moreover, the machine is equipped with an automatic tool feed system, simplifying setup and saving time.

Finally, the CONPROFE USV1165 is a reliable and durable piece of equipment. It is made from high-quality materials and has undergone a multi-stage quality control process before being released to the market. This ensures that it can operate for many years without failures or issues, making it an excellent choice for any enterprise.

Travel X1 100 mm
Travel Y650 mm
Travel Z600 mm
Spindle Speed12 000 rpm
Power11 kW, 15 kW
Feed Rate on X and Y Axes36 000 mm/min
Table Load Capacity800 kg
Weight of Tools (max)8 kg
Positioning Accuracy0.01 mm
Repeatability0.007 mm
Tool Change Time1.6 s
Mass7 200 kg
Parameters2760x3000x3100 mm
Design Features
Structure
Machining center with a fixed frame, with a movable table and a column.
Front end of the spindle
The front end of the spindle has a BT 40, BBT40 model.
Number of tools
The tool magazine with 24 positions for tools is equipped with a tool arm, the tool change time is 1.5 seconds.
Chip removal
Inclined design at the bottom of the machine with a built-in automatic flushing device for chip removal; rear water tank design.
Spindle
Front labyrinth design, with a central air blowing device/function, all spindles are equipped with high-speed spindle units with direct connection.
