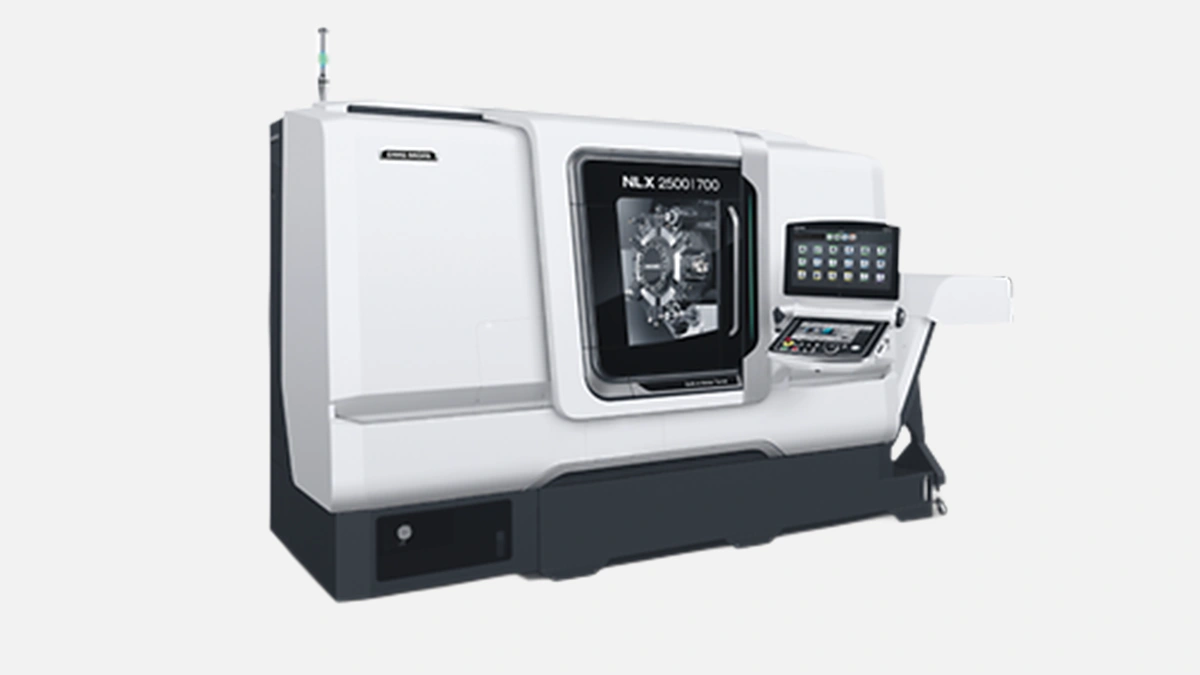

DMG MORI NLX 2500, 366 mm dia, 705 mm length, 4000 rpm, built for heat-heavy UAE shops.
Brisk sentence, no coffee yet. The shop floor hum feels different today, sharper. Maybe it is the compressor kicking harder, maybe my head. Anyway, the DMG MORI NLX 2500 looms in the corner, lights already blinking even before the operator logs in.
DMG MORI counts more than 150 years if you glue the DMG timeline to the Mori Seiki timeline, fine detail but customers keep asking. About 14 production sites worldwide, roughly 12 000 machines every single year, that scale gives spare parts some real backbone. The NLX family itself, quick fact, saw three major revamps since the first release around 2013.
Heat, dust, tight lead times. Workshops in Dubai or Abu Dhabi often live on oilfield spares, valve bodies, stainless couplers. The NLX 2500 shrugs off constant 42 °C ambient with its closed coolant loop, so no drifting dimensions mid-shift. Some guys even tune the chiller to fight summer nights, weird but works.
“We switched from a Korean lathe to the NLX 2500, the surface finish stepped up a class without chasing it,” — comment pulled from practicalmachinist.com user alwathba_cnc.
Two sentences to warm up, then the promised table. It collects the pieces you would normally scribble on cardboard taped to the door.
| Spec | Value |
|---|---|
| Chuck | 10 in hydraulic |
| Through-bar | 80 mm |
| Max swing | 460 mm |
| Turning dia | 366 mm |
| Turning length | 705 mm |
| Spindle rpm | 4000 |
| Power (30 min) | 26 kW |
| Rapid X Z | 30 m/min |
| Turret slots | 12 |
| Repeatability | ±0.003 mm |
Ends of columns, brain already happier because numbers sit tidy. Now back to messy talk.
I open the door, chip tray still half full, blue curls of 316L from yesterday. The machine boots CELOS, bright icons, almost looks like a tablet. Some hate the cartoon vibe, I like big buttons, less chance of stabbing the wrong soft key when gloves are greasy.
A short list sneaks in, but let me wrap it in context first. We just finished a batch of 1200 M65 threads, bar-fed, lights out. Every 110 parts the automation arm brushed chips away from the collet face. That cycle would choke older turrets.
And breathe. Three bullets done, wrap up. Those little things matter more than raw spindle power when you chase margin points.
Long sentence coming, hang on. Picture titanium grade 5 bar, 60 mm diameter, facing, OD rough, OD finish, drilling 30 mm deep, chamfer, cut off, all on one pass, chip time 2 min 18 s, spindle load wobbling around 70 %, part still under 45 °C when it drops, so fingers survive grab-test. That is the sort of consistency procurement teams silently celebrate because it shows up in electricity bills.
Time to line up competitors like ducks, quick and blunt.
After the list, note this, NLX 2500 edges ahead mostly on thermal stability and the CELOS dashboard which ties spindle load graphs to ERP tickets, our planners geek out on that.
NLX 2500 comes in sub-variants: 2500|700, |1250, |1500, figures obviously show max Z. If you only cut fittings up to 250 mm long, grab the 700, footprint shrinks by roughly 400 mm on the right end. The other cores stay identical: same Y-axis optional slide, same motor, same turret. You can even swap programs between sizes, just mind the soft limit change.
Another bullet gang incoming, but first a sip of water. Ok ready.
Wrap done, no more hyphens for a moment.
Filters sit behind one door, reachable without contorting like a yoga instagram guy. Grease cartridges auto-dose linear guide trucks every 100 meters travel, you just change the cartridge quarterly. Spindle chiller shares loop with ballscrews, so one heat exchanger less to babysit.
We installed unit number 9 in Sharjah last month. Client machines valve cages from Duplex 2205. Old routine took 29 minutes per piece on their Taiwanese lathe. NLX rolled out first good part in 17 min 45 s. They shouted, we nodded, normal day.
Look, if you mainly chuck tiny medical pins, this machine is overkill, inertia hurts acceleration. Also if you want bar capacity bigger than 102 mm, jump to NLX 3000 or another series. Honesty keeps friends.
Before you pull the trigger, read the bullets below. They jump out of emails I answer weekly.
Two lines after the list. Your facilities guy will thank you for thinking ahead.
I waffle sometimes, fine. Here is the condensed view. NLX 2500 offers plain reliable torque, tidy thermal handling, and control software that plays nice with younger operators. That mix is why petrochemical subcontractors and general job shops across the Emirates pick it repeatedly, despite a price tag north of medium. Your spreadsheets notice fewer rejects, your eyes notice steadier night shift.
