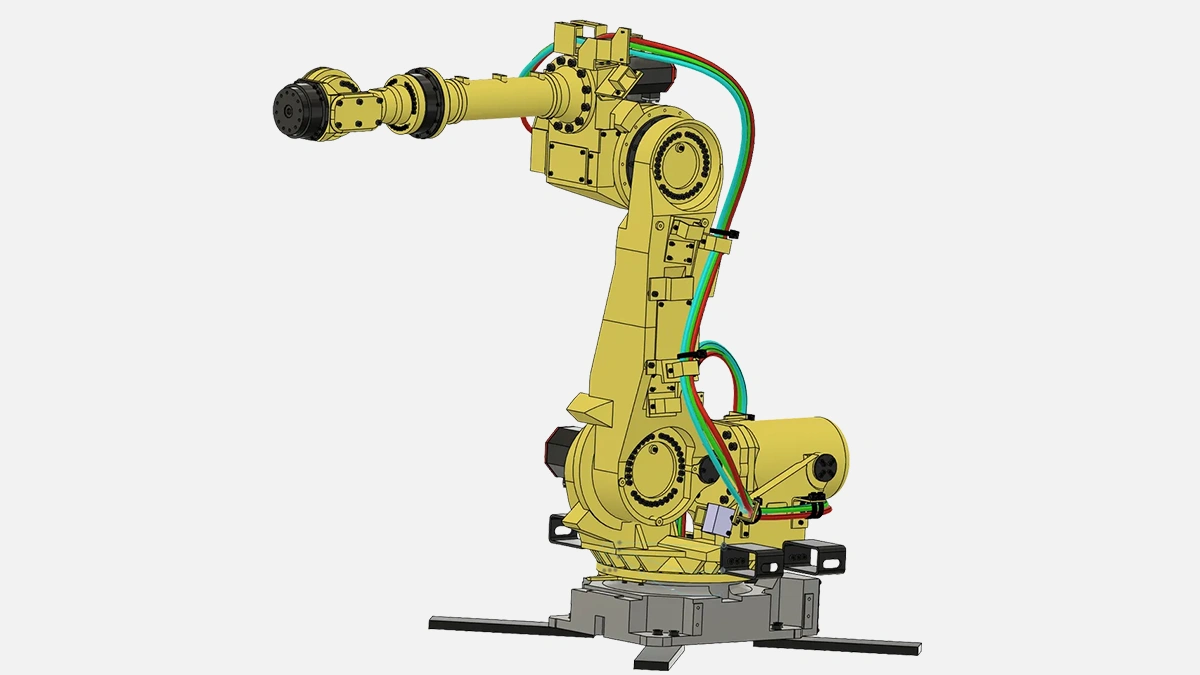

210 kg payload robot with 2.65 m reach, compact base, ideal for heavy spot welding and material handling lines
Short opener, no drama. A heavy yellow arm, 210 kilos on the wrist, that is all most production managers care about when the takt counter keeps shouting.
Stop for a second. Think about that dusty line in Sharjah where crew are juggling pickup frames for SUV chassis. Nothing fancy, just raw throughput. The R-2000 iC jumps in, clamps the part, arcs a long spot, pivots out. Job done. Operators nod, grab karak tea, move on. That is the day to day charm, there is no cinematic soundtrack, just steel and servo whine.
Numbers save time, so here, a tight table. Skim it, scroll back later.
| Spec | Value |
|---|---|
| Payload | 210 kg |
| Horizontal reach | 2655 mm |
| Axes | 6 |
| Repeatability | ±0.05 mm |
| Footprint | 678 × 771 mm base |
| Wrist IP rating | IP67 |
| Controller | R-30iB Plus |
| Average power draw | 7.5 kW during weld cycle |
Two rows might feel missing, fine, they live in the manual, the idea is to give an at-a-glance anchor.
Next thought, what can you actually bolt to the flange. Fanuc lists certified guns from ARO and CenterLine plus any custom EOAT as long as the inertia stays below 104 kg·m². Most welding integrators in Jebel Ali run that limit very close, do a quick inertia calc in Roboguide, do not eyeball.
Dubai loves architecture, Abu Dhabi loves energy, Ras Al Khaimah pushes cement. That mix shapes what this six axis arm gets to do.
And yes, some shops mount it upside down on a beam. The motors are specced for that. Fanuc even stamped the warranty papers accordingly after three service calls proved the gearboxes ran within temp.
Before more waffle, a bullet blast about what hides behind the yellow sheet metal.
The control cabinet also carries a slot for a Hilscher netX card, so Profinet or EtherNet/IP can be toggled without extra gateways. A small but welcome trim, cabling inside hot UAE plants is already chaotic.
The iC family spreads from 125 to 270 kg. Quick contrast so the catalog stays clear in your head.
All three bolt to identical base plates, installers love that, zero redraw of the foundation.
People always ask, fine, a short matchup, not a salesman pitch, just field notes.
| Model | Payload | Reach | Repeatability | Footprint |
|---|---|---|---|---|
| FANUC R-2000 iC/210F | 210 kg | 2655 mm | ±0.05 mm | 0.52 m² |
| KUKA KR 210 R2700 prime | 210 kg | 2700 mm | ±0.06 mm | 0.58 m² |
| ABB IRB 6700-235 | 235 kg | 2650 mm | ±0.05 mm | 0.64 m² |
| Yaskawa MH215 II | 215 kg | 2702 mm | ±0.07 mm | 0.55 m² |
Fanuc keeps the smallest base, handy where aisles are already crammed with conveyors. KUKA holds a hair more reach. ABB packs up to IP67 full arm but costs extra coating. Pick your poison.
Sudden jump in topic, why not. In Al Ain one user reported axis-3 grease turning milky after 18 months. Root cause, coolant mist from a nearby CNC found a micro crack in the bellows, technicians swapped the seal, changed the lube, robot went back to spec, no gear swap needed. So, keep the cell air dry, the manual says dew point below 10 °C. Small detail, big lifetime.
Fanuc Gulf claims spare reducers ship from Luxembourg within 8 days average, anecdotal but repeated by three integrators. That is faster than certain orange competitors whose parts wander from Augsburg by sea.
R-30iB Plus runs familiar TP programming, yet most UAE plants jump straight to Fanuc P-00iB PLC interface, they love ladder style. The robot supports DCS dual check safety so speed limits shrink near fenceless zones. A laser scanner from Sick plugs via CIP Safety, distance maps directly into the joint speed clamp, no black magic.
DEWA tariffs climb every summer, owners frown. Idle power is around 1.2 kW, welding arcs push peaks to 16 kW, but average remains 7–8 kW provided you do not dwell long between points. That is roughly 2 AED per hour at tier-2 rates. People spend more on compressed air leaks, yet management often stares at the wrong figure.
Candid, not every day is sunny. The teach pendant still uses that membrane keypad, operators wearing cut gloves curse the tiny F-keys. Fanuc knows, they polish it in the next gen, rumor says capacitive glass, we will see.
Wire feed interface, you get Lincoln, Fronius, OTC on menu, but if you run Kemppi, you dive into generic I-O mapping. Extra half day for commissioning, not a deal breaker, just flag it early.
Look around JAFZA free zone, bus frame welders, bucket manufacturers, ducting plants, even a theme park prop fabricator. Common thread, parts heavier than 180 kg and cycle time under 25 seconds. Anything lighter and slender arms like M-900 tilt in. Anything heftier, the 500 kg class steps up.
Not perfect, still very competent. If you need an arm that drags chunky metal day in day out and survives desert humidity spikes, the R-2000 iC/210F lands on the shortlist. That is why the yellow paint keeps showing up on shop floors from Abu Dhabi to Umm Al Quwain.
Bottom benefits in one breath: compact base saves floor, solid repeatability keeps fixtures simple, service network already lives in Dubai, and the wrist rating shrugs off grinder dust. Production keeps rolling, accountants stay calm.
