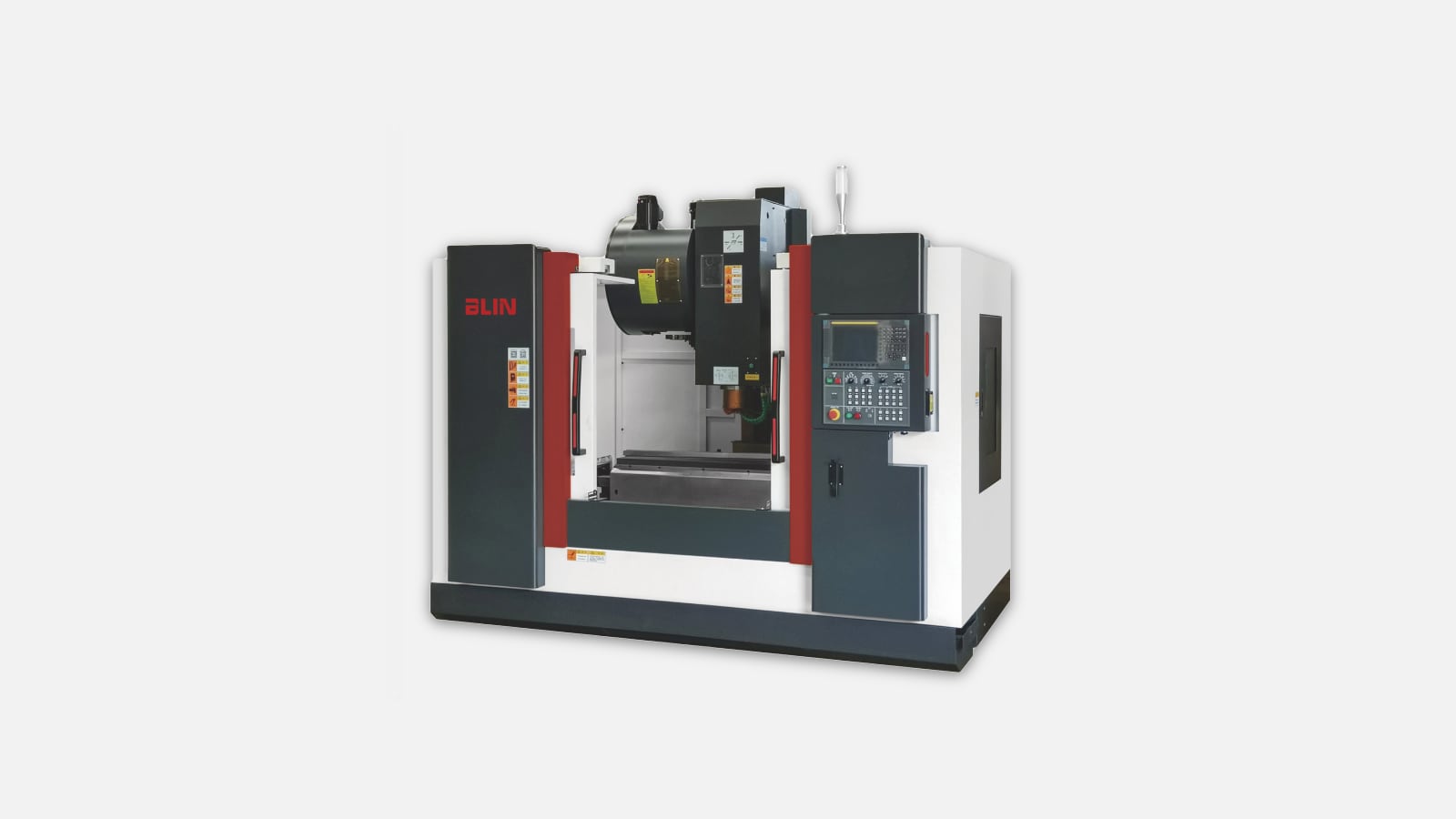

CNC Milling Machining Center BLIN BL-B850

BLIN heavy series milling machining center BL-B850 with CNC.

Table1050x500 mm
T slot(quantity x width x distance)5x18x90 mm
Load on table600 kg
Movement along axes X/Y/Z800/500/550 mm
Distance from spindle nose to table150-700 mm
Distance from spindle center to column560 mm
Spindle coneBT-40
Spindle drive7.5/11 kW
Speed range8000 (10000/12000) rpm
Rapid movement speed X/Y/Z20/20/20 m/min
Positioning accuracy0.008/0.006/0.008 mm
Maximum tool length300 mm
Maximum tool weight8 kg
Maximum tool diameter80 mm
Number of tools24 pcs
Parameters2800x2300x3100 mm
Weight6000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The CNC Milling Center BL-B850 is a high-precision machine developed by the Chinese manufacturer BLIN for producing parts from various materials. The machine features high accuracy and processing speed, allowing for the production of high-quality components with minimal processing time.

One of the key features of the BL-B850 model is its powerful and reliable motor, capable of handling intensive loads while processing different materials. The machine is also equipped with a modern control system, ensuring more precise and efficient operation.

The BL-B850 can process parts made of metal, wood, plastic, and other materials, making it an ideal choice for various manufacturing tasks. The machine offers a wide selection of attachments and tools, allowing users to choose the most suitable ones for processing specific materials.

The design of the BL-B850 ensures high processing accuracy, enabling the production of parts with a high degree of geometric precision and repeatability. Additionally, due to its high processing speed, the BL-B850 significantly increases the productivity of the manufacturing process.

Overall, the BL-B850 milling machine from BLIN is a high-tech and reliable piece of equipment that can greatly enhance production efficiency and yield high-quality parts.

Table1050x500 mm
T slot(quantity x width x distance)5x18x90 mm
Load on table600 kg
Movement along axes X/Y/Z800/500/550 mm
Distance from spindle nose to table150-700 mm
Distance from spindle center to column560 mm
Spindle coneBT-40
Spindle drive7.5/11 kW
Speed range8000 (10000/12000) rpm
Rapid movement speed X/Y/Z20/20/20 m/min
Positioning accuracy0.008/0.006/0.008 mm
Maximum tool length300 mm
Maximum tool weight8 kg
Maximum tool diameter80 mm
Number of tools24 pcs
Parameters2800x2300x3100 mm
Weight6000 kg
Design Features
Cast iron construction
The machine bed design is based on German technology and made of cast iron. This ensures minimal residual stresses in the bed and reduces the tendency for deformation.
Ball screw
The servo motor is directly connected to the ball screw via a spring coupling along the X/Y/Z axes. This provides a short transmission, low noise during rapid and heavily loaded movements, and minimal backlash during the reverse movements of the machine's actuators. The high precision of the servo motors is effectively handled by the machine's ball screw without errors.
Basic equipment
Siemens CNC system.
Additional options
24-tool magazine.
Full protection.
Automatic lubrication system.
Working lighting.
Three-color signal lamp.
Air and coolant gun.
Heat exchanger.
Fanuc CNC system.
Power increase.
Chip conveyor of screw and belt type.
ZF gearbox.
Door opening sensor.
