Lathe BL-HL-B63B BLIN

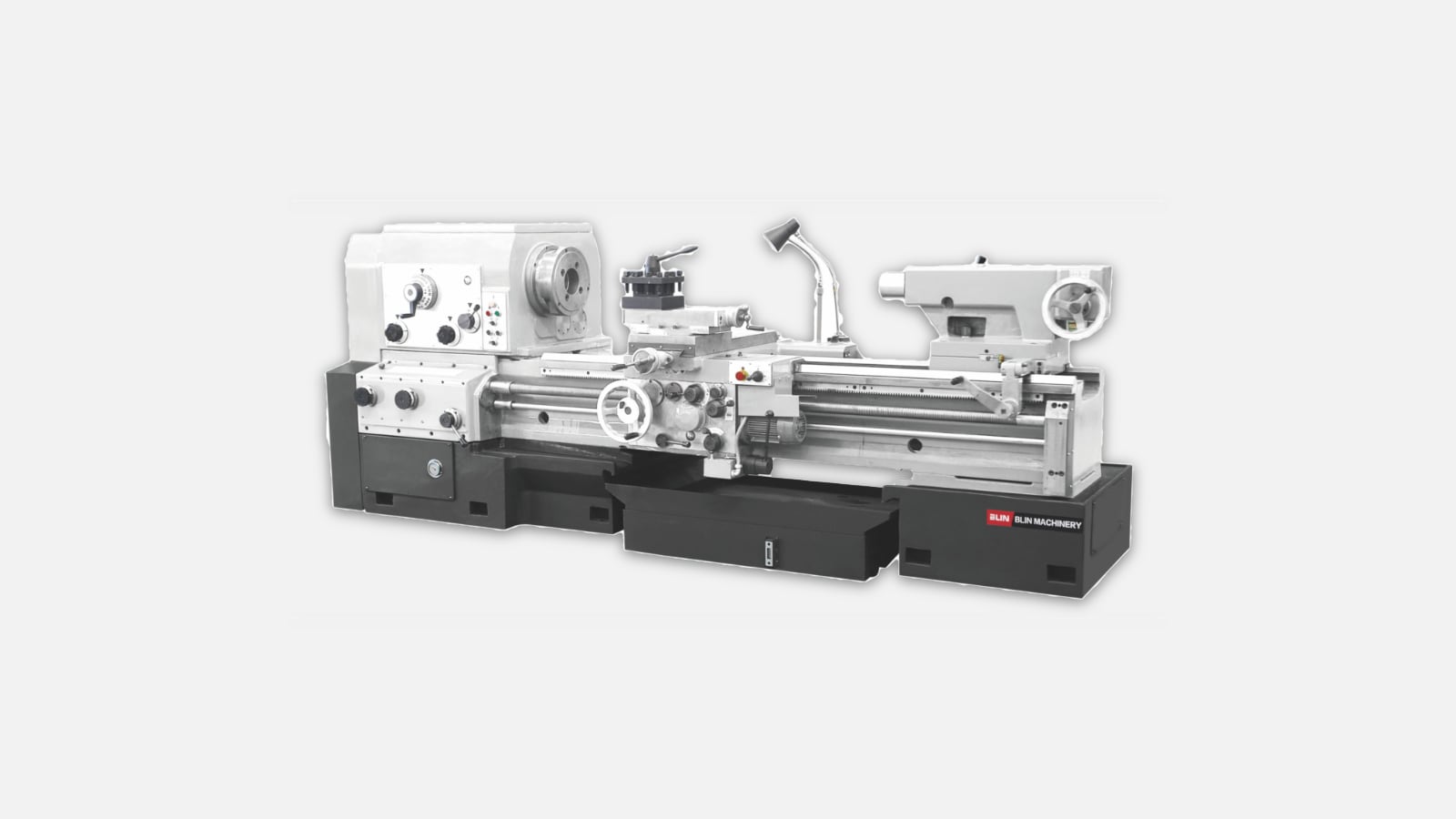

BLIN lathe BL-HL-B63B.

Max. swing diameter over bedΦ660 mm
Chuck sizeΦ315 mm
Distance between centers1500/2000/3000/4000 mm
Spindle holeΦ105 mm
Spindle taperA1-11
Tailstock quill travel250 mm
Tailstock quill diameterΦ100 mm
Coolant pump power0.18 kW
Parameters4200/4500/5000/5800 mm
Weight3500/4000/5000/6000×1260×1385 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-HL-B63B is a powerful and reliable lathe machine that belongs to the category of industrial equipment. This machine can be used for processing various materials, including steel, aluminum, copper, and more.

The main advantage of the BL-HL-B63B model is its high processing accuracy. With this machine, it is possible to create parts with the highest precision and repeatability. The basic configuration includes a CNC control system, which ensures accuracy and speed of processing.

The BL-HL-B63B is also equipped with a powerful spindle that allows for operation at high rotation speeds. This enables faster and more efficient task completion.

It is important to note that this lathe machine has high productivity. This allows for reduced part processing time and increased efficiency in production processes.

Finally, it is worth mentioning that the BL-HL-B63B model features a compact design, which helps save space in production facilities. This makes this machine an ideal choice for small and medium-sized manufacturing enterprises.

Overall, the BL-HL-B63B is a reliable, powerful, and efficient lathe machine that enables achieving high results in manufacturing processes.

Max. swing diameter over bedΦ660 mm
Chuck sizeΦ315 mm
Distance between centers1500/2000/3000/4000 mm
Spindle holeΦ105 mm
Spindle taperA1-11
Tailstock quill travel250 mm
Tailstock quill diameterΦ100 mm
Coolant pump power0.18 kW
Parameters4200/4500/5000/5800 mm
Weight3500/4000/5000/6000×1260×1385 mm
Design Features
Lubrication channels
Special attention has been paid to the lubrication channels, providing a constant oil bath for high-quality precision tapered roller bearings to ensure a long service life.
Spindle
The spindle of the front support is made of forged alloy steel, polished, and dynamically balanced. It features a large through hole with a convenient mounting using an eccentric lock.
Bed
The design with a wide bed is made from casting and is resistant to vibration loads. The bed guides are induction hardened and precision ground.
Application
The product is designed for standard operations of turning and threading, aimed at working in a "24/7" mode under heavy industrial conditions. A wide range of fixed speeds combined with a powerful motor will meet many tasks.
Basic equipment
Cooling system with a pump. Standard removable large-capacity chip tray facilitates the cleaning and disposal of chips. LED work light.
