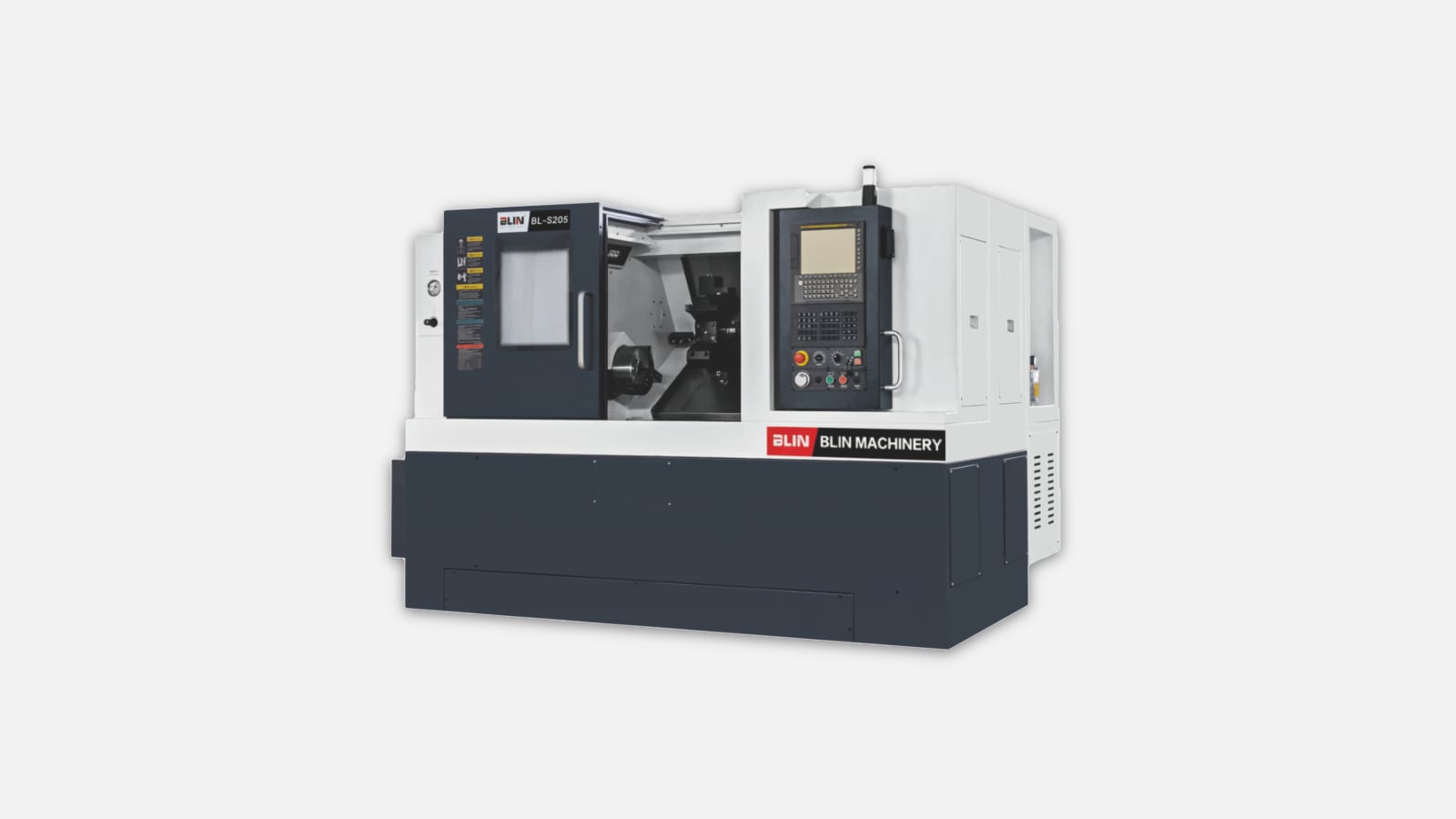

BL-S205 Series Turning Machining Centers

Precision Series Processing Centers BL-S205.
Models: BL-S205, BL-S205M, BL-S205Y, BL-S205S, BL-S205SM, BL-S205SY.

Distance above bed550 mm
Distance above carriage290 mm
Maximum turning length530 mm
Maximum turning diameter380 mm
Spindle speed4,500 RPM
Spindle taperA2-6
Spindle holes66 mm
Chuck8’’
Spindle motor power11 kW
Rapid movements along X/Z/Y axes30 m/min
Tool system type8-position turret
Tool shank25x25 mm
ConeMT4
Positioning accuracy0.005/0.008 mm
Repeatability0.002/0.004 mm
Parameters2455×1720×1740 mm 3480×1720×1740 (chip conveyor) mm
Weight4100 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-S205 is a professional lathe machine that allows for a wide range of machining tasks. The model is equipped with a high-performance 3 kW motor that provides high precision and speed in processing.

One of the main features of this model is its high machining accuracy. The machine is equipped with high-quality guides that ensure smooth and precise movement of the cutting tool. This allows for the production of high-quality surfaces and precise dimensions of the parts.

BL-S205 also offers a wide range of settings and capabilities. The model is equipped with a turret head, which allows for quick and easy changes of attachments for various operations. Additionally, the machine features a cooling system that helps lower the temperature during machining and extends the tool’s lifespan.

BL-S205 has a compact design and occupies minimal space in the workshop. This makes it an ideal choice for small businesses or for use in a home workshop. Furthermore, the machine is easy to maintain and has a long service life due to the use of high-quality materials.

Overall, the BL-S205 is a high-tech and reliable lathe machine that enables a broad range of machining tasks. It is perfectly suited for use in small businesses or home workshops where precision and reliability in work are required.

Distance above bed550 mm
Distance above carriage290 mm
Maximum turning length530 mm
Maximum turning diameter380 mm
Spindle speed4,500 RPM
Spindle taperA2-6
Spindle holes66 mm
Chuck8’’
Spindle motor power11 kW
Rapid movements along X/Z/Y axes30 m/min
Tool system type8-position turret
Tool shank25x25 mm
ConeMT4
Positioning accuracy0.005/0.008 mm
Repeatability0.002/0.004 mm
Parameters2455×1720×1740 mm 3480×1720×1740 (chip conveyor) mm
Weight4100 kg
Design Features
JAPAN MAZAK
This machine has a structure similar to JAPAN MAZAK. The bed is tilted at 30°, with high rigidity, a compact structure, and high processing functionality.
Wide range of model configurations
S205/S205M/S205Y - this model series features a programmable tailstock. S205S/S205SM/S205SY - this model series is equipped with an electric spindle and a counter spindle.

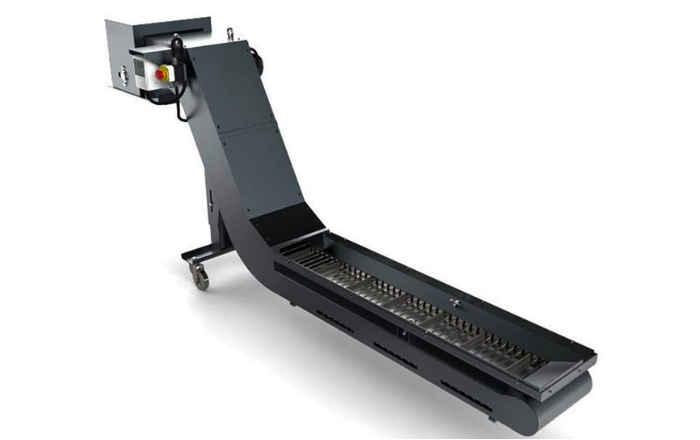

Chip conveyor installation possible
S205 - Machine without a counter spindle, with a turret magazine without driven tools, with a tailstock. S205M/Y - Machine without a counter spindle, with a driven tool head type BMT-55, with C/Y axis, with a tailstock.
Ball screw
The use of high-precision ball screws allows for good rigidity and high accuracy of the machine.
S-series
The S-series is precision-designed, intended for high-precision machining, and targets the Japanese market.
