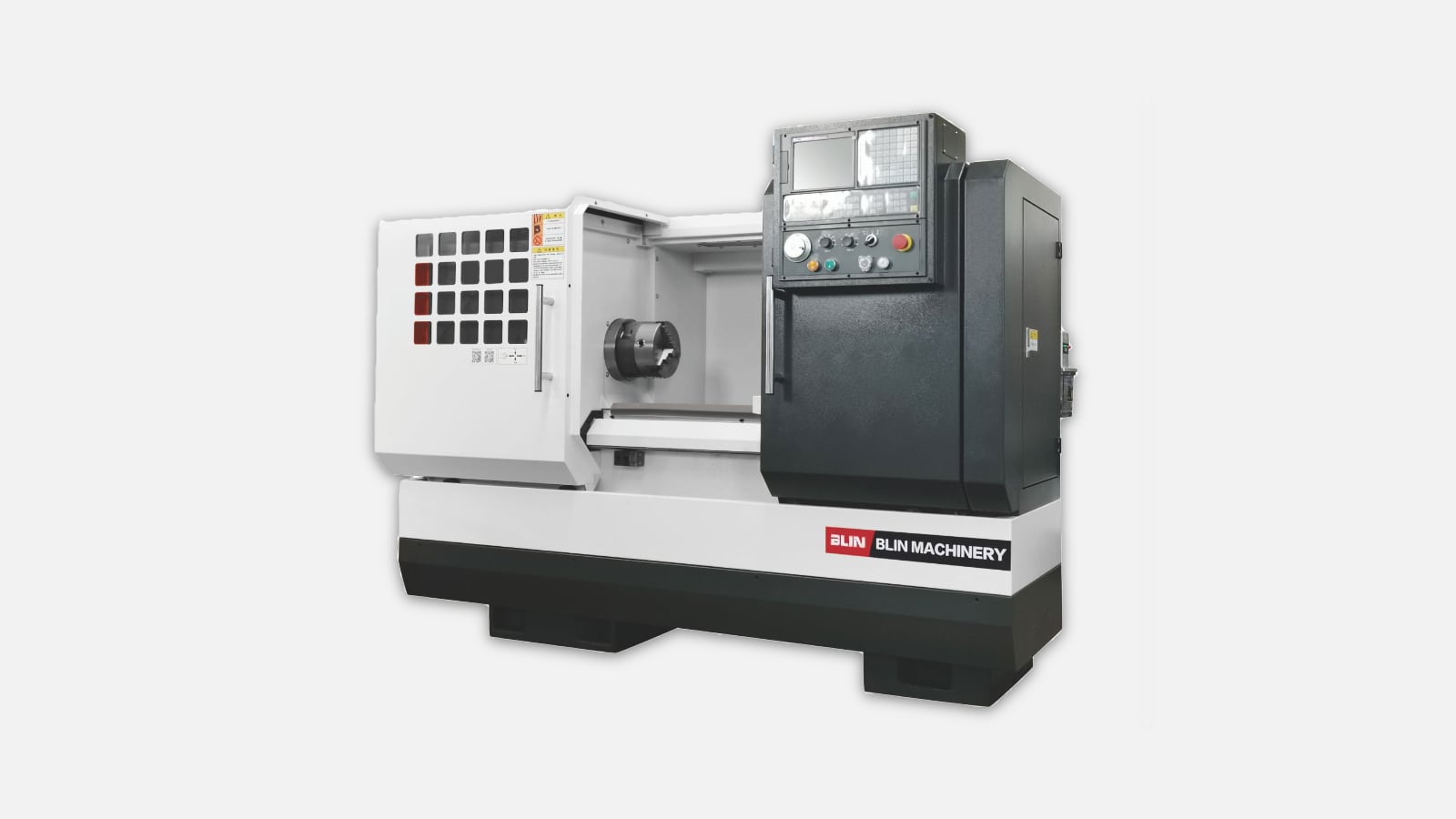

Lathe BLIN BL-TK36S EK40

Lathe BL-TK36S EK40.

Spindle holeΦ57
Spindle type cylinder headISO702/ A2-6 (Manual for Chuck Repair, 8'' Hydraulic Chuck)
Spindle rotation speed140~3000 (infinitely variable) RPM
Spindle drive electric motor5.5() vacuum brake booster kW
Tool holder size8''
X-axis travel200/150 mm
Z travel610/550/510 mm
X/Z rapid speed6/8 m/min
X,Z ball screw O.D./pitchΦ25/5,Φ40/6 mm
X/Z positioning accuracy0.026/0.032 mm
X/Z reproducibility positioning accuracy0.007/0.009 mm
Parameters2150×1260×1600 mm
Weight1700 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-TK36S EK40 is a high-precision lathe machine that is perfect for use in the production of various products made from metal, wood, plastic, and other materials.

This machine is equipped with a powerful motor and a high-performance control system that allows for complex operations to be performed with high accuracy and speed. The machine is controlled by a computer, making it easy to set up and monitor its operation.

The BL-TK36S EK40 features a large table size, accommodating the machining of large parts and materials. It also offers adjustable spindle speed, enabling the operator to configure the machine for specific materials and tasks.

The BL-TK36S EK40 model is built with a high degree of reliability and durability, thanks to the use of quality materials and modern manufacturing technologies. Additionally, the machine operates at a low noise and vibration level, ensuring a comfortable working environment for the operator.

The BL-TK36S EK40 is an ideal choice for enterprises and manufacturers engaged in producing complex parts and products from various materials. It significantly enhances productivity and work quality while reducing production costs.

Spindle holeΦ57
Spindle type cylinder headISO702/ A2-6 (Manual for Chuck Repair, 8'' Hydraulic Chuck)
Spindle rotation speed140~3000 (infinitely variable) RPM
Spindle drive electric motor5.5() vacuum brake booster kW
Tool holder size8''
X-axis travel200/150 mm
Z travel610/550/510 mm
X/Z rapid speed6/8 m/min
X,Z ball screw O.D./pitchΦ25/5,Φ40/6 mm
X/Z positioning accuracy0.026/0.032 mm
X/Z reproducibility positioning accuracy0.007/0.009 mm
Parameters2150×1260×1600 mm
Weight1700 kg
Design Features
Lubrication supply pump
Lubrication feed pump Japan-HERG.
Axis bearing
Chinese axis bearing top-CSC/ZWZ.
Standard configuration:
Operational portable control panel - 0i TF CNC. Manual tool holder. 4 stations after. Manual tailstock.
Additional settings:
SIEMENS 808D/GSK980TDi. Hydraulic chuck. 6 turret stations. Hydraulic system tailstock.
