Five-axis machining center U500 from PRIMINER

CNC Milling Machining Center U500 with 5 Axes.

Table sizeØ500 mm
Max. workpiece sizeØ700 mm
T-slot (width x quantity x distance)14 x 5 x 80
Max. load500 kg
Movement in axes X/Y/Z700/650/450 mm
Movement in axes A/C+30° ~ -110°/ 360°
Distance from spindle nose to table surface110-560 mm
Spindle taperHSK A63
Spindle motor power20/24 kW
Spindle motor torque35/42 Nm
Spindle speed20,000 rpm
Rapid feed in axes X/Y/Z36 m/min
A/C axes speed100/170 rpm
Cutting speed1-12,000 mm/min
Number of tools32 pcs
Max. tool length250 min
Max. tool diameterØ63 mm
Max. tool weight4 kg
Positioning accuracy0.006 mm (X/Y/Z), 5/3 angular sec. (A/C)
Repeatability0.003 mm (X/Y/Z), 2.5/2 angular sec. (A/C)
Parameters3560×3380×2995 mm
Weight9000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The U500 model is a high-quality milling machine developed by PRIMINER for professional and industrial manufacturing. This machine is equipped with a powerful motor and is designed for processing metal workpieces of various shapes and sizes.

One of the key features of the U500 machine is its high processing accuracy: thanks to the use of modern technologies and materials, this machine can work on surfaces with great precision and minimal errors.

Additionally, the U500 boasts high productivity and efficiency: with its powerful motor and innovative control system, this machine can process large volumes of material in a short amount of time.

Another advantage of the U500 is its user-friendliness: due to its ergonomic design and simple interface, this machine can be easily set up and operated even by inexperienced users.

Finally, it is worth mentioning that the U500 is durable and reliable equipment that will serve you for many years. PRIMINER uses only high-quality materials and components in the production of its machines to ensure maximum reliability and longevity.

Overall, the U500 is an excellent choice for those seeking high-quality and reliable milling equipment for their manufacturing needs.

Table sizeØ500 mm
Max. workpiece sizeØ700 mm
T-slot (width x quantity x distance)14 x 5 x 80
Max. load500 kg
Movement in axes X/Y/Z700/650/450 mm
Movement in axes A/C+30° ~ -110°/ 360°
Distance from spindle nose to table surface110-560 mm
Spindle taperHSK A63
Spindle motor power20/24 kW
Spindle motor torque35/42 Nm
Spindle speed20,000 rpm
Rapid feed in axes X/Y/Z36 m/min
A/C axes speed100/170 rpm
Cutting speed1-12,000 mm/min
Number of tools32 pcs
Max. tool length250 min
Max. tool diameterØ63 mm
Max. tool weight4 kg
Positioning accuracy0.006 mm (X/Y/Z), 5/3 angular sec. (A/C)
Repeatability0.003 mm (X/Y/Z), 2.5/2 angular sec. (A/C)
Parameters3560×3380×2995 mm
Weight9000 kg
Design Features
Portal construction
Portal structure. The X/Y/Z axes are located above the machine's working area and are protected by safety covers.

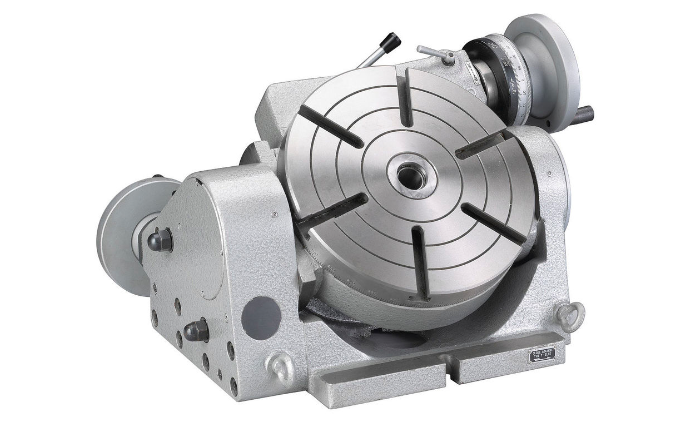

Rotary table
Rotary table Ø500 mm with direct drive.
Ball screw
Two drives and two ball screws on the Y axis provide the best dynamic performance.
Basic equipment
Fully enclosed workspace protection
Additional options
Chain type tool change system. Scraper type chip conveyor. Electrical equipment cabinet with air conditioning. Spindle cooling system for increased accuracy. Optical scales on X/Y/Z axes. Rotary position sensor (encoder) on AC axis.

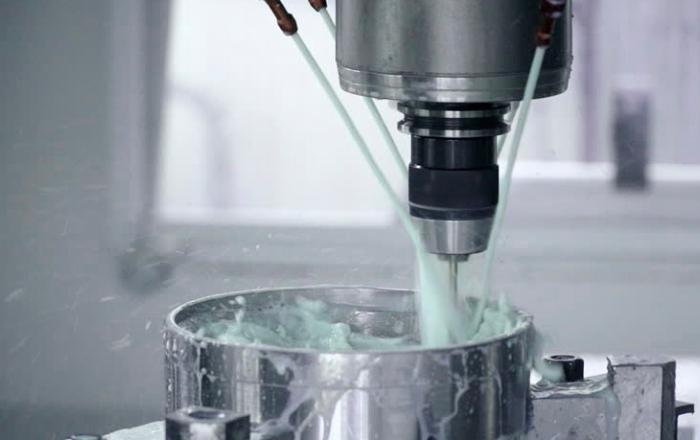

Motor-spindle 18000(36000) rpm, HSK A63(E50). Coolant supply system through the spindle. Oil cooling for ball screw. Oil separator from coolant. Workpiece setting and referencing sensor. Tool sensor. Dynamic collision prevention system (DCM). CNC Kinematics function.
