CNC Machining Center ULV-800 from CONPROFE

Ultra-precision CNC machining center with 5 axes ULV-800.

Travel X800 mm
Travel Y800 mm
Travel Z550 mm
Spindle speed18,000 RPM
Maximum workpiece height800 mm
Table rotation (axis C)360 °
Feed rate on axes XYZ30,000 mm/min
Table load capacity500 kg
Weight of tools (max)6 kg
Positioning accuracy0.006 mm
Repeatability0.005 mm
Mass18,500 kg
Parameters2588x3667x3060 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The ULV-800 model from CONPROFE is a milling machine designed for processing metal materials. It is equipped with a high-speed spindle that allows for the machining of various materials with high precision and speed.

The machine features a sturdy and reliable construction made from high-quality materials. It is equipped with an automatic lubrication system, ensuring a long lifespan and minimal wear on parts.

The ULV-800 has a large working area, enabling the processing of large components. The ability to install multiple tools allows for quick and efficient execution of various tasks.

For the operator’s convenience, the machine is equipped with a cooling system that prevents overheating of parts and increases machining accuracy. Additionally, the machine has a user-friendly and practical design, ensuring ease of use and maintenance.

Overall, the ULV-800 model is a high-tech and reliable milling machine capable of delivering high precision and productivity when processing metal materials. If you need a machine for producing large components with high accuracy, the ULV-800 is an excellent choice for you.

Travel X800 mm
Travel Y800 mm
Travel Z550 mm
Spindle speed18,000 RPM
Maximum workpiece height800 mm
Table rotation (axis C)360 °
Feed rate on axes XYZ30,000 mm/min
Table load capacity500 kg
Weight of tools (max)6 kg
Positioning accuracy0.006 mm
Repeatability0.005 mm
Mass18,500 kg
Parameters2588x3667x3060 mm
Design Features
Spindle direction
The spindle is oriented vertically.
Front end of the spindle
The front end of the spindle in this model is HSK A-63.

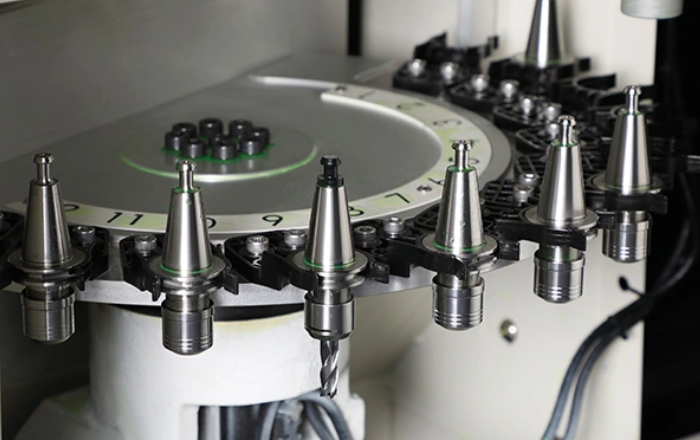

Number of tools
The machining center has 24 tools with a total weight of no more than 6 kilograms.
Ultrasonic spindle
Ultrasonic spindle, independently developed by Conprofe, is used to reduce cutting force, thereby ensuring high processing efficiency of hard-to-machine materials.
System
SIEMENS 840Dsl is used for implementing 5-axis simultaneous machining with RTCP function.
