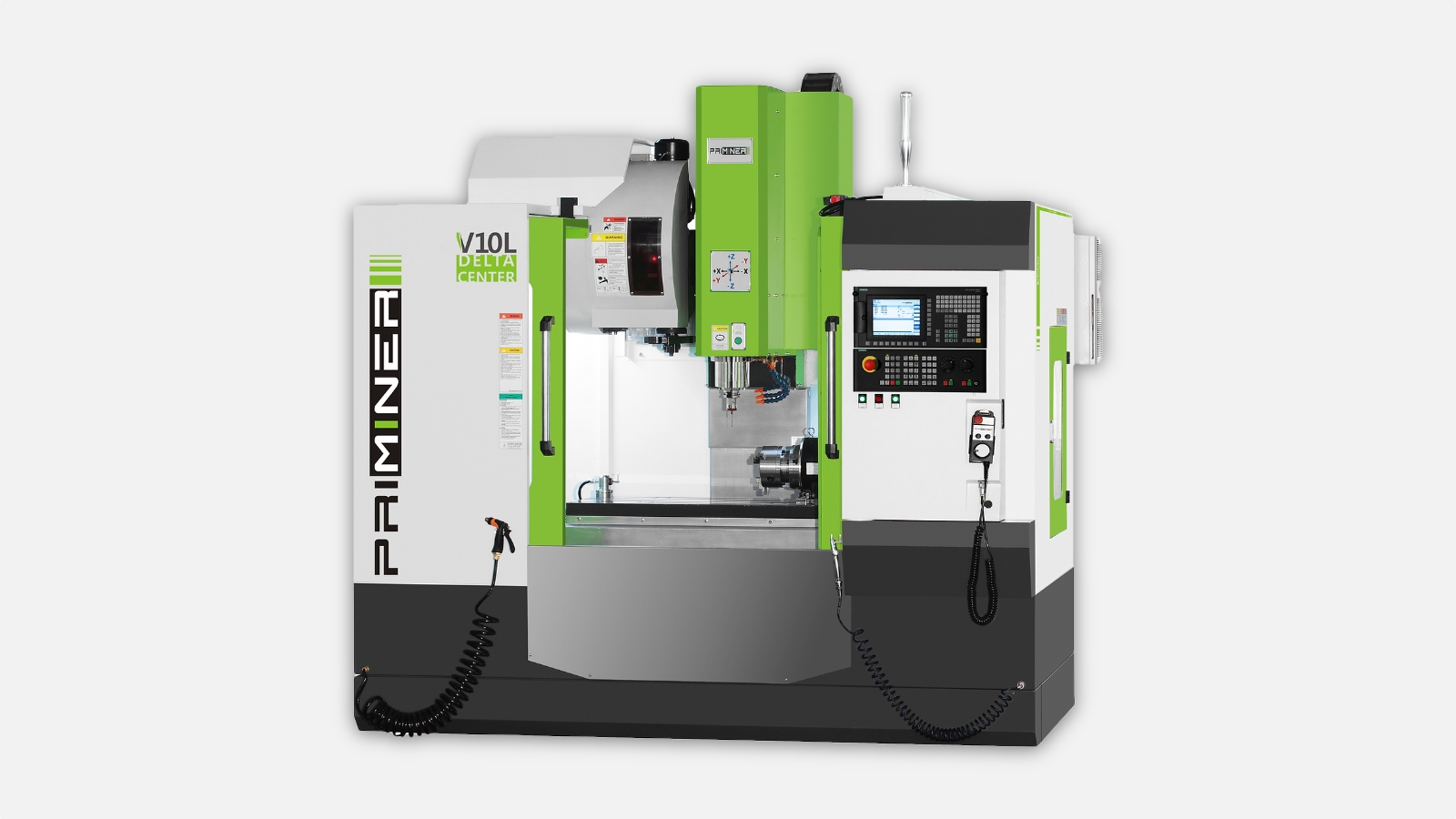

Delta V10L Processing Center by PRIMINER

Delta V10 machining center with 3 axes.

Table size1100 x 500 mm
T-slot (width x quantity x distance)18 x 5 x 100 mm
Max. load600 kg
Movement along X/Y/Z axes1020 / 530 / 560 mm
Distance from spindle nose to table surface115 - 675 mm
Distance from spindle axis to column566 mm
Spindle taperSK 40 / BT 40 / CAT 40
Spindle speed10000 rpm
Motor power9 / 22 Siemens, 7.5 / 15 Fanuc kW
Rapid feed along X/Y/Z axes48 (option 30) m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 /Ø125 mm
Max. tool weight8 kg
Positioning accuracy0.010 mm
Repeatability0.006 mm
Parameters3870 x 2175 x 2850 mm
Weight5000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The V10L from PRIMINER is a powerful and high-performance machine that allows for precise and high-quality milling of parts from various materials. This machine is distinguished by its high accuracy and reliability, which are key characteristics for successful production.

One of the main features of the V10L model is its strength and durability. It is equipped with high-quality components and precision mechanisms that ensure accurate operation and longevity in use. This allows the machine to be used for extended periods without loss of quality and performance.

The V10L also boasts high power and productivity. Its engine is capable of reaching high speeds and delivering excellent performance during operation. This enables the rapid and efficient processing of large volumes of parts, thereby increasing production efficiency.

The design of the V10L is also worth mentioning. It is compact and user-friendly, allowing for convenient placement in production areas. With its convenient design and ease of operation, this machine is an ideal solution for producing parts of various types and sizes.

Overall, the V10L is a high-quality and reliable piece of equipment that enables the production of high-quality parts with exceptional accuracy and productivity. It is perfectly suited for use in various industries where high precision and performance are required.

Table size1100 x 500 mm
T-slot (width x quantity x distance)18 x 5 x 100 mm
Max. load600 kg
Movement along X/Y/Z axes1020 / 530 / 560 mm
Distance from spindle nose to table surface115 - 675 mm
Distance from spindle axis to column566 mm
Spindle taperSK 40 / BT 40 / CAT 40
Spindle speed10000 rpm
Motor power9 / 22 Siemens, 7.5 / 15 Fanuc kW
Rapid feed along X/Y/Z axes48 (option 30) m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 /Ø125 mm
Max. tool weight8 kg
Positioning accuracy0.010 mm
Repeatability0.006 mm
Parameters3870 x 2175 x 2850 mm
Weight5000 kg
Design Features
Ball screw
C3 class ball screws provide maximum accuracy and durability
Cast iron bed
The use of cast iron, heat-treated to relieve stress, ensures structural stability without deformation. Pre-tensioning in all axes minimizes thermal deformations to a minimum.
Basic equipment
Fully enclosed working area guard. Chip conveyor. Electrical cabinet with air conditioning. Rigid tapping. Ethernet, CF card, USB interface.
Additional options
Direct drive spindle 12000 RPM. Spindle cooling system and coolant supply through spindle. Oil separator from coolant. Workpiece setting and referencing sensor. Tool sensor. Rotating table (4th axis). Tilting rotating table (4th/5th axis).
