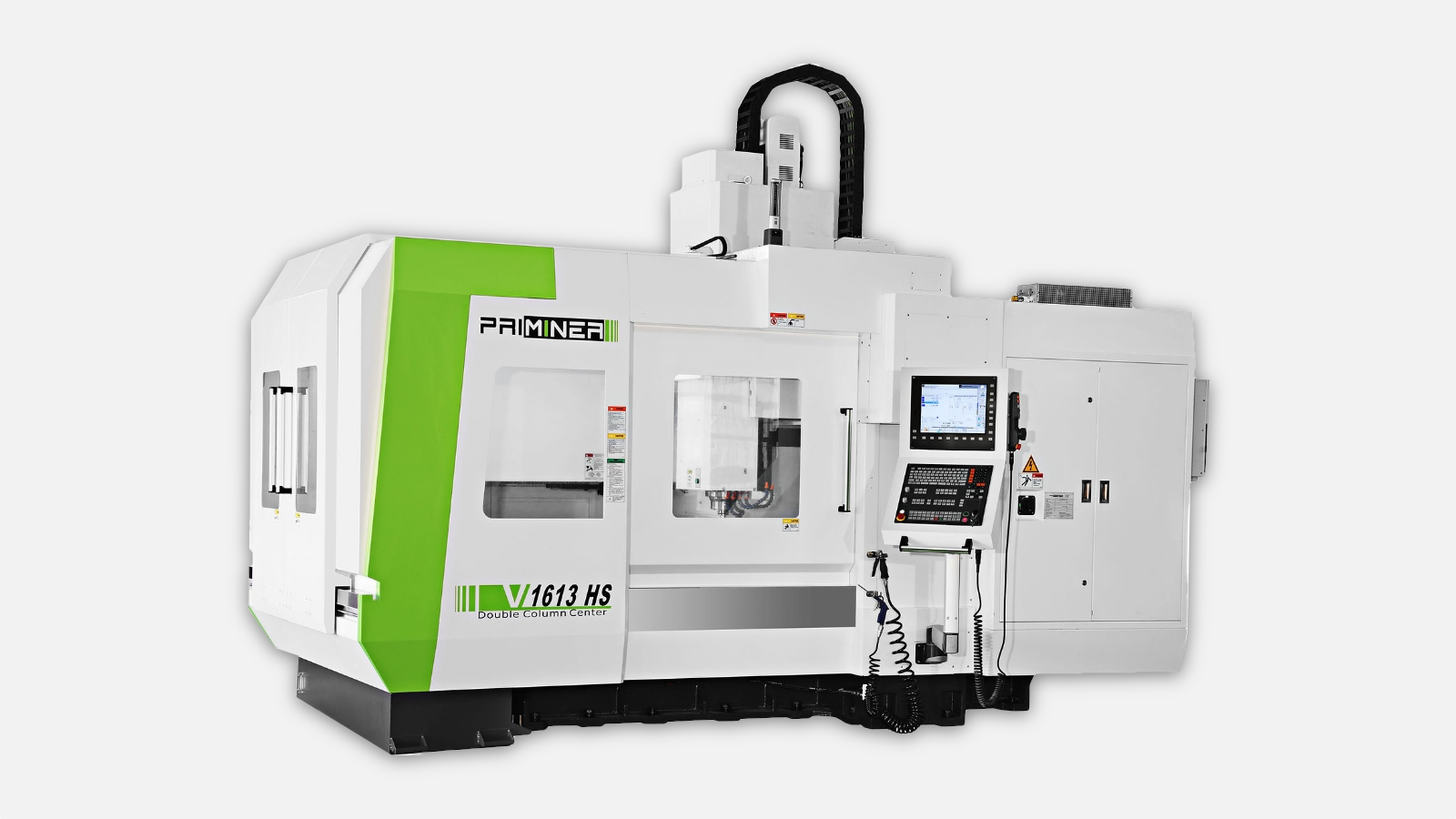

High-Speed Portal Machining Center V1613HS

Portal machining center V1613HS with 3 axes.

Table size1700 x 1200 mm
T-slot (width x number x distance)18 × 7 × 150 mm
Max. load3000 kg
Movement along axes X/Y/Z1600 / 1300 / 600 mm
Distance from spindle nose to table surface200 - 800 mm
Distance from spindle axis to column1380 mm
Spindle taperSK40 / BT40 / CAT40
Spindle speed12000 rpm
Motor power9/22 Siemens, 11/18.5 Fanuc
Drive typeDirect drive
Rapid feed along axes X/Y/Z20 m/min
Cutting speed1-12000 mm/min
Number of tools32 (option) pcs
Max. tool length300 mm
Max. tool diameterØ78 /Ø125 mm
Max. tool weight8 kg
Positioning accuracy (without optical scales)0.012 mm
Repeatability (without optical scales)0.010 mm
Positioning accuracy (with optical scales)0.010 mm
Repeatability (with optical scales)0.008 mm
Parameters5881x3990x3650 mm
Weight16000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The V1613HS model is a high-precision machining center from PRIMINER, designed for processing metal parts. This machine offers numerous advantages that make it an ideal choice for producing high-quality products.

The first noticeable feature when operating the V1613HS is its high accuracy. Each part is processed with great precision, resulting in high-quality products. This allows the V1613HS to be used across various industries that require precise machining of metal components.

The second advantage of the V1613HS is its high productivity. The machine boasts a considerable processing speed, enabling fast and efficient machining of metal parts. This makes the V1613HS an ideal choice for producing large batches of products.

The third advantage of the V1613HS is its reliability. The machine is made from high-quality materials and features a sturdy construction, ensuring it is durable and dependable. As a result, the V1613HS can be used for many years without a loss of processing quality.

The fourth advantage of the V1613HS is its user-friendliness. The machine is equipped with an intuitive control interface that allows for quick and easy adjustments to the desired operating mode. This makes the V1613HS an excellent choice for production environments that require rapid switching between different operating modes.

In summary, the V1613HS model is a high-tech and reliable milling machine that meets all the demands of modern manufacturing. With its accuracy, productivity, and reliability, the V1613HS can be used for producing a wide range of metal products, making it the perfect choice for many manufacturing tasks.

Table size1700 x 1200 mm
T-slot (width x number x distance)18 × 7 × 150 mm
Max. load3000 kg
Movement along axes X/Y/Z1600 / 1300 / 600 mm
Distance from spindle nose to table surface200 - 800 mm
Distance from spindle axis to column1380 mm
Spindle taperSK40 / BT40 / CAT40
Spindle speed12000 rpm
Motor power9/22 Siemens, 11/18.5 Fanuc
Drive typeDirect drive
Rapid feed along axes X/Y/Z20 m/min
Cutting speed1-12000 mm/min
Number of tools32 (option) pcs
Max. tool length300 mm
Max. tool diameterØ78 /Ø125 mm
Max. tool weight8 kg
Positioning accuracy (without optical scales)0.012 mm
Repeatability (without optical scales)0.010 mm
Positioning accuracy (with optical scales)0.010 mm
Repeatability (with optical scales)0.008 mm
Parameters5881x3990x3650 mm
Weight16000 kg
Design Features

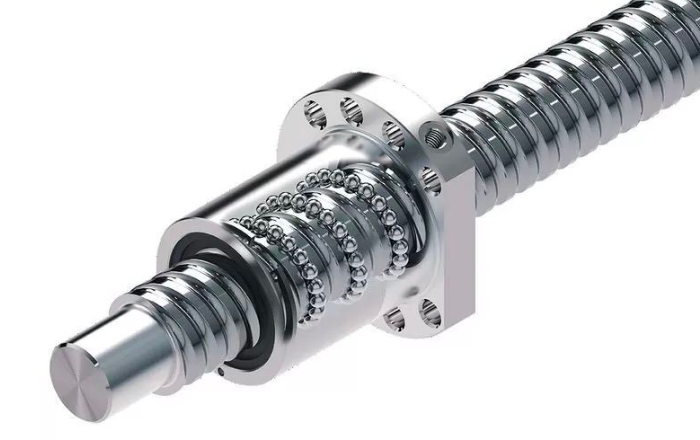

Ball Screw
• C3 class ball screws provide maximum accuracy and longevity.

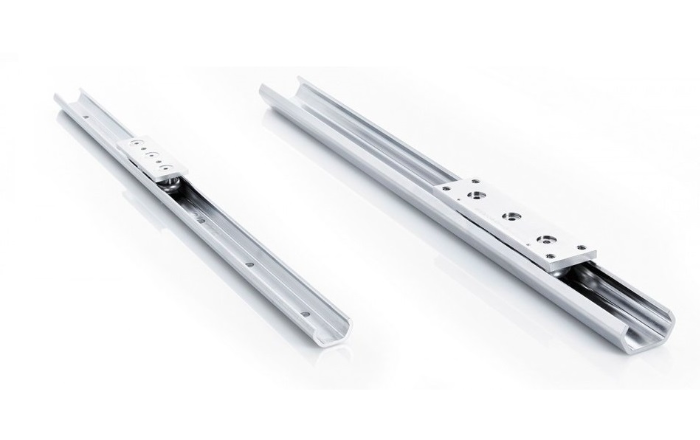

Guide Rails
Roller-type linear guides ensure high rigidity and the ability to load heavy workpieces.

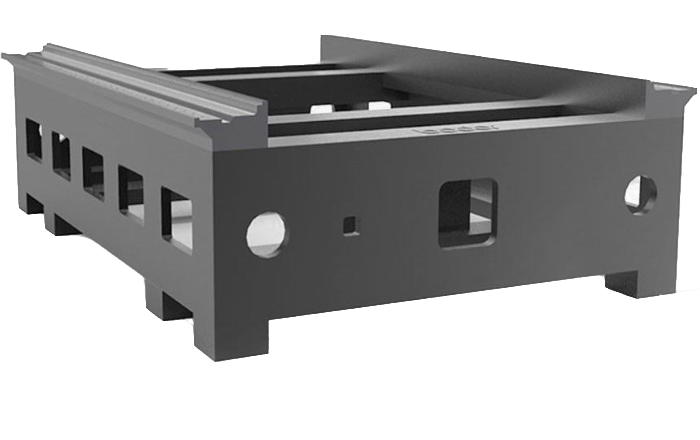

Base Frame
The use of stress-relieved cast iron ensures structural stability without deformation.
Basic configuration
Partially enclosed working area guard
Additional options
Electrical equipment cabinet with air conditioning
Rigid threading
Chip conveyor (two screw conveyors and one scraper)
Ethernet, CF card, USB interface
Automatic lubrication system
Coolant supply system
Spindle with direct drive 15000 RPM
Motor-spindle 20000 RPM, HSK A63
Tool changing system of lever type (32 positions)
Coolant supply through spindle
Optical scales
Oil separator from coolant
