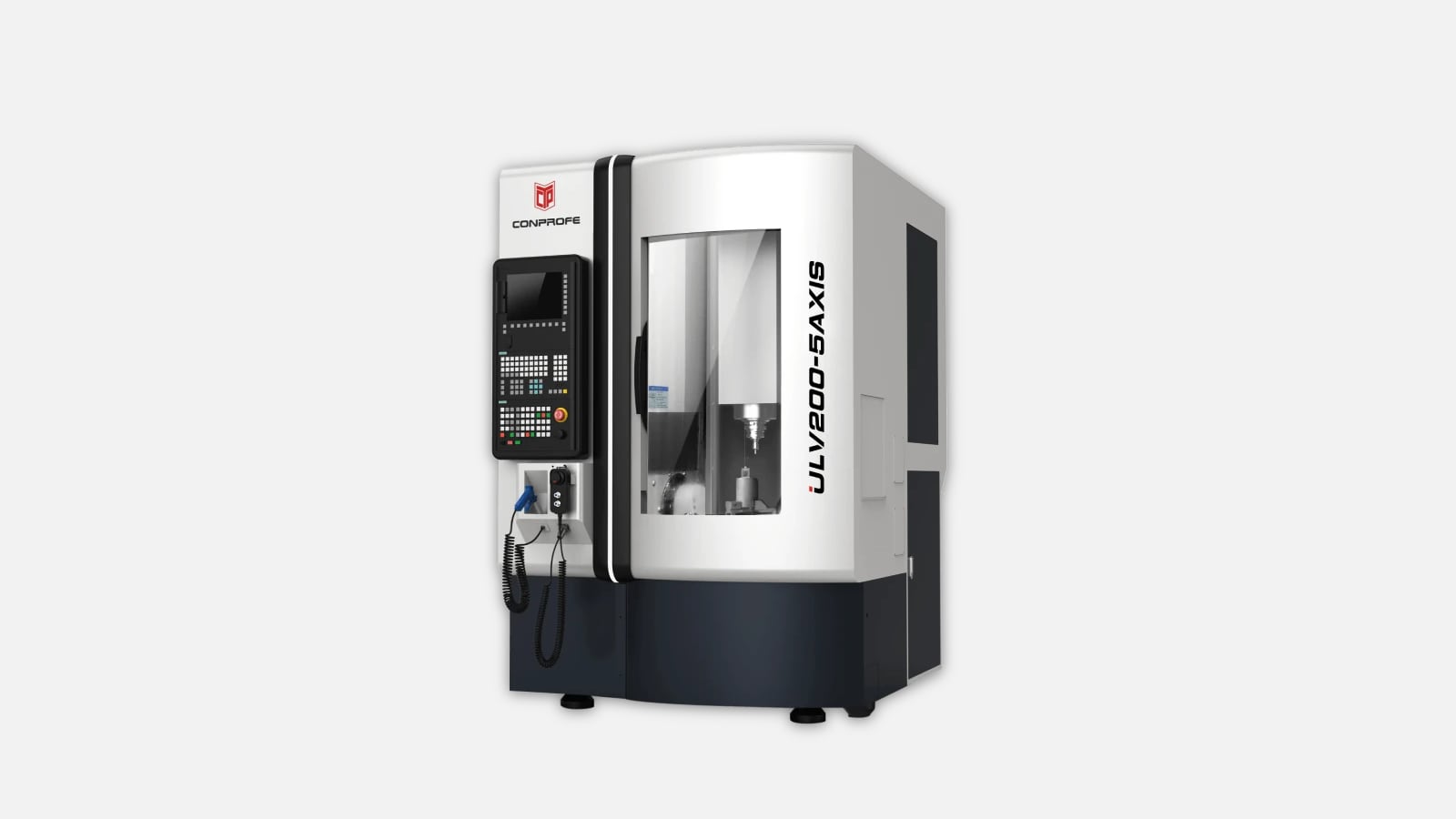

CNC Machining Center ULV-200 from CONPROFE

CNC Vertical Machining Center ULV-200 with 5 Axes.

Travel X250 mm
Travel Y250 mm
Travel Z250 mm
Spindle speed30,000-36,000 rpm
Maximum workpiece height200 mm
Table rotation (axis C)360 °
Feed rate on axes XYZ3,000 mm/s
Table load capacity30 kg
Positioning accuracy0.005 mm
Repeatability0.004 mm
Weight1,900 kg
Parameters1285x1795x030 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The ULV-200 model is a milling machine produced by CONPROFE, which falls into the category of small and medium-sized machines. This machine is designed for processing metals, wood, plastics, and other materials.

The main advantage of the ULV-200 model lies in its compactness and versatility. The machine’s design allows for the processing of parts with various sizes and shapes. As a result, it is suitable for small and medium-sized production.

One of the key features of the ULV-200 model is its high-precision spindle, which ensures stability and accuracy when working with materials. Additionally, this machine is equipped with a cooling system that prevents tool overheating and extends its service life.

For the operator’s convenience, the ULV-200 model features a user-friendly and intuitive interface that allows for quick adjustments of the machine’s operating parameters. Moreover, thanks to its design, it provides reliability and safety during operation.

Overall, the ULV-200 model is an excellent choice for small and medium-sized productions that require a compact and versatile milling machine with high precision and reliability.

Travel X250 mm
Travel Y250 mm
Travel Z250 mm
Spindle speed30,000-36,000 rpm
Maximum workpiece height200 mm
Table rotation (axis C)360 °
Feed rate on axes XYZ3,000 mm/s
Table load capacity30 kg
Positioning accuracy0.005 mm
Repeatability0.004 mm
Weight1,900 kg
Parameters1285x1795x030 mm
Design Features
Spindle direction
The spindle is in a vertical position.
Front end of spindle
The front end of the spindle of the milling machine - HSK-E40, HSK-E32.

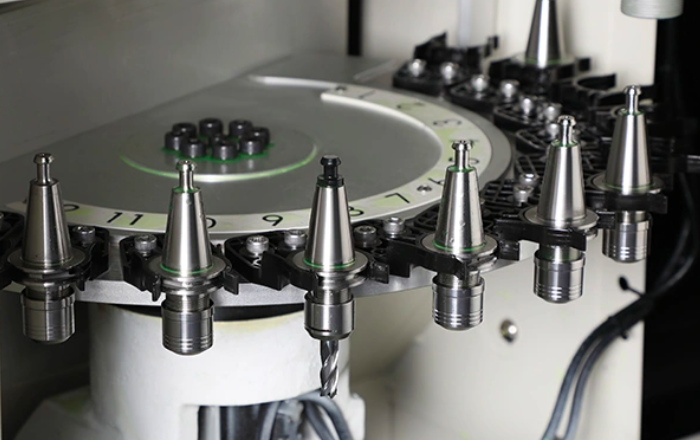

Number of tools
The machining center has 16-22 tools for high-quality and fast processing of various parts.

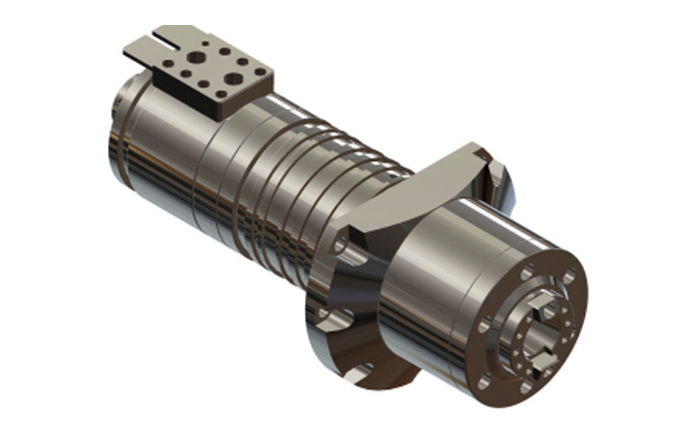

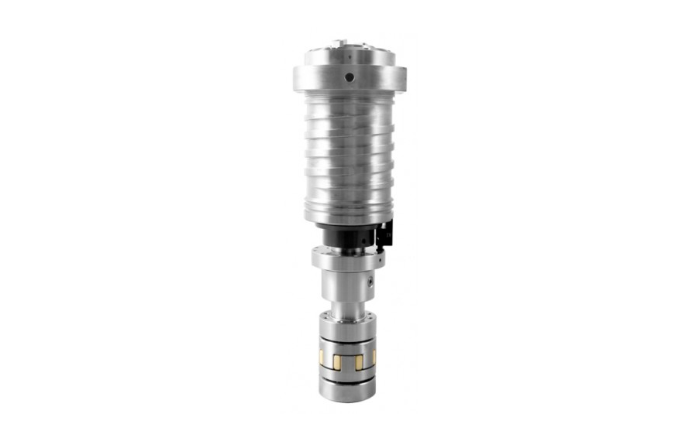

Ultrasonic spindle
Ultrasonic spindle, independently developed by Conprofe, is used to reduce cutting forces, ensuring high efficiency when machining difficult-to-cut materials.
System
SIEMENS 840Dsl is used for implementing 5-axis simultaneous machining with RTCP functionality.
