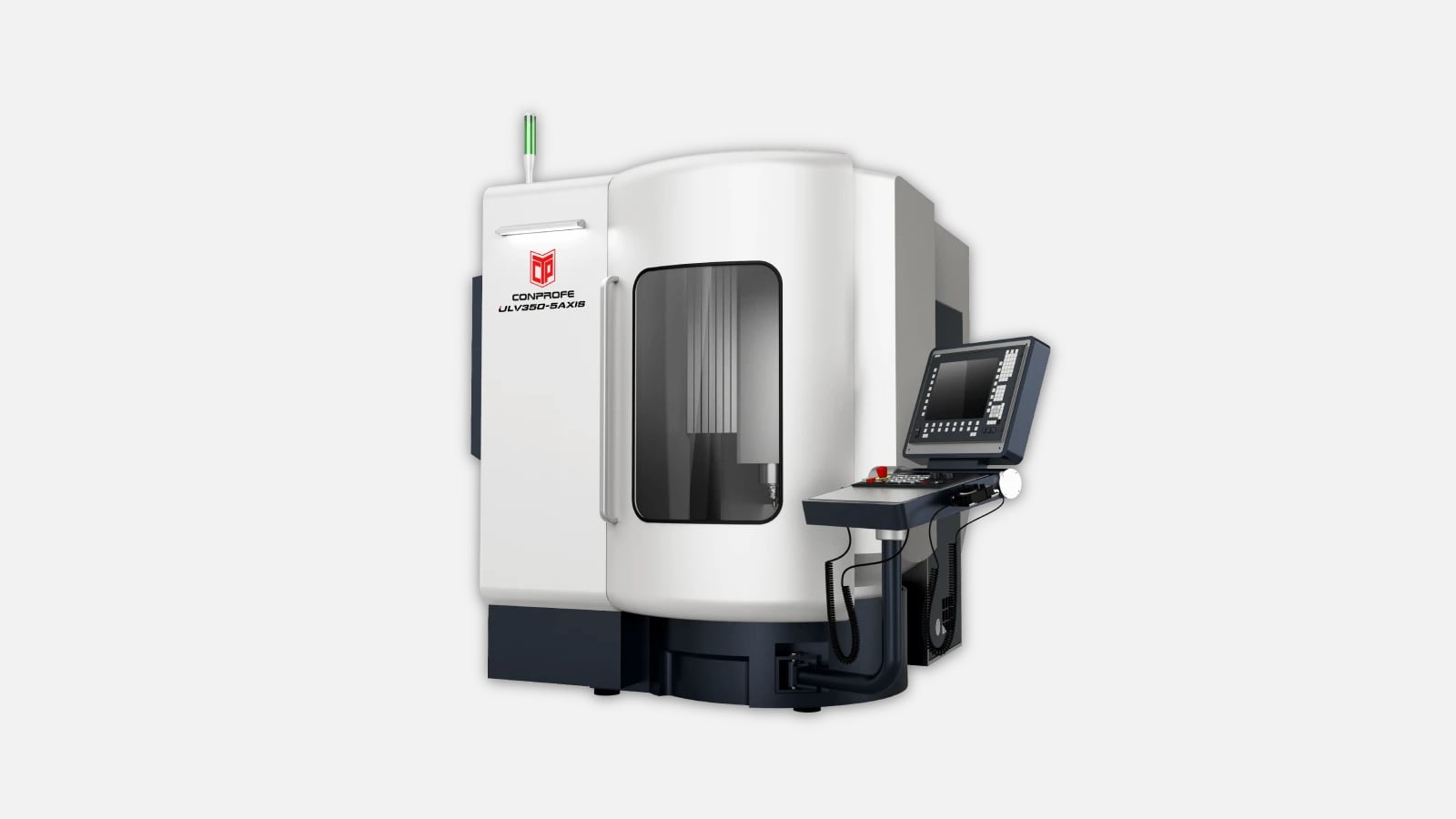

CNC Machining Center ULV-350 from COMPROFE

Vertical CNC machining center ULV-350 with 5 axes.

Travel X380
Travel Y420
Travel Z365
Spindle Speed24,000 RPM
Maximum Workpiece Height350 mm
Table Rotation (Axis C)360 °
Feed Rate in XYZ Axes30,000 mm/min
Table Load Capacity100 kg
Maximum Tool Weight4 kg
Positioning Accuracy0.005 mm
Repeatability0.004 mm
Weight6,000 kg
Parameters1900x2940x2350 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The ultralight vertical milling machine ULV-350 from CONPROFE is a powerful and user-friendly equipment designed for the production of high-precision parts. This machine features a compact design and small size, making it suitable for use in small workshops or laboratories.

The ULV-350 is equipped with a high-precision spindle that ensures maximum accuracy and stability when machining parts made from various materials. The machine offers a wide range of spindle speed options, allowing users to select the optimal setting for each material.

Additionally, the ULV-350 milling machine has a convenient control system that provides ease of use and accessibility. It is equipped with a modern CNC system that ensures high precision and responsiveness during operation.

One of the key features of this machine is its high productivity and efficiency. This equipment can process parts of different sizes and shapes with high precision and speed.

Finally, the ULV-350 is constructed from high-quality materials that guarantee durability and reliability during prolonged use. It has a compact and sturdy housing that protects it from external damage and ensures safe operation.

Overall, the ULV-350 milling machine from CONPROFE is a reliable and high-tech piece of equipment that can be very beneficial for the production of high-precision parts.

Travel X380
Travel Y420
Travel Z365
Spindle Speed24,000 RPM
Maximum Workpiece Height350 mm
Table Rotation (Axis C)360 °
Feed Rate in XYZ Axes30,000 mm/min
Table Load Capacity100 kg
Maximum Tool Weight4 kg
Positioning Accuracy0.005 mm
Repeatability0.004 mm
Weight6,000 kg
Parameters1900x2940x2350 mm
Design Features
Spindle direction
The ULV-350 machine has a vertically oriented spindle.
Front end of the spindle
The front end of the spindle is HSK A-63.

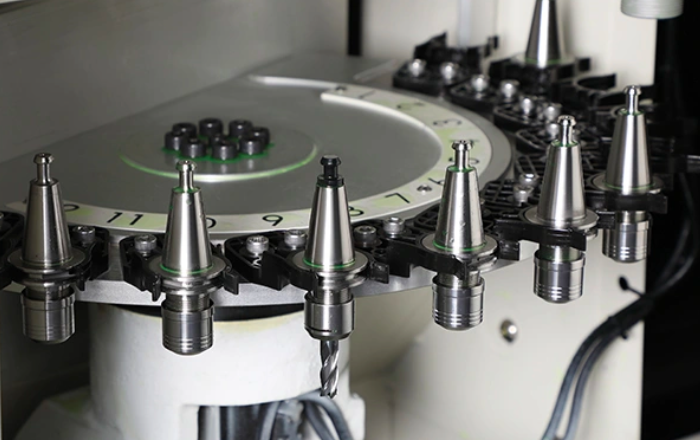

Number of tools
In this model, there are 15 tools in the magazine for comfortable operation.
Ultrasonic spindle
Ultrasonic spindle, independently developed by Conprofe, is used to reduce cutting force, ensuring high efficiency in machining hard-to-cut materials.
System
SIEMENS 840Dsl is used to implement 5-axis simultaneous processing with RTCP functionality.
