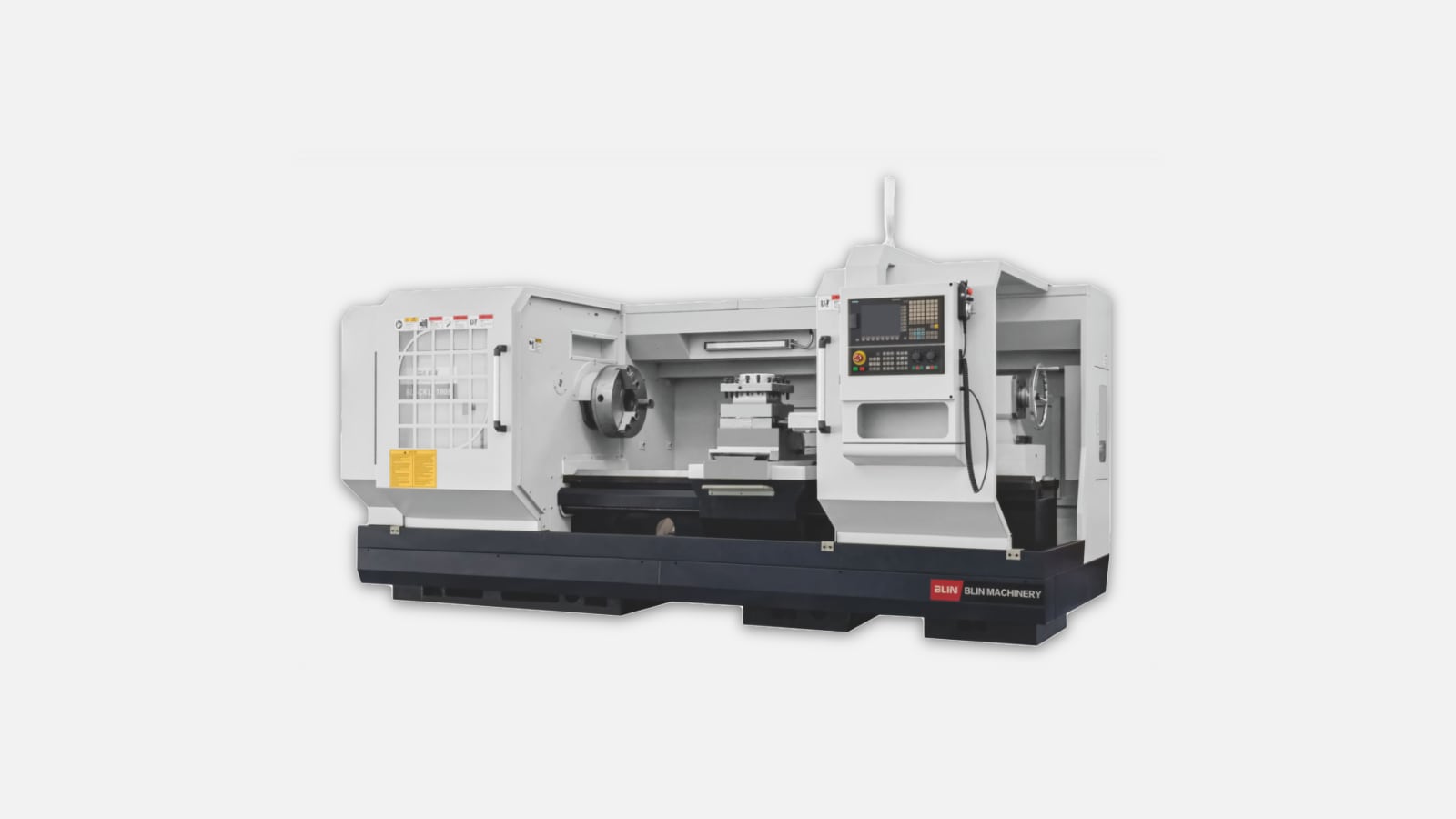

Heavy Series BL-CKL BLIN Lathes

Lathes with a straight bed of the BL-CKL series. Models: BL-CKL6163, BL-CKL6180A, BL-CKL6180B, BL-CKL61100.

Bed width550 mm
Distance above the bed630 mm
Distance above the saddle350 mm
Maximum turning length1000/1500/2000/3000/4000/5000/6000 mm
Maximum weight3000 kg
Spindle speed10-1000 rpm
Spindle taperC11
Spindle hole104 mm
Chuck315 mm
Spindle motor power11 kW
Rapid movements along X/Z axes4/6 m/min
Movement along X axis320 mm
Movement along Z axis850/1350/1850/2850/3850/4850/5850 mm
Number of tools4 pcs
Tool shank32x32 mm
Quill diameter100 mm
Quill travel250 mm
TaperMT5
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-CKL is a high-precision lathe machine created by the renowned Chinese manufacturer BLIN. It is suitable for a wide range of tasks, from cutting to engraving.

The main feature of this model is its high processing accuracy, achieved through a powerful and reliable electric motor, as well as high-precision spindles that ensure smooth and stable rotation.

Models BL-CKL6163, BL-CKL6180A, BL-CKL6180B, and BL-CKL61100 are also equipped with a control system that allows users to easily operate the machine and configure it for various tasks. The modern display enables quick and convenient adjustment of machine parameters and monitoring of its performance.

This milling machine has a stable construction and durability, ensuring a long service life. It is also easy to install and can be used in various conditions.

BL-CKL is the ideal choice for professional craftsmen looking for a high-precision and user-friendly lathe machine. It provides maximum accuracy and efficiency for a variety of tasks in production or workshops.

Bed width550 mm
Distance above the bed630 mm
Distance above the saddle350 mm
Maximum turning length1000/1500/2000/3000/4000/5000/6000 mm
Maximum weight3000 kg
Spindle speed10-1000 rpm
Spindle taperC11
Spindle hole104 mm
Chuck315 mm
Spindle motor power11 kW
Rapid movements along X/Z axes4/6 m/min
Movement along X axis320 mm
Movement along Z axis850/1350/1850/2850/3850/4850/5850 mm
Number of tools4 pcs
Tool shank32x32 mm
Quill diameter100 mm
Quill travel250 mm
TaperMT5
Design Features
Base
Lathe machine on a straight bed for heavy machining. Bed guide width 550-600 mm, spindle diameter 104.
Basic configuration
CNC system Siemens. 4-position turret. Coolant supply system. Manual tailstock. Manual chuck. Automatic lubrication system. Working area lighting. Servo motors and servo drives on X/Z axes. Tool set. Machine manual. CE standards. Fixed steady rest.
Additional options
CNC system Fanuc/GSK. Increased power. Hydraulic chuck. Hydraulic tailstock. Air conditioner for the electrical cabinet. Increased spindle hole. Turret head for 6/8 tools. Door open sensor. Tooling kit for turret head.
