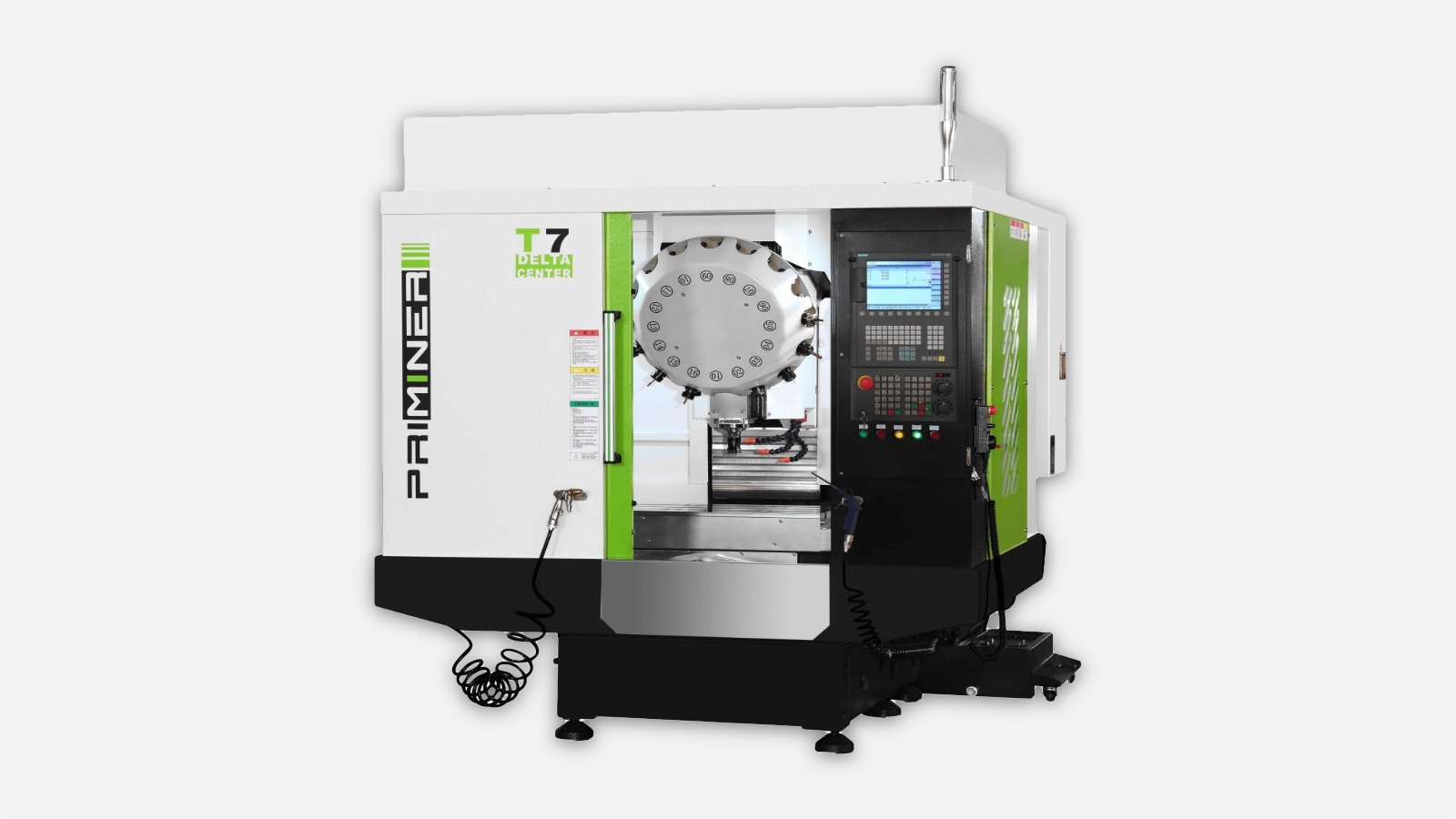

Drilling and Tapping Center T7 by PRIMINER

Delta center PRIMINER T7 with 3 axes.

Table900x420 mm
T-slot Mountings (width x quantity x distance)14x3x125 mm
Maximum Load350 kg
Movement along XY/Z axes760450420 mm
Spindle Servo Motor4.8/19 Siemens 3.7/13 Fanuc
Spindle ConeVBT 30
Spindle Speed1200 rpm
Feed Rate X/Z48 m/min
Number of Tools21 pcs
Positioning Accuracy0.010 mm total displacement
Repeatability0.006 mm total displacement
Parameters220024602400 mm
Weight3700 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The T7 from PRIMINER is a high-precision machine that ensures high accuracy and performance in milling. It is the ideal choice for industries and workshops that require stable operation and high-quality execution.

The T7 model is equipped with a powerful motor and a rigid frame, which provides stability and precision during operation. The machine features high movement speeds, allowing for faster and more accurate material processing, reducing production time and increasing efficiency.

Key features of the machine include a wide range of spindle rotation speeds, high machining accuracy, integrated cooling and lubrication systems, as well as easy operation and setup.

Additionally, the T7 model has a large working area, allowing for the processing of various materials and shapes. Its design enables it to work with large workpieces while reducing the likelihood of errors during machining.

Overall, the T7 model is a reliable and powerful milling tool suitable for a wide range of industrial and workshop tasks. It provides high-quality and precise material processing, as well as guarantees long service life and reliability in operation.

Table900x420 mm
T-slot Mountings (width x quantity x distance)14x3x125 mm
Maximum Load350 kg
Movement along XY/Z axes760450420 mm
Spindle Servo Motor4.8/19 Siemens 3.7/13 Fanuc
Spindle ConeVBT 30
Spindle Speed1200 rpm
Feed Rate X/Z48 m/min
Number of Tools21 pcs
Positioning Accuracy0.010 mm total displacement
Repeatability0.006 mm total displacement
Parameters220024602400 mm
Weight3700 kg
Design Features

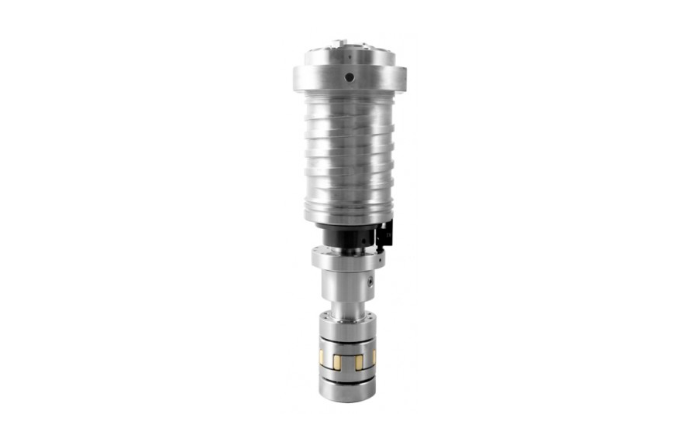

Spindle
Direct spindle drive with a standard speed of 12000 RPM.

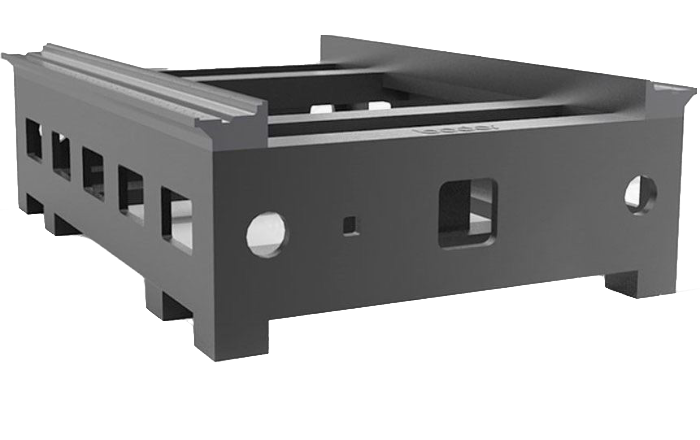

Bed
Very rigid center bed for maximum acceleration.

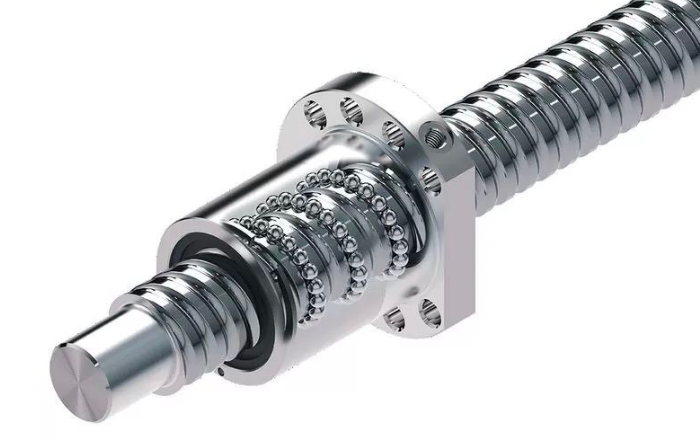

Ball Screw
High-speed and low-noise ball screws and linear guides on three axes.
Basic configuration
Fully enclosed splash-proof system. Direct spindle drive 12000 RPM. Tool change device with servo drive for 21 stations. Electrical cabinet with heat exchanger. Rigid threading. Ethernet, CF card and USB interface. Automatic lubrication system. Cooling system. Air blow during workpiece processing. Adjustment bolts and blocks. Coolant gun. Air gun.
Additional options
Spindle motor 20000 RPM. Cooling through spindle. Oil collector. 4th axis. Workpiece sensor. Tool sensor.
