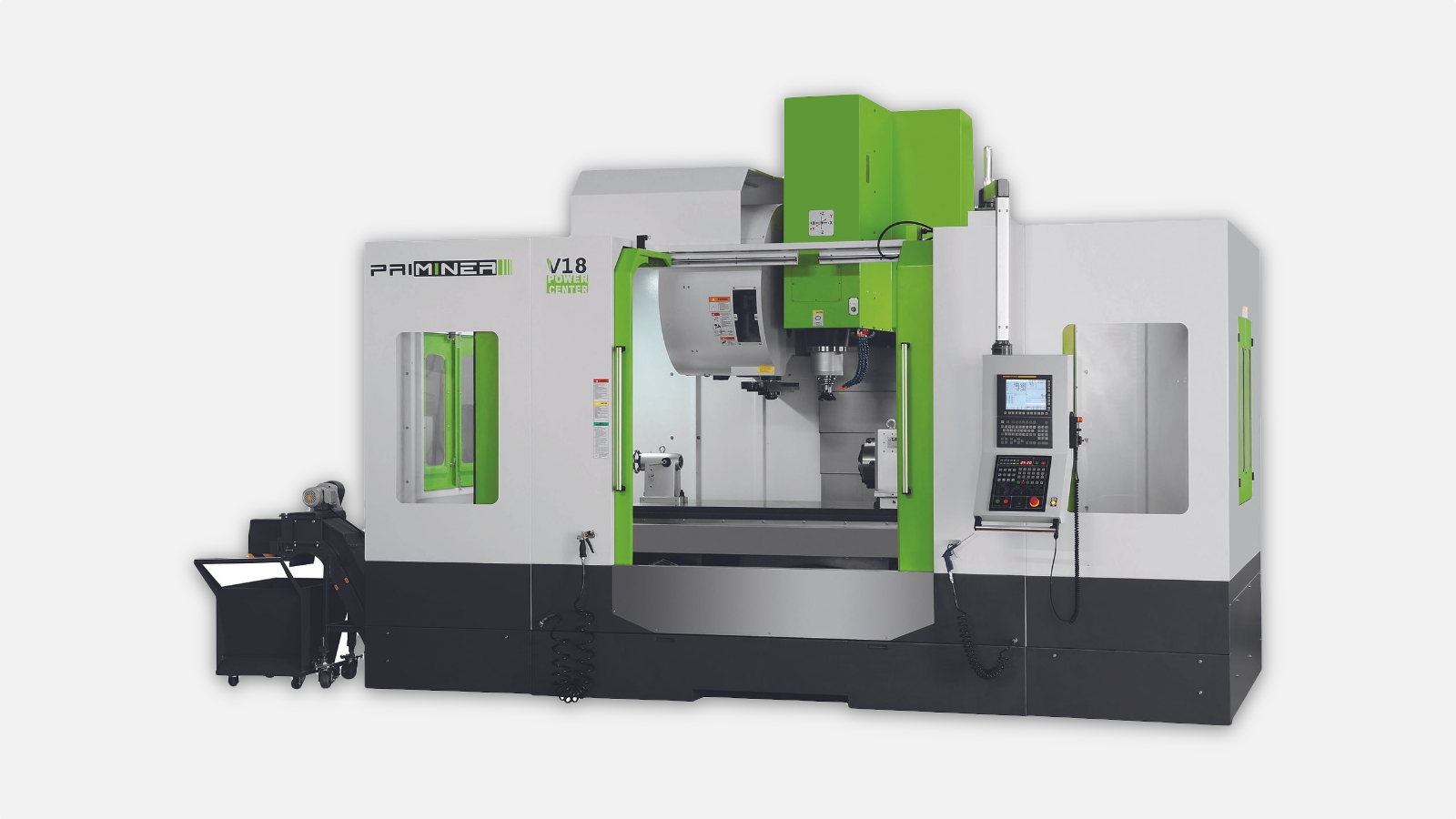

Power V18 Machining Center by PRIMINER

Name: Power V18 Machining Center by PRIMINER
Rating: 4.2 (1 reviews)

Power V18 machining center with 3 axes.

Table size2000 x 900 mm
T-slot (width x quantity x distance)22 x 5 x 165 mm
Max. load2000 kg
Movement along axes X/Y/Z1800 / 900 / 600 mm
Distance from spindle nose to table surface110 - 710 mm
Distance from spindle axis to column950 mm
Spindle taperSK 50 / BT 50 / CAT 50
Spindle speed6000 rpm
Motor power17.0/42.0 (Siemens) 15/20.3 (Fanuc) kW
Rapid feed along axes X/Y/Z20/20/15 m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length400 mm
Max. tool diameterØ125 / Ø245
Max. tool weight15 kg
Positioning accuracy0.016 mm
Repeatability0.010 mm
Parameters6060 x 3270 x 3650 mm
Weight17500 kg

All Specifications

Get a Consultation

+971 (56) 980-32-49

Get an Offer

Ask a Question

Description
Specifications
FAQ
Video

Here is the description of the V18 machine:

The V18 is a high-quality milling machine designed and manufactured by PRIMINER. It is intended for processing various materials such as metal, plastic, wood, and others, and can be used in various industries and manufacturing sectors.

The main advantage of the V18 machine is its high precision, which is achieved through the use of quality components and manufacturing technologies. The machine is equipped with an innovative control system that allows for easy setup and operation, making it an ideal choice for small and medium-sized enterprises.

The V18 features a high-quality spindle that provides high speed and precision in milling operations. It also has a large table size, which allows for the processing of large parts and workpieces. The machine includes numerous additional features that enhance its performance and efficiency.

Furthermore, the V18 has a compact size and lightweight design, making it easy to install and move. It also boasts high reliability and durability, allowing it to operate problem-free for many years.

If you are looking for a reliable and high-quality milling machine, the V18 from PRIMINER is an ideal choice. It offers high precision, performance, and reliability, making it an indispensable tool for any manufacturing enterprise.

Table size2000 x 900 mm
T-slot (width x quantity x distance)22 x 5 x 165 mm
Max. load2000 kg
Movement along axes X/Y/Z1800 / 900 / 600 mm
Distance from spindle nose to table surface110 - 710 mm
Distance from spindle axis to column950 mm
Spindle taperSK 50 / BT 50 / CAT 50
Spindle speed6000 rpm
Motor power17.0/42.0 (Siemens) 15/20.3 (Fanuc) kW
Rapid feed along axes X/Y/Z20/20/15 m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length400 mm
Max. tool diameterØ125 / Ø245
Max. tool weight15 kg
Positioning accuracy0.016 mm
Repeatability0.010 mm
Parameters6060 x 3270 x 3650 mm
Weight17500 kg

Design Features

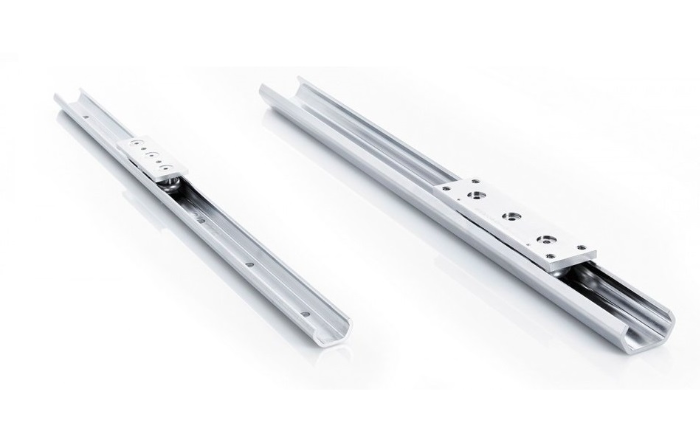

Roller guides

X and Y axes are equipped with roller linear guides, while the Z axis is equipped with sliding guides

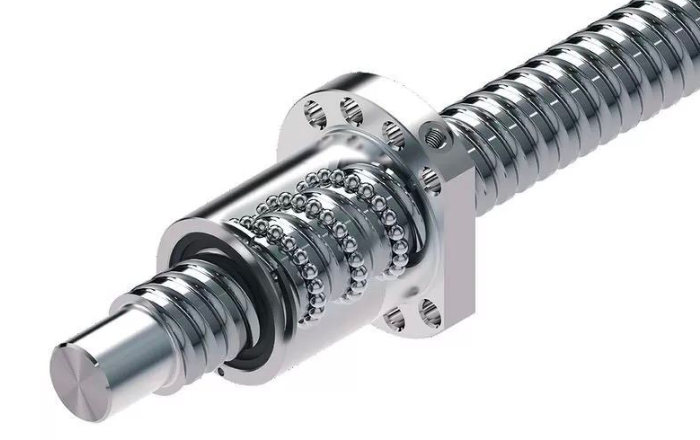

Ball screw

Spindle with a cone size of 50 and a belt drive of 6000 RPM as standard. Optionally, a C3 class ball screw reducer can be installed to ensure maximum accuracy and durability

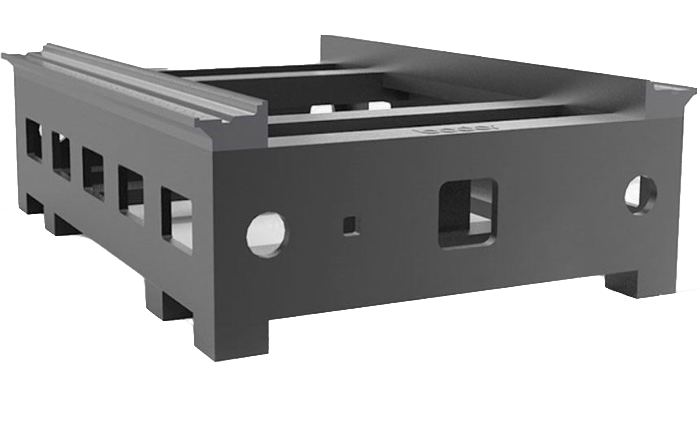

Bed

Pre-tensioning on all axes minimizes thermal deformations.

Standard equipment

Fully enclosed working area protection. Belt-driven spindle 6000 RPM. Lever-type tool change system (24 positions). Chip conveyor (2 screw conveyors and 1 scraper conveyor). Electrical control cabinet with air conditioning. Rigid threading. Ethernet, CF card, USB interface.

Additional options

Spindle cooling system. Gear spindle 6000 RPM, gear ratio 1:4. Z-axis travel – 720 mm (distance from spindle tip to table surface – 160-880 mm). Coolant supply system through spindle. Oil separator from coolant. Workpiece setting and reference sensor. Rotary table (4th axis). Tilting rotary table (4/5 axis).
