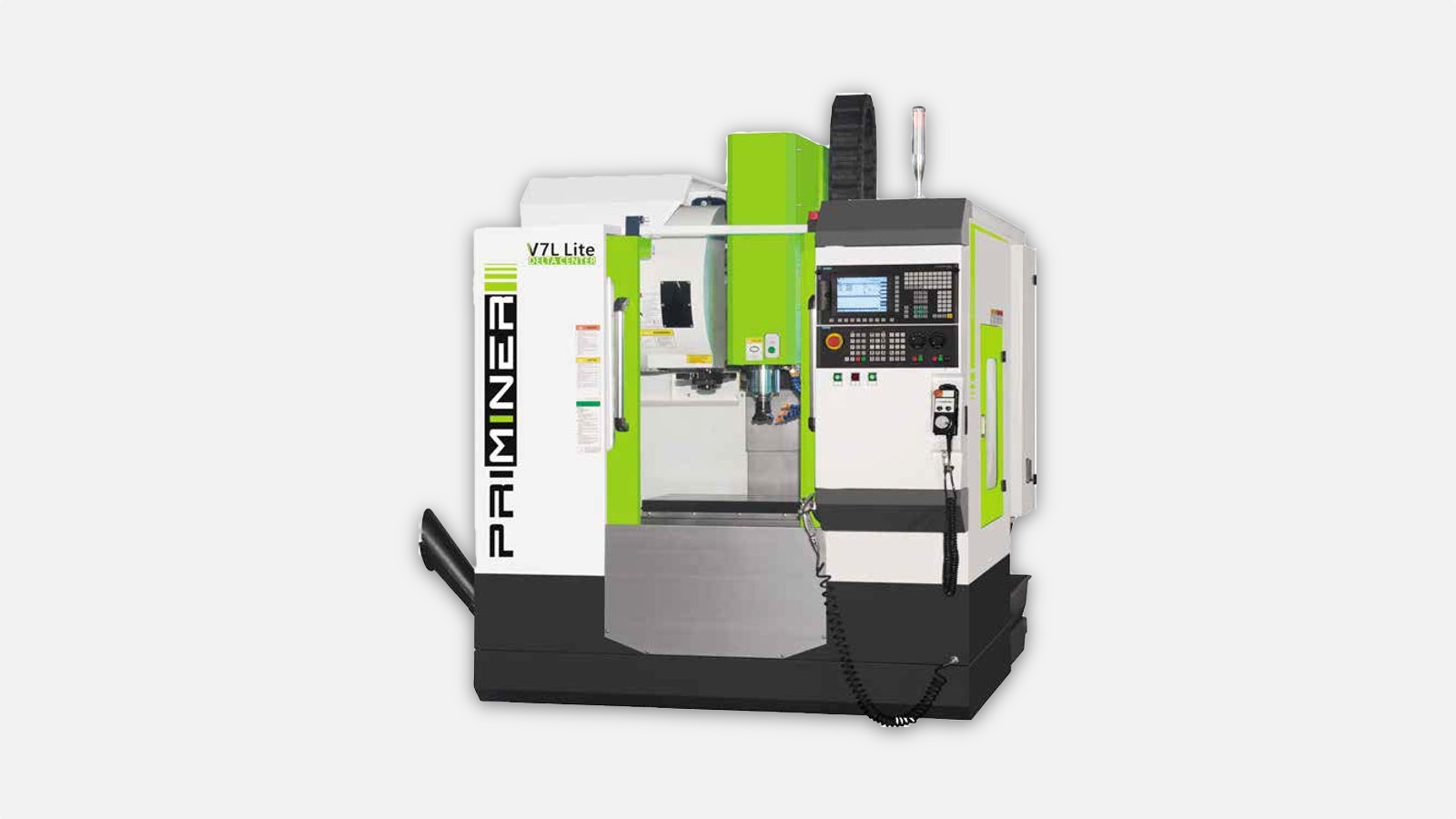

Alpha V7L Lite Machining Center by PRIMINER

Processing center Alpha V7L Lite with 3 axes.

Table size900 x 420 mm
T-slot (width x qty x distance)14 x 3 x 125 mm
Max. load350 kg
Travel on X/Y/Z axes760 / 450 / 420 mm
Distance from spindle axis to column517 mm
Spindle taperBT 40 / SK 40
Spindle speed10000 rpm
Motor power4.8/19 Siemens or 3.7/13 Fanuc kW
Rapid feed on X/Y/Z axes30 m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 / Ø125 mm
Max. tool weight8 kg
Positioning accuracy0.008 mm
Repeatability0.006 mm
Parameters3250 × 2710 × 2900 mm
Weight4500 kg
All Specifications
189 000د.إ
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The V7L-Lite is a reliable and multifunctional milling machine. This machine is capable of providing high precision and quality machining, making it an ideal choice for the production of various products.

One of the main features of the V7L-Lite is its high processing speed, which reaches up to 12,000 revolutions per minute. This allows for reduced production time and significantly increases productivity.

However, speed is not the only advantage of the V7L-Lite. The machine also possesses high accuracy and stability, ensuring high quality machining. The tool positioning control system allows for precise operation with minimal deviations.

Furthermore, the V7L-Lite offers a wide range of settings, allowing it to be adapted to different types of materials and tasks. The cooling system effectively removes chips and reduces the risk of tool overheating.

Finally, the V7L-Lite is easy to operate and provides a high degree of automation. This reduces machine setup time and simplifies the production process. Overall, the V7L-Lite is an excellent choice for producing high-quality products in large volumes.

Table size900 x 420 mm
T-slot (width x qty x distance)14 x 3 x 125 mm
Max. load350 kg
Travel on X/Y/Z axes760 / 450 / 420 mm
Distance from spindle axis to column517 mm
Spindle taperBT 40 / SK 40
Spindle speed10000 rpm
Motor power4.8/19 Siemens or 3.7/13 Fanuc kW
Rapid feed on X/Y/Z axes30 m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 / Ø125 mm
Max. tool weight8 kg
Positioning accuracy0.008 mm
Repeatability0.006 mm
Parameters3250 × 2710 × 2900 mm
Weight4500 kg
Design Features

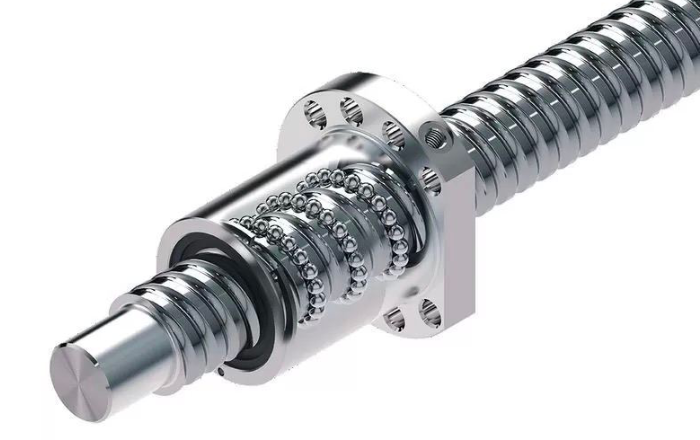

Ball screw
C3 class ball screws provide maximum precision and durability
Tension
Pre-tensioning across all axes minimizes thermal deformations.
Parts
Manufacturing of small individual products. Prototype production, R&D
Standard equipment
Fully enclosed guarding of the machine's work area. Belt-driven spindle 10000 RPM. Tool change system of lever type (24 positions). Heat exchanger for the electrical equipment cabinet. Rigid tapping. Ethernet, CF card, USB interface.
Additional options

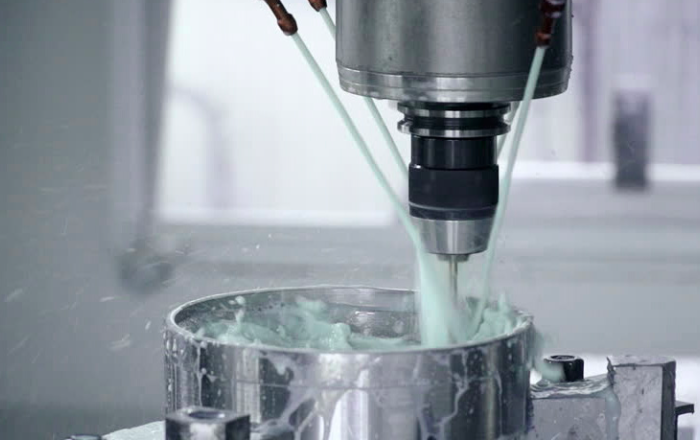

Spindle cooling system. Coolant supply system through the spindle. Rotary table (4th axis). Workpiece setting and alignment sensor. Tool sensor. Oil mist collector. Oil separator from the coolant.

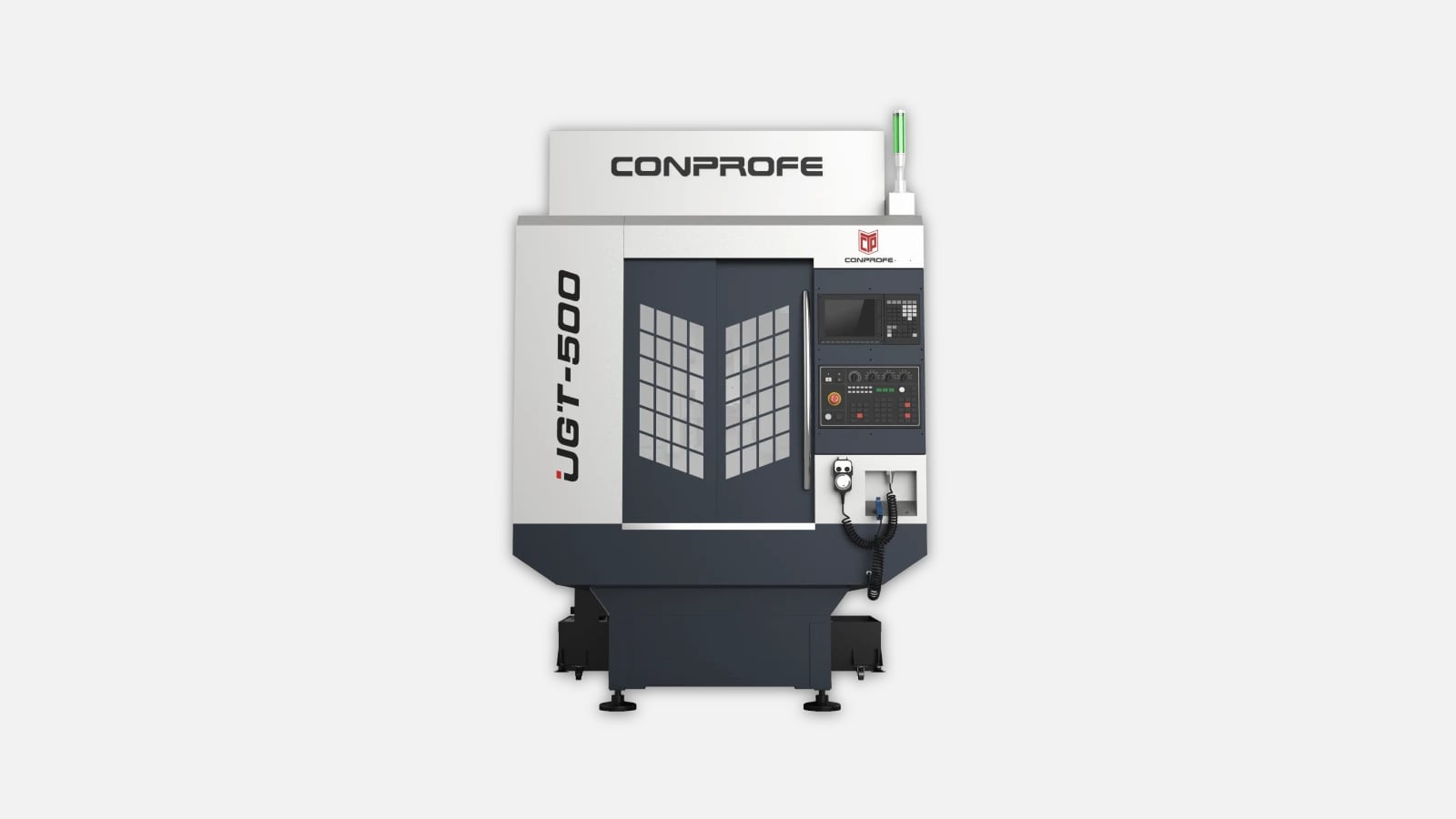

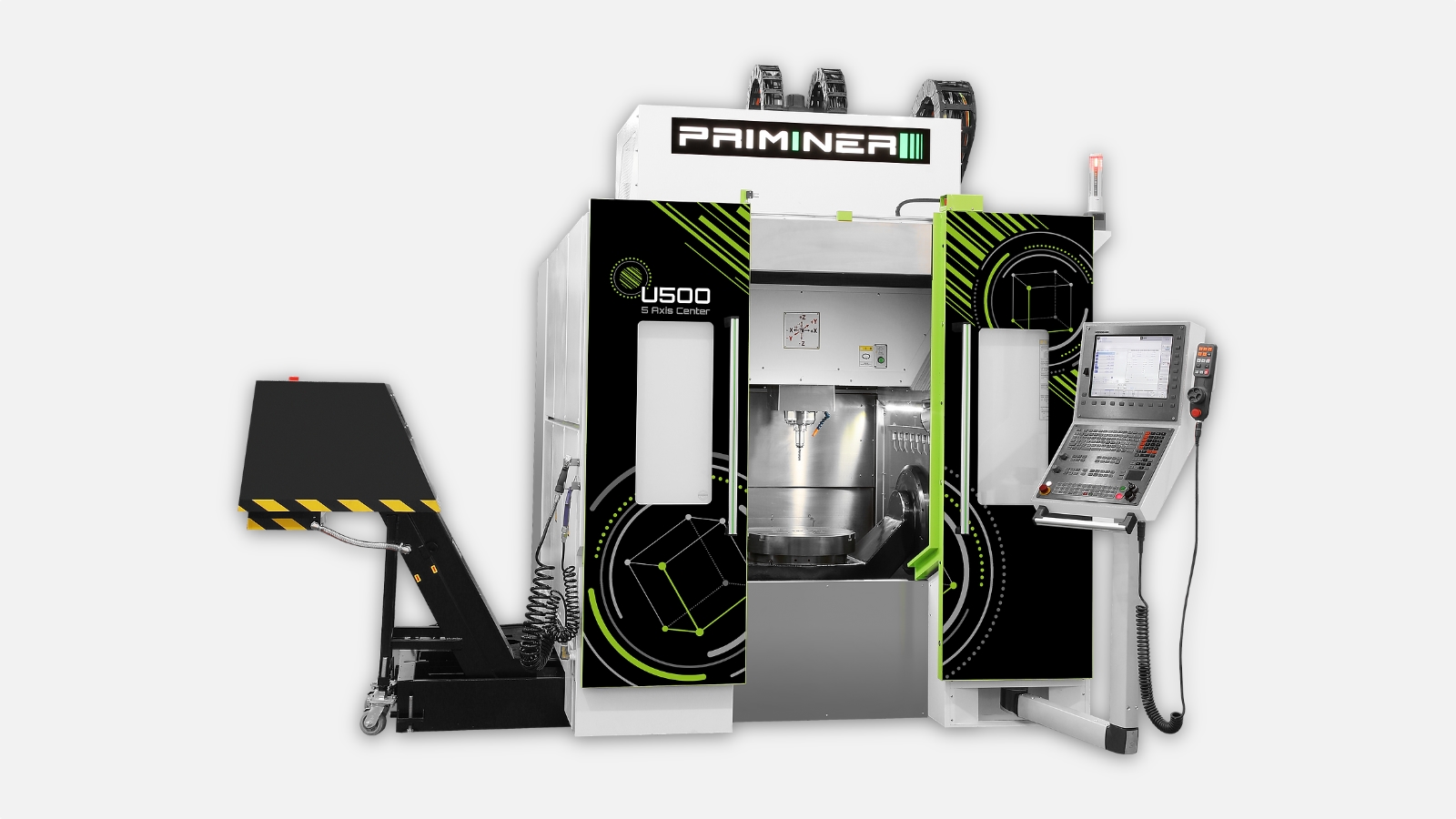

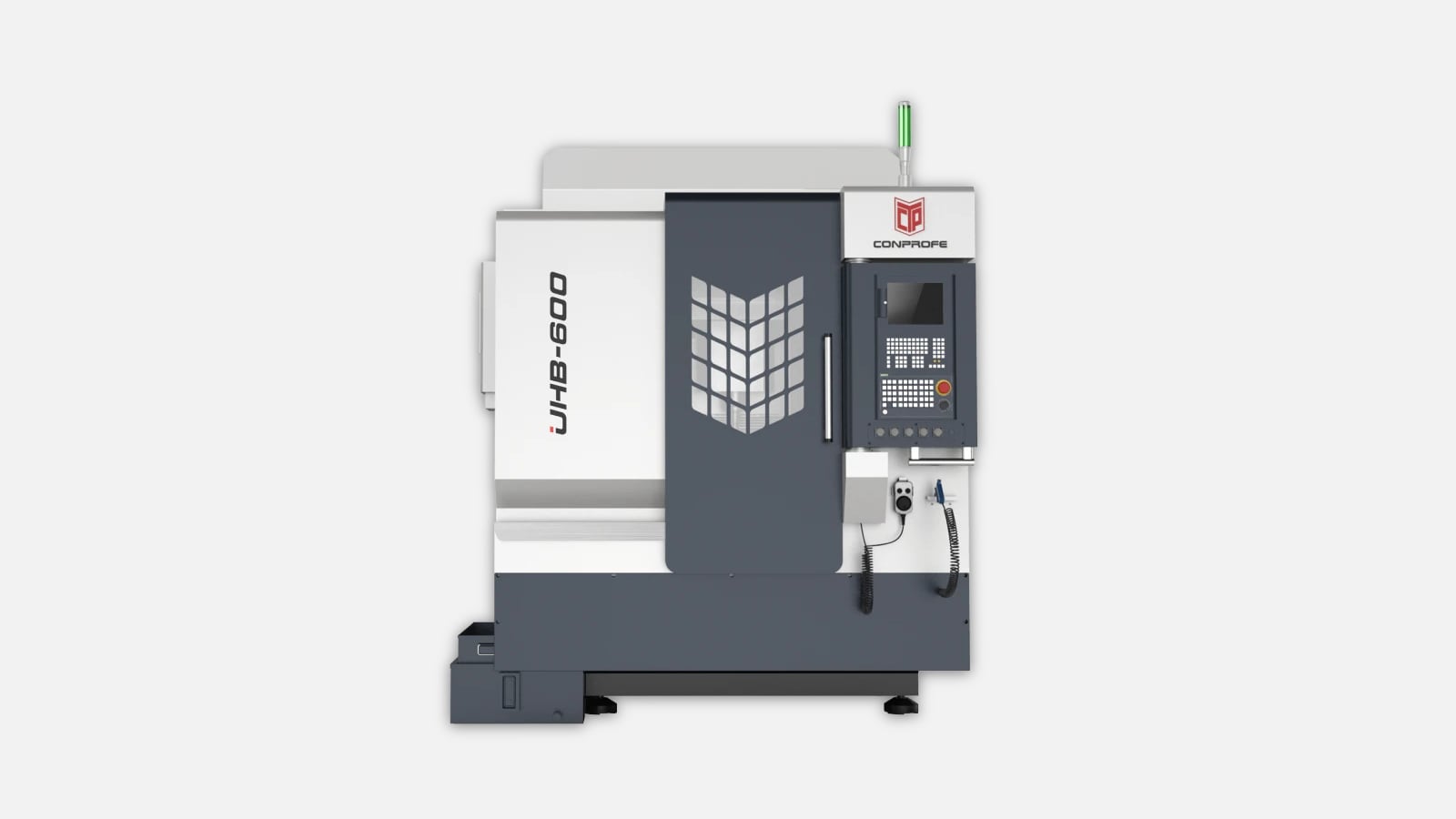

Similar Products
