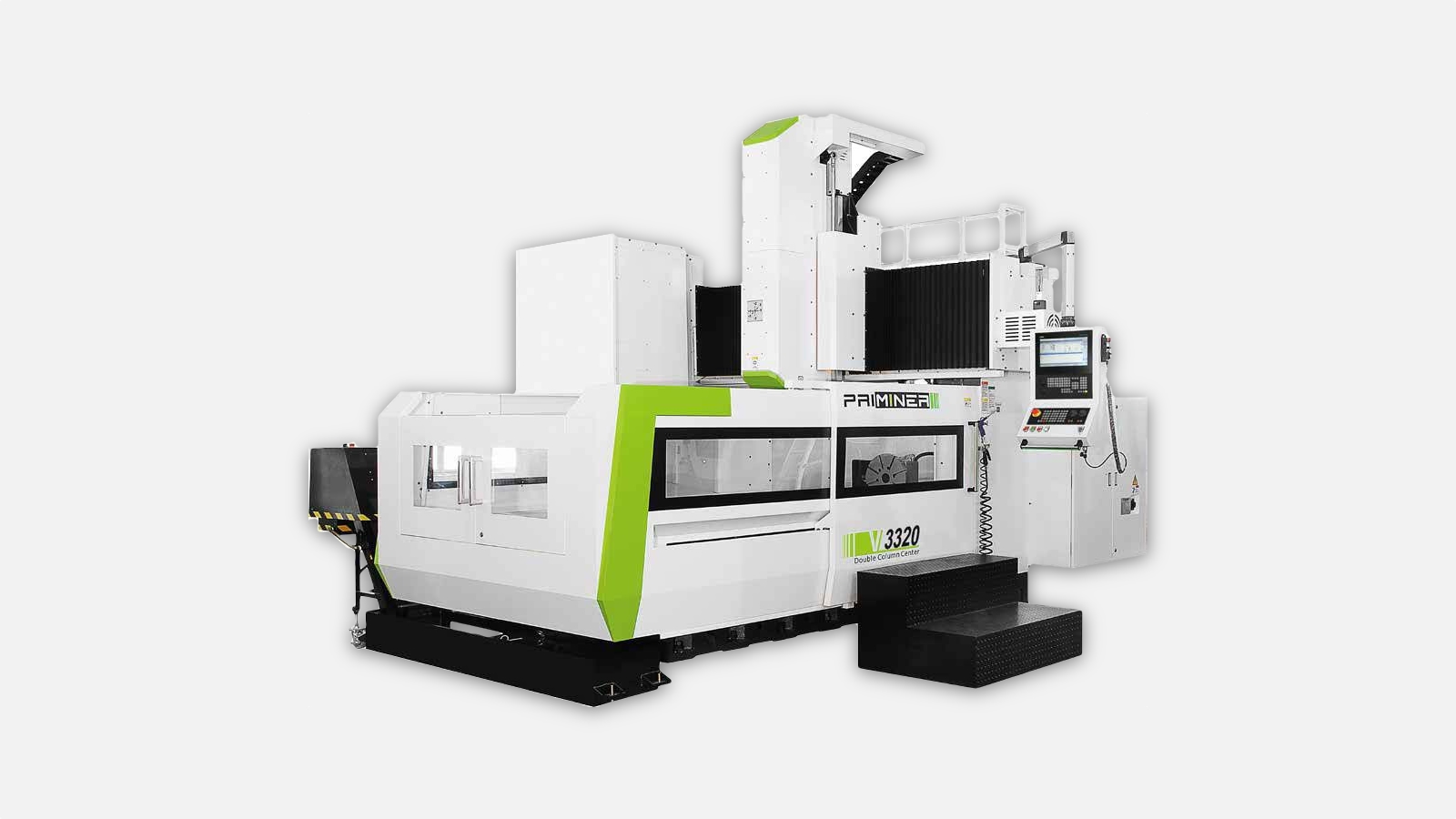

PRIMINER V3320 Portal Machining Center

Portal machining center PRIMINER V3320.

Table Size3300×1700 mm
T-slot (width x number x distance)22×9×180 mm
Max. load on table10000 kg
Travel along axes X/Y/Z3300/2700/1000 mm
Distance from spindle nose to table surface200-1200 mm
Distance from spindle axis to column2000 mm
Spindle speedBT50, 6000 RPM
Power/Torque (SIEMENS)22/60 kW, 172/380 Nm
Power/Torque (FANUC)22/45 kW, 140/286 Nm
Spindle speed (optional, for SIEMENS only)HSK A100, 12000 RPM
Power/Torque20/22.5 kW, 298/346 Nm
Rapid feed along axes X/Y/Z24/24/30 m/min
Cutting speed1-12000 mm/min
Positioning accuracy0.018 mm
Repeatability0.015 mm
Parameters7800×5300×4950 mm
Weight30000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

V3320 from PRIMINER is a high-precision and reliable milling machine (portal machining center) that offers extensive capabilities for processing various materials. It is ideally suited for the production of small to medium series of parts, as well as for workshops and laboratories.

One of the main distinguishing features of the V3320 is its high machining accuracy, achieved through the use of advanced technologies and materials. Additionally, the machine boasts great rigidity and strength, allowing it to process materials at high speeds and with high precision.

The V3320 is equipped with a powerful spindle that ensures high surface quality and machining accuracy. The ability to adjust the spindle speed allows for optimal processing rates of different materials.

Furthermore, the machine has a large worktable, enabling the processing of parts of various sizes and shapes. The capability to change the table’s tilt angle and move it in three coordinates makes the V3320 one of the most versatile and user-friendly milling machines on the market.

Finally, the V3320 operates at a low noise and vibration level, making it one of the most comfortable and easy-to-use milling machines available. This allows operators to work with it for extended periods without fatigue and stress.

It is worth noting that the V3320 is the ideal solution for the production of small to medium series of parts, as well as for workshops and laboratories. It is a reliable and versatile machine that allows for the processing of various materials with high precision and quality.

Table Size3300×1700 mm
T-slot (width x number x distance)22×9×180 mm
Max. load on table10000 kg
Travel along axes X/Y/Z3300/2700/1000 mm
Distance from spindle nose to table surface200-1200 mm
Distance from spindle axis to column2000 mm
Spindle speedBT50, 6000 RPM
Power/Torque (SIEMENS)22/60 kW, 172/380 Nm
Power/Torque (FANUC)22/45 kW, 140/286 Nm
Spindle speed (optional, for SIEMENS only)HSK A100, 12000 RPM
Power/Torque20/22.5 kW, 298/346 Nm
Rapid feed along axes X/Y/Z24/24/30 m/min
Cutting speed1-12000 mm/min
Positioning accuracy0.018 mm
Repeatability0.015 mm
Parameters7800×5300×4950 mm
Weight30000 kg
Design Features
Rolling guides
Roller-type linear guides provide high rigidity and the ability to load heavy workpieces.
Balancing system
Hydraulic balancing system on the Z-axis.
Wide massive columns
Wide massive columns increase the contact area of the crossbeam, minimizing vibrations during machining.
Standard equipment
Electrical equipment cabinet with air conditioning. Chip conveyor (two screw conveyors and one scraper). Ethernet, CF card, USB interface. Automatic lubrication system. Coolant supply system.
Additional options
Motor-spindle 12000 RPM, HSK A100. Tool change system, lever type (24 positions) and chain type (40 positions). Coolant supply system through the spindle. Gearbox. Optical scales (V3320, V4028).
