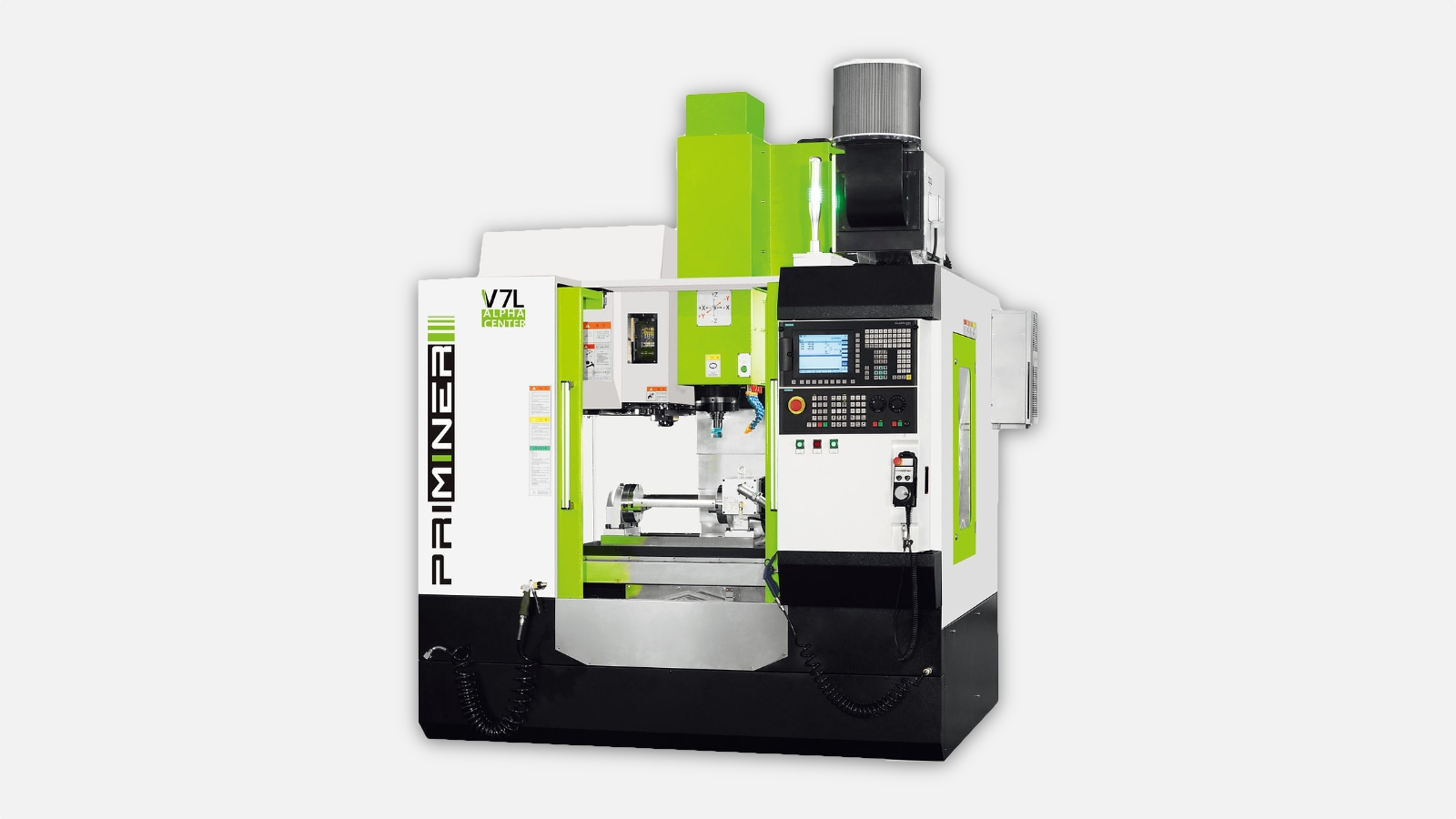

Alpha V7L Machining Center by PRIMINER

Alpha V7L machining center with 3 axes.

Table size900 x 420 mm
T-slot (width x quantity x distance)14 x 3 x 125 mm
Max. load500 kg
Movement along X/Y/Z axes760 / 450 / 520 mm
Distance from spindle face to table surface100 - 620 mm
Distance from spindle axis to column517 mm
Spindle taperSK 40 / BT 40 / CAT 40
Spindle speed10000 rpm
Motor power9 / 22 Siemens, 7.5 / 15 Fanuc
Rapid feed along X/Y/Z axes48 m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 / Ø125 mm
Max. tool weight8 kg
Positioning accuracy0.008 mm
Repeatability0.006 mm
Parameters2200 x 2710 x 2900 mm
Weight4500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The V7L model from PRIMINER is a high-quality milling machine that is capable of providing high performance and precision in processing various materials. This machine is equipped with modern technologies and features that enhance work efficiency and improve product quality.

One of the main features of the V7L model is its high accuracy and stability during operation. The machine is equipped with durable and reliable components that ensure maximum precision and minimal deviations during the processing. As a result, it is possible to achieve high-quality products with minimal processing costs.

The V7L model also offers various operating modes that allow for optimal performance and processing quality depending on the customer’s requirements. In addition, the machine is equipped with special control programs that automate the processing workflow and reduce setup and preparation time.

An important advantage of the V7L model is its high ergonomics and user-friendliness. The machine features a convenient and intuitive control interface, allowing operators to quickly and easily learn how to operate it. Furthermore, the machine has compact dimensions and can be installed in a small area, making it an ideal choice for small production facilities.

Finally, it is worth noting the high reliability and durability of the V7L model. The machine is made of strong and wear-resistant materials, allowing it to serve for many years without losing work quality. Moreover, PRIMINER offers a warranty on its products, providing additional confidence in the quality and reliability of the machine.

Table size900 x 420 mm
T-slot (width x quantity x distance)14 x 3 x 125 mm
Max. load500 kg
Movement along X/Y/Z axes760 / 450 / 520 mm
Distance from spindle face to table surface100 - 620 mm
Distance from spindle axis to column517 mm
Spindle taperSK 40 / BT 40 / CAT 40
Spindle speed10000 rpm
Motor power9 / 22 Siemens, 7.5 / 15 Fanuc
Rapid feed along X/Y/Z axes48 m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 / Ø125 mm
Max. tool weight8 kg
Positioning accuracy0.008 mm
Repeatability0.006 mm
Parameters2200 x 2710 x 2900 mm
Weight4500 kg
Design Features

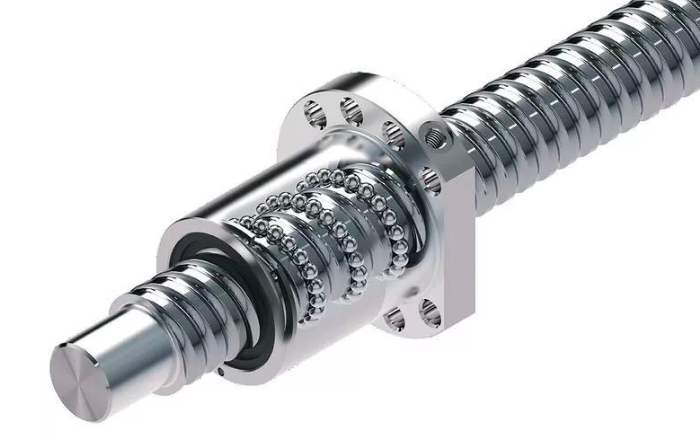

Ball screw
C3 class ball screws provide the highest precision and durability.
Cast iron
Tempered cast iron with stress relief to ensure structural stability without deformation.
Standard configuration
Fully enclosed working area protection. Electrical equipment cabinet with air conditioning system. Rigid threading. Ethernet, CF card, USB interface. Automatic lubrication system.
Additional options
Spindle with direct drive 12000 RPM. Spindle cooling system and coolant supply through the spindle. Chip conveyor. Oil separator from coolant. Workpiece setting and alignment sensor. Tool sensor. Rotary table (4th axis). Tilt rotary table (4th/5th axis).
