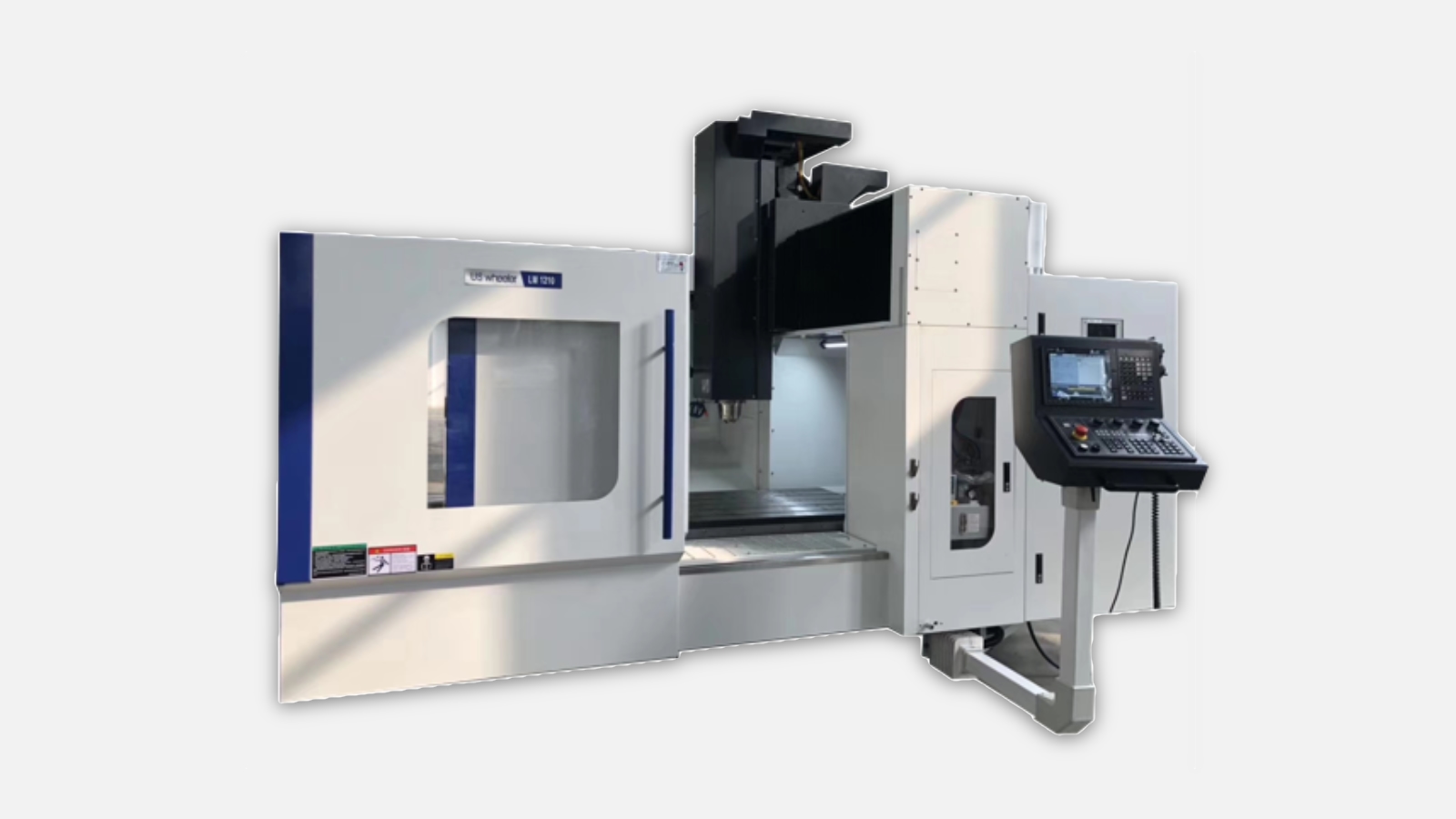

LM Double Column Series Portal Milling Machines

CNC milling machines models: LM 1210L, LM 1613L, LM 2015, LM 2018, LM 3015, LM 3023.

Movement along X/Y/Z axis LM 1210L12001000500 mm
Table size1300*900 mm
Maximum table load2000 kg
Width/spacing of T-slot18165 mm
Spindle speed10,000 rpm
Spindle motor power1115 kW
Spindle torque96 Nm
Tool change time2.5 sec
Tool magazine24 pcs
Maximum tool diameter (full)/(without neighboring tools)Ф80/Ф150
Positioning accuracy0.01 mm
Unit of measurement for positioning accuracy0.006 mm
Parameters3050*2100*2700 mm
Weight9200 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The LMdoubleColumn model is a high-precision milling machine from the renowned Chinese manufacturer US WHEELER. It is designed for processing various materials, including metal, plastic, wood, and others.

One of the main features of this model is its double-column design, which provides high rigidity and stability during machining. As a result, the machine is capable of producing precise and high-quality machining of parts, even at high speeds.

The LMdoubleColumn is equipped with modern controls that ensure high machining accuracy. The machine features numerical control (CNC), which allows programming various machining operations and managing them via a computer.

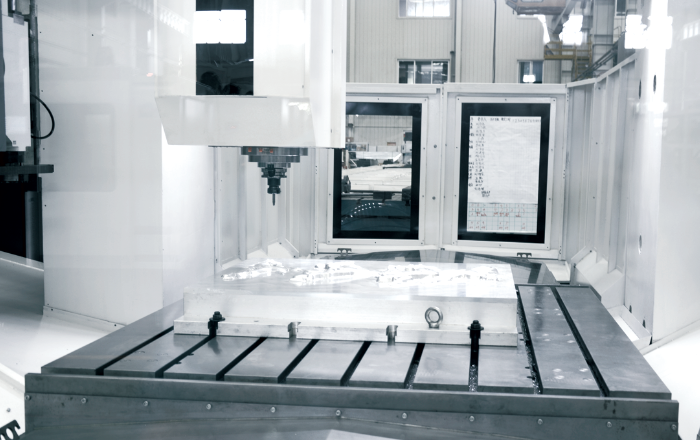

For operator convenience, the machine has a spacious working area and provides easy access to the components. Additionally, it is equipped with a cooling system that helps maintain the temperature during processing and prevents overheating and deformation of parts.

The LMdoubleColumn is a reliable and powerful tool for producing quality components. It is ideal for use in various industries, including aerospace, mechanical engineering, electronics, etc. If you are looking for a high-precision and reliable milling machine, the models: LM 1210L, LM 1613L, LM 2015, LM 2018, LM 3015, LM 3023 from US WHEELER are an excellent choice.

Movement along X/Y/Z axis LM 1210L12001000500 mm
Table size1300*900 mm
Maximum table load2000 kg
Width/spacing of T-slot18165 mm
Spindle speed10,000 rpm
Spindle motor power1115 kW
Spindle torque96 Nm
Tool change time2.5 sec
Tool magazine24 pcs
Maximum tool diameter (full)/(without neighboring tools)Ф80/Ф150
Positioning accuracy0.01 mm
Unit of measurement for positioning accuracy0.006 mm
Parameters3050*2100*2700 mm
Weight9200 kg
Design Features
Number of coordinates
In these models, the number of axes in the standard configuration is 3 pcs.
CNC System
In the basic configuration, the CNC system is represented by Siemens. Optionally, Fanuc and Mitsubishi CNC systems can be installed.
Additional Options
An additional option to install a 4th axis and a 5th axis. Measurement device, referencing, and tool breakage control, parts. Chip conveyor. Optical scales. Dialog programming systems for the machine. Coolant separator. Oil mist filtration system KAMA (Russia). Hydraulic unit 7Ocean (Taiwan).
