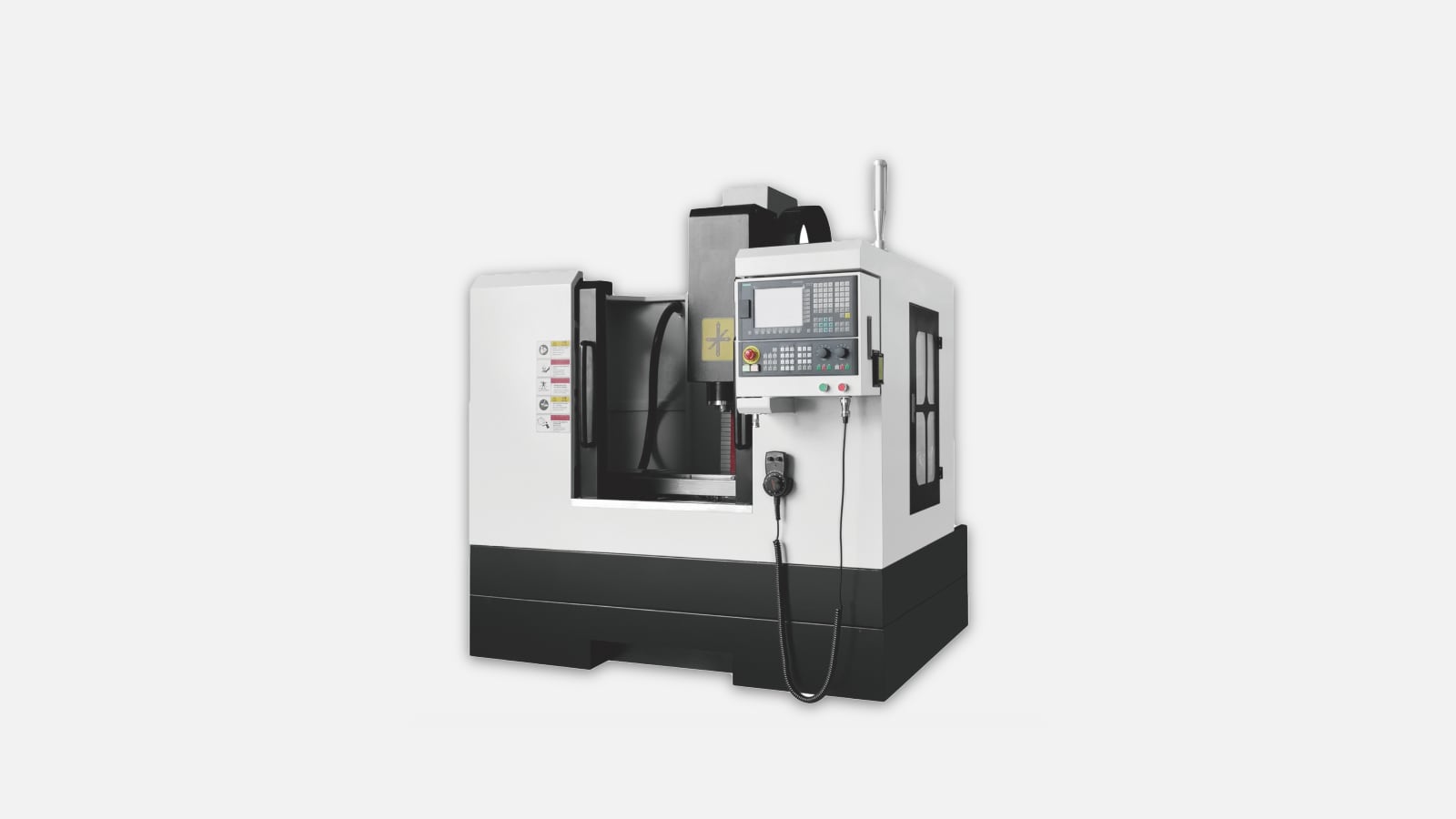

CNC Milling Machine BLIN BL-Y25

CNC Milling Machine BLIN BL-Y25.

Positioning accuracy± 0.01 mm
Spindle typeBT40
Spindle rotation speed6000 rpm
Distance from spindle nose to table surface380 mm
Table size700 x 260 mm
Repeatability accuracy± 0.008 mm
Feed rate15 m/min
T-slots on table3 (pcs) / 14 (width) / 63 (gap)
Distance from spindle axis to column250 mm
Maximum feed rate (X/Y/Z)6 ~ 10 m/min
Spindle motor power2.2 kW
Travel on XYZ axes400250280 mm
Parameters1510x1200x2010 / 1760x1840x2010 mm
Weight1300/1500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

BL-Y25 is a high-precision milling machine designed for processing both metal and non-metal products. With its help, you can achieve high-quality and precise parts, making it an ideal choice for industrial enterprises and workshops.

One of the main features of the BL-Y25 model is its high accuracy and reliability. The machine is equipped with a high-precision spindle that ensures stable operation and processing accuracy. As a result, you can obtain perfectly aligned and precisely fitted parts, which is particularly important when working with metal workpieces.

Additionally, the BL-Y25 has a large working surface, allowing for the processing of parts of various sizes. You can work with workpieces up to 1300 mm in length and 250 mm in width, making it a versatile choice for a wide range of tasks.

Another advantage of the machine is its high operating speed. With it, you can process parts at high speeds, significantly reducing production time. Furthermore, the machine boasts high productivity, allowing for the processing of a large number of parts in a short period.

Finally, the BL-Y25 is very easy to use and maintain. It features user-friendly controls that allow for quick switching between operating modes and adjusting necessary parameters. Additionally, the machine has a sturdy and reliable construction, making it resistant to wear and suitable for long-term use.

Positioning accuracy± 0.01 mm
Spindle typeBT40
Spindle rotation speed6000 rpm
Distance from spindle nose to table surface380 mm
Table size700 x 260 mm
Repeatability accuracy± 0.008 mm
Feed rate15 m/min
T-slots on table3 (pcs) / 14 (width) / 63 (gap)
Distance from spindle axis to column250 mm
Maximum feed rate (X/Y/Z)6 ~ 10 m/min
Spindle motor power2.2 kW
Travel on XYZ axes400250280 mm
Parameters1510x1200x2010 / 1760x1840x2010 mm
Weight1300/1500 kg
Design Features
Cast iron frame
The BL-Y25 3-axis milling machining center features a hardened cast iron frame with stress relief and C3 class ball screws, ensuring precision and durability.
Functions
The model includes fully enclosed splash/chip protection, a BT 40 spindle with a speed of 6000 RPM (Japanese inverter), and an automatic lubrication system, as well as a range of other useful features.
CNC System
With a SIEMENS 808D controller in an IP65 enclosure, convenient for data loading via USB port, featuring mechanical, "hot", and software keys for simple and intuitive control, a front panel with clamp mounting and modular design
Axes
The BL-Y25 CNC milling machine is a semi-automatic 3-axis (4-axis optional) machining center that meets the standards of metal cutting processes thanks to high-quality components and high precision, aimed at entry-level enterprises.
